Mounting and connecting the device
3.2 Mounting the device
SIMATIC IPC127E
30 Operating Instructions, 01/2019, A5E44296915-AA
3.2.5 Vertical mounting standard rail
Upright mounting on a standard rail is suitable for vertical mounting of the device. The
corresponding mounting bracket allows mounting that requires less space than wall
mounting.
Requirement
● Mounting bracket
Note
Only use the supplied screws for fastening the mounting bracket. Longer screws can
damage the inside of the device.
● A T10 screwdriver
● Two anchors and two screws
Procedure – Vertical mounting standard rail

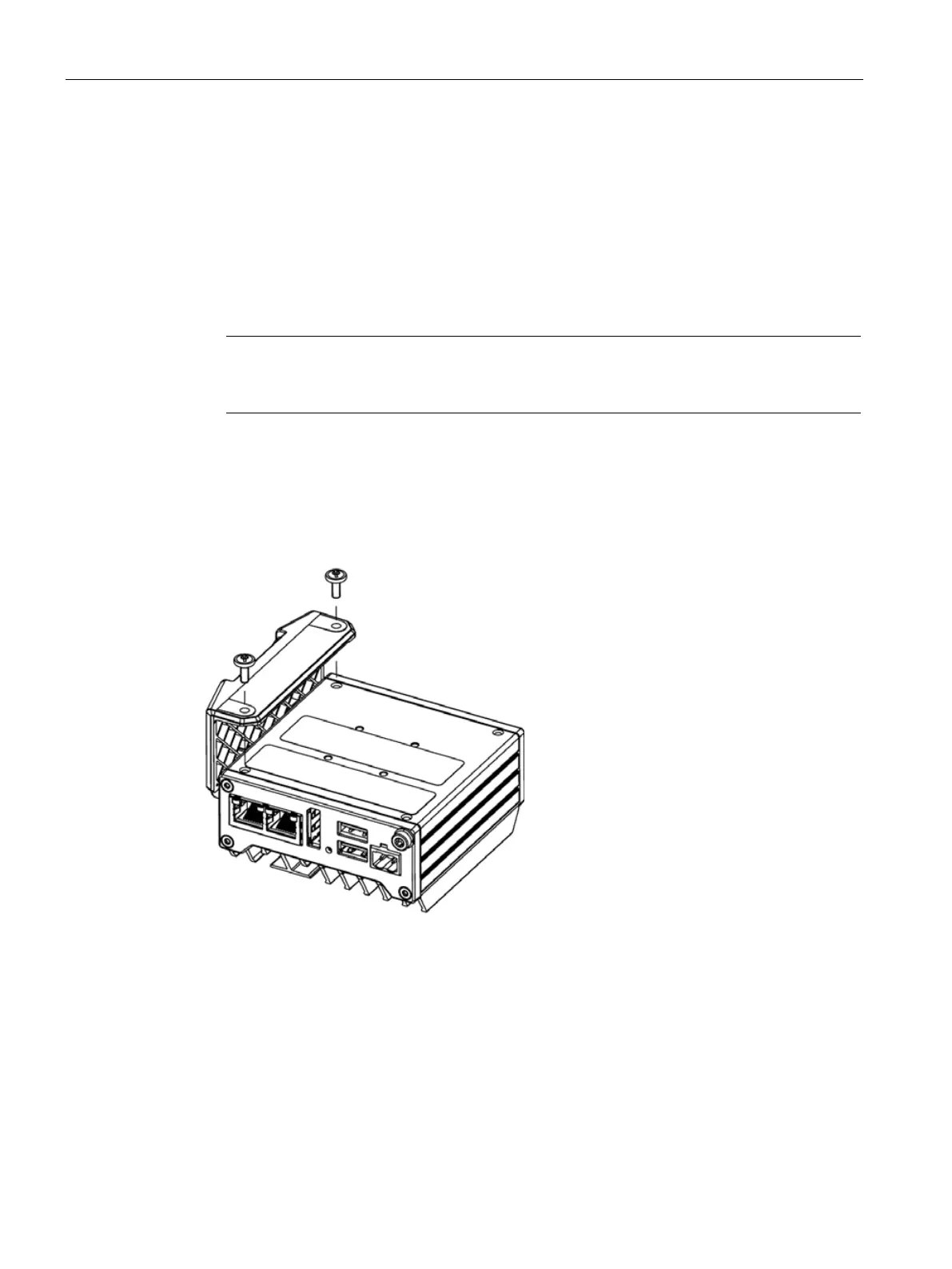

Place the mounting bracket on the rear of
the device.
Fasten the mounting bracket with the two
supplied screws.
Place the device with the mounting brack-
ets onto the mounting rail.
