Siemens SIMATIC IPC127E

Mounting and connecting the device
3.3 Connecting the device
SIMATIC IPC127E
Operating Instructions, 01/2019, A5E44296915-AA
35
Procedure
1.
Switch off the 24 V DC power supply.
2.

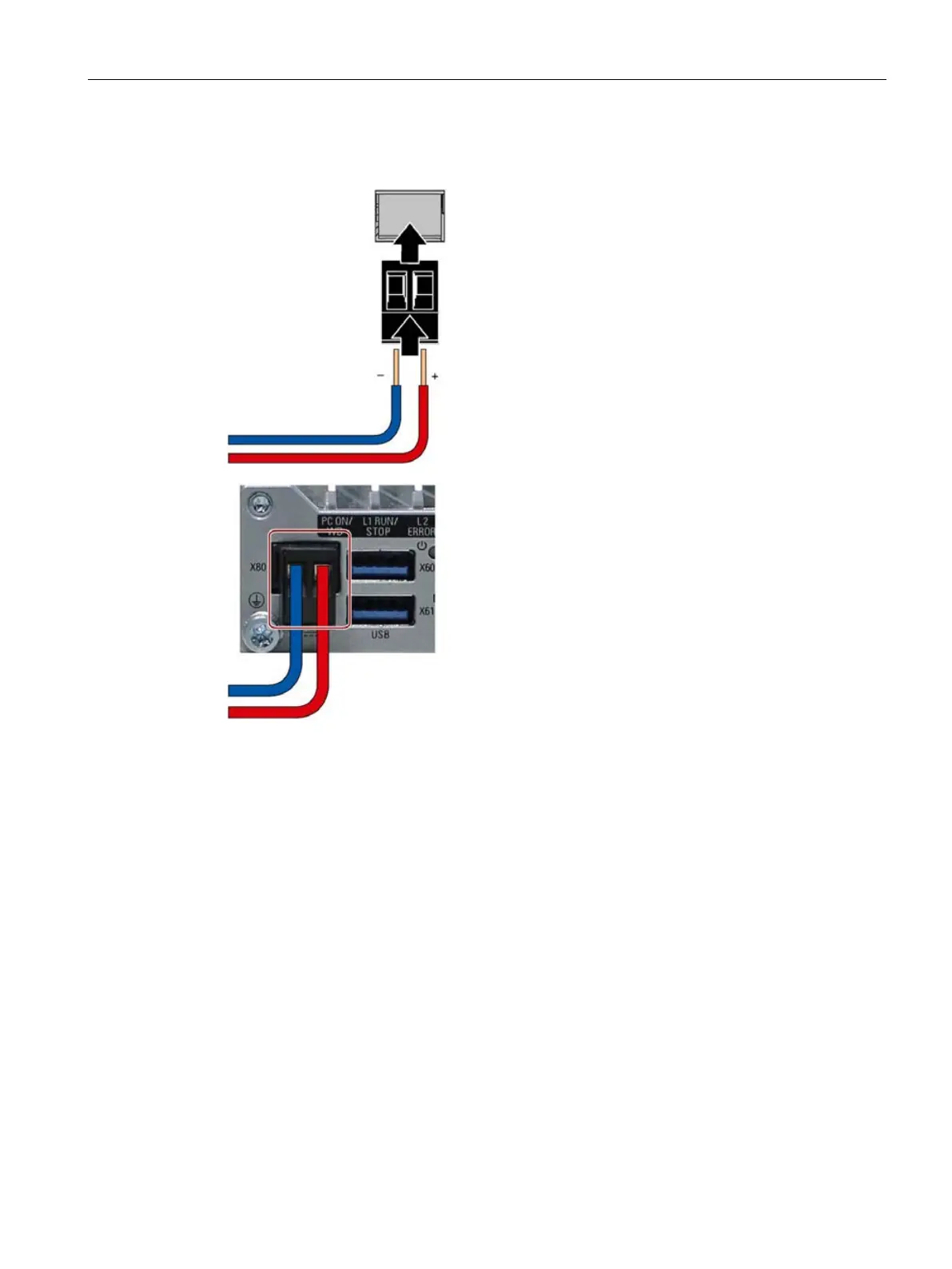

Connect the wires of the power supply as
shown.
3.
Insert the terminal at the indicated position.
