Device maintenance and repair
5.4 Replacing the SSD
SIMATIC IPC127E
Operating Instructions, 01/2019, A5E44296915-AA
49
Tools
You can change the battery with the following tools:
● T20 screwdriver
● T10 screwdriver
● T8 screwdriver
● Allen wrench, width across flats 1.5 mm

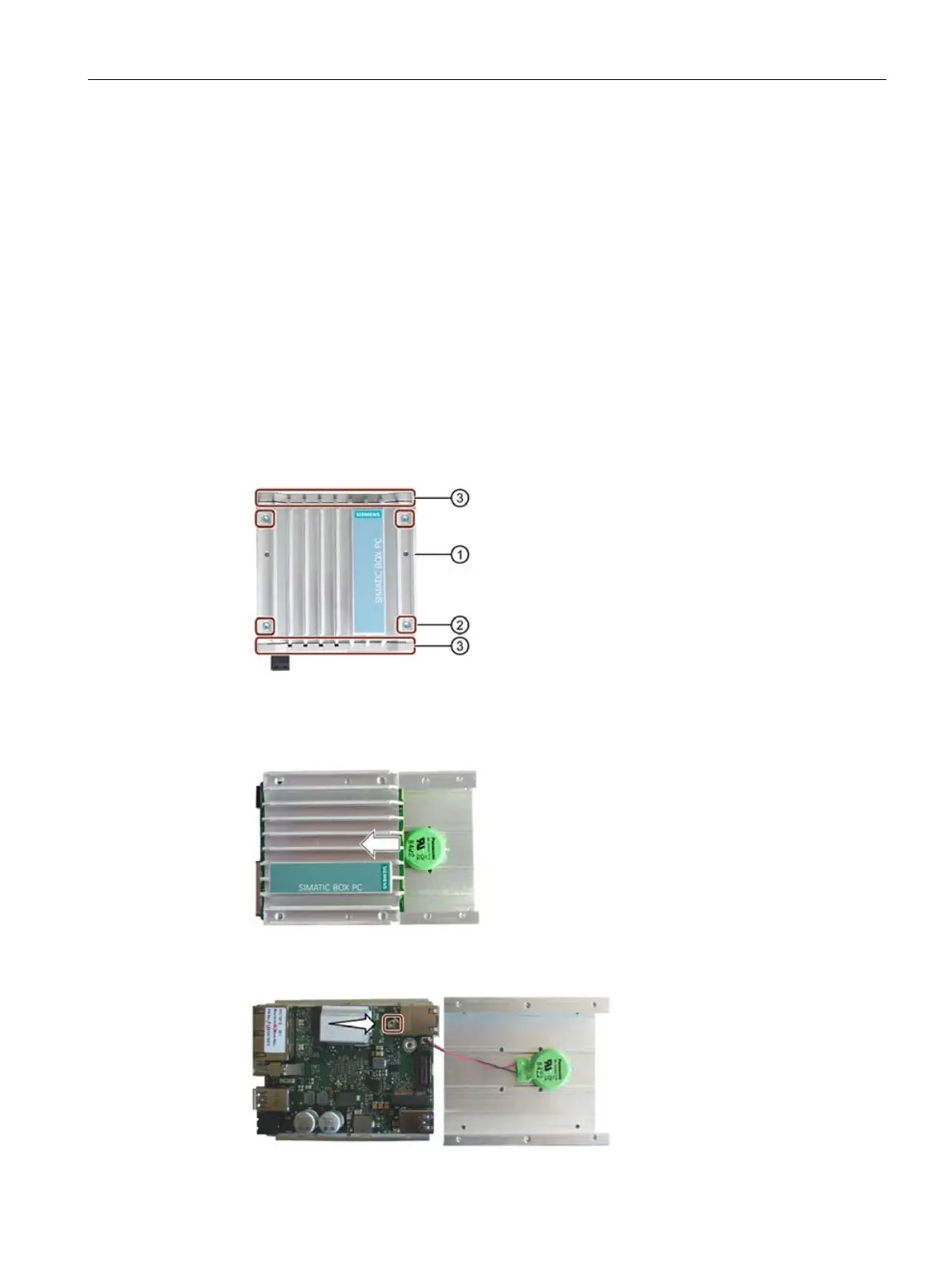

Removing the SSD
To remove the SSD, follow these steps:
1. Remove the protective conductor connection.
2. Remove the screws on the two connection sides
③ and remove the covers.
3. Remove the threaded pin
① on the heat sink.
4. Remove the remaining screws
② on the heat sink.
5. Slide the heat sink out in the direction of the arrow, and rest the enclosure part on the
cooling fins.
6. Remove the marked screw and carefully pull out the SSD from the plug in the direction of
the arrow.
