Expanding and assigning parameters to the device
6.2 Installing the M.2 Module
SIMATIC IPC277G
54 Operating Instructions, 08/2021, A5E50059956-AA

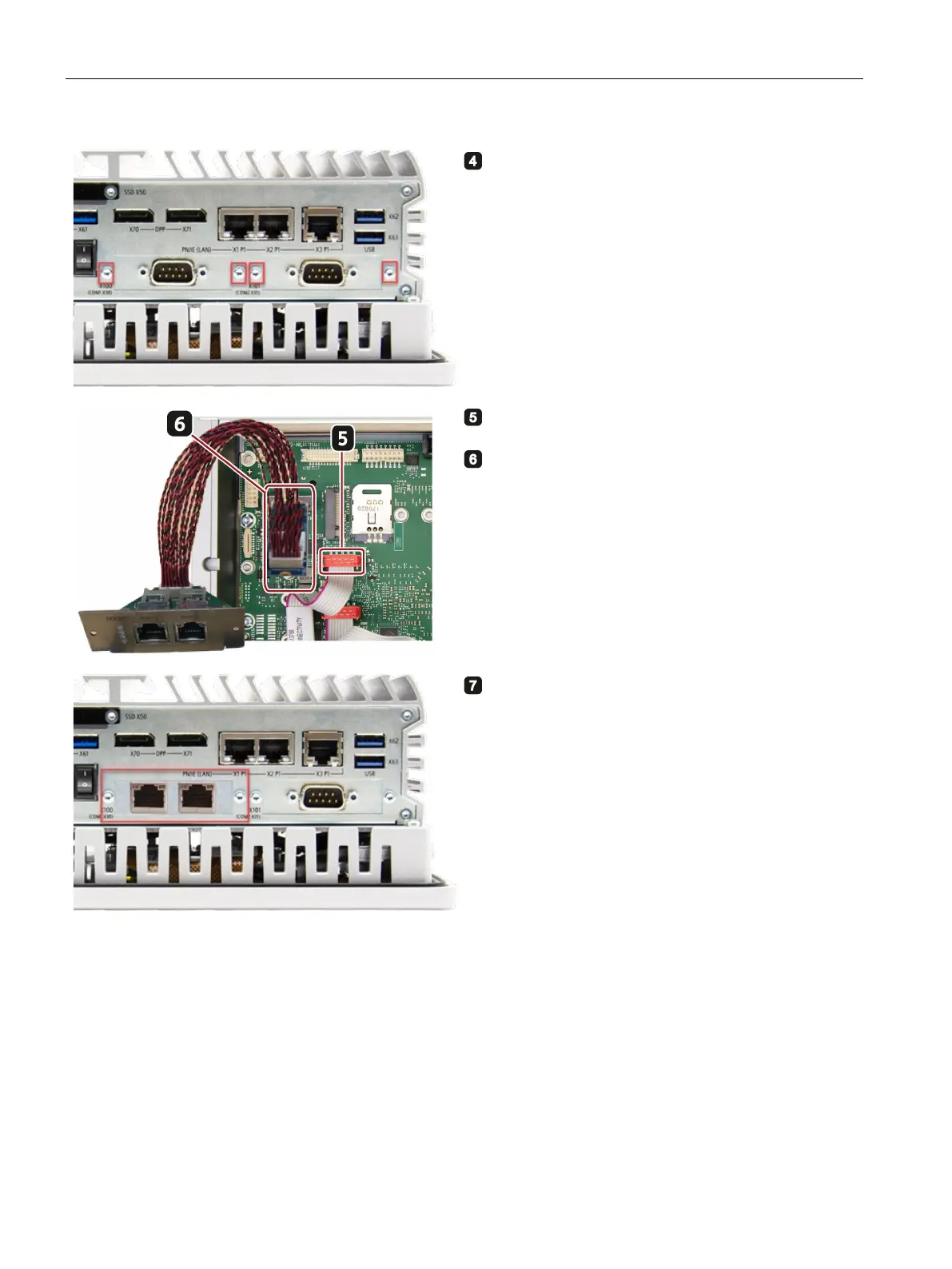

Unscrew the marked screws for fixing the COM
interface.
Remove the COM interface and its jumpers on the
motherboard.
Follow above steps to install the M.2 Module with
an additional interface-card on the X100 or X101
interfaces slot.
Note: The cable length of the M.2 Module should
not be shorter than 100 mm and no longer than
200 mm.
Secure the additional interface-card in the position
of the COM interface with screws.
Procedure - Removing the M.2 Module
Follow the above steps in reverse order to remove the M.2 Module.
