Configuring the Computing Unit in BIOS Setup
Release 04/02
5-13
Panel PC 670 Computing Unit, Equipment Manual
Submenu ”Hardware Options”
The following submenu appears when you select the “Hardware Options” field in
the main menu:
PhoenixBIOS Setup Utility
Item Specific Help
PCI – MPI / DP:
ESC Exit
Select Item
Select Menu
+ / –
Select
Change Values
Sub-Menu
F9
F10
Setup Defaults
Save and Exit
Enter
Help
F1
Main
[ Enabled ]
Hardware Options
Onboard Ethernet:
[Enabled]
Enable or disable the
PCI - Multi Point
Interface (MPI/DP)
Ethernet Address:
08000624xxxx
PS/2 Mouse: [Enabled]
Legacy USB Support: [Disabled]
Cardbus/PCMCIA Slot: [Enabled]
SafeCard functions:
[Enabled]
CRT / LCD selection: [SIMULTAN]
LCD-Screensize: [Expand]
DSTN Contrast:
[154]
Fan Control: [Enabled]
LAN Remote Boot: [Disabled]

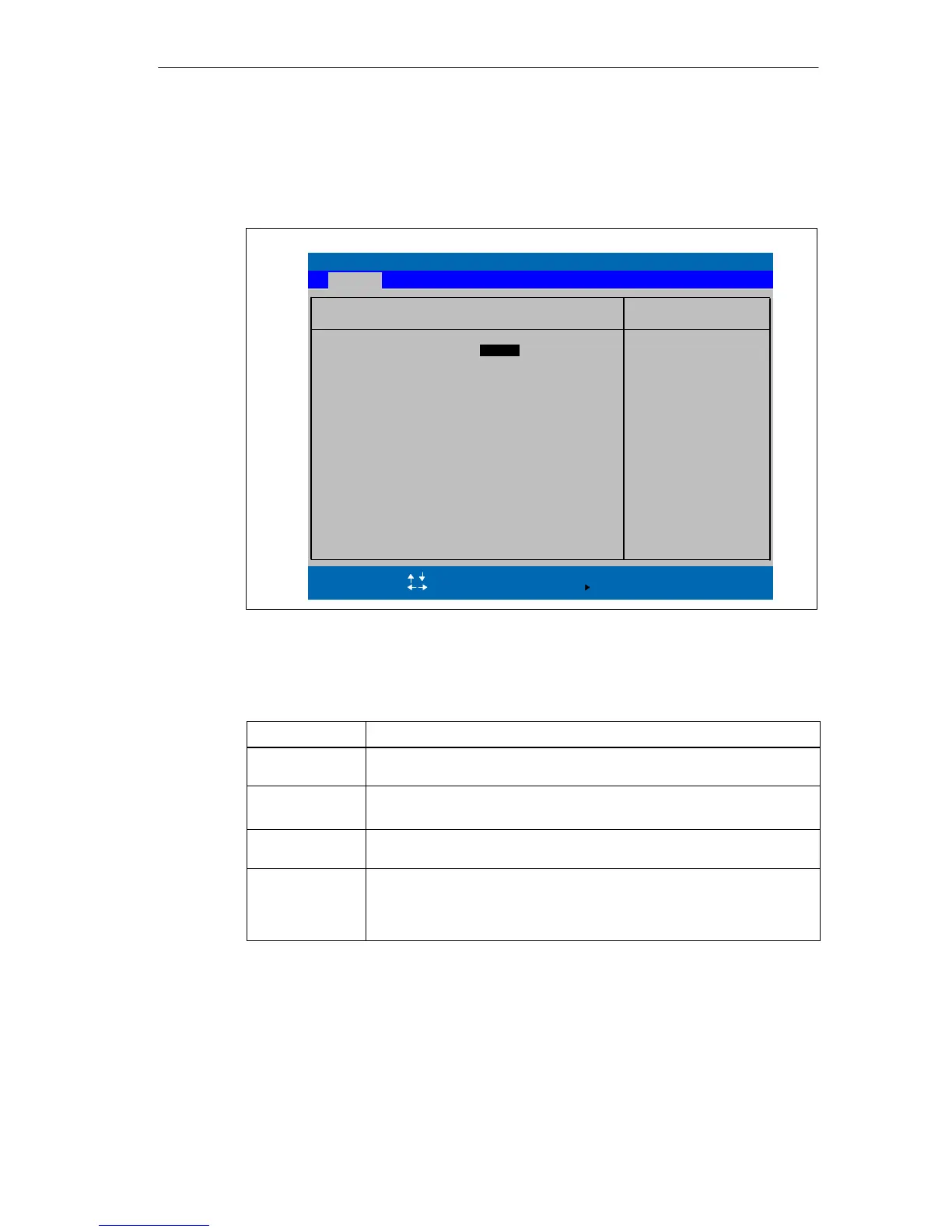

Figure 5-8 ”Hardware Options” Submenu
The parameters of the interfaces present on the basic module are set here.
Entry Meaning
PCI-MPI/DP Enables the CP5611-compatible MPI/DP interface. The recourses are
managed by the BIOS PCI plug and play mechanism.
On Board
Ethernet
[Enabled] The ethernet port on the motherboard is enabled.
[Disabled] The ethernet port on the motherboard is disabled.
Ethernet
Address
The individual ethernet address is displayed here.
LAN Remote
Boot
[Enabled] It is possible to boot over a connected
LAN. The respective boot source is displayed as
Intel Boot-Agent in the boot sequence menu
[Disabled] Booting using LAN is not possible.
