Hardware Information
Release 04/02
7-17
Panel PC 670 Computing Unit, Equipment Manual
Ethernet RJ45 connection
The Ethernet-RJ45 interface of the computing unit is assigned as follows:
LED greenLED yellow
1 8

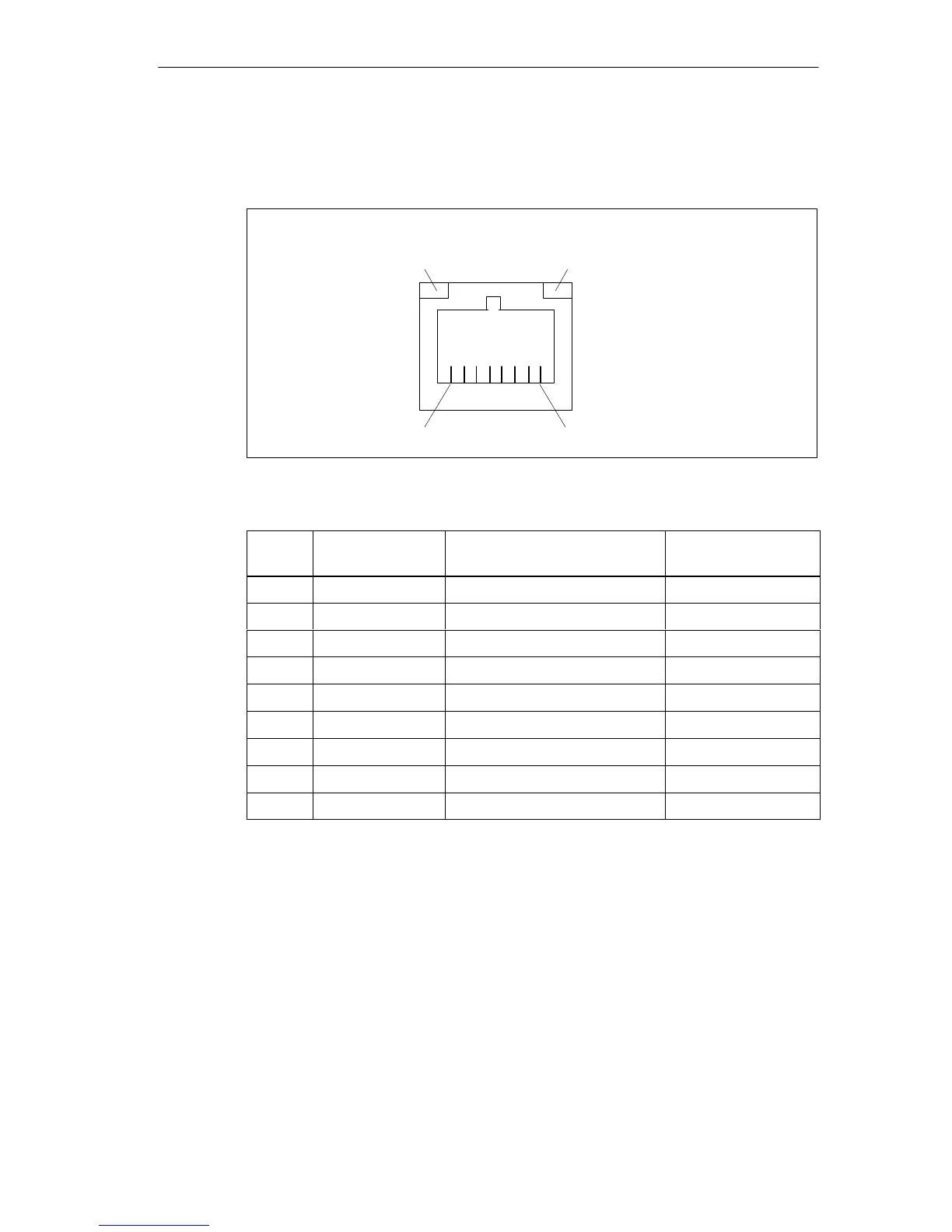

Figure 7-8 Ethernet port
Pin
No.
Short Name Meaning Input/Output
1 TD+ Transmission data Output
2 TD– Transmission data Output
3 RD+ Received data Input
4, 5 * SYMR Internal 75 Ω output -
6 Received data Input
7, 8 * SYMT Internal 75 Ω output -
S Shield -
LED green Connection -
LED yellow Activity -
* Not required for data transmission
