AS and OS expansions
7.2 Program changes
Compendium Part D - Operation and Maintenance (V9.0)
90 Operating Manual, 02/2018, A5E43228948-AA
To use the "Selective Download" function, it is recommended to enable the "Chart-based
insertion" option in the "Properties Chart Folder" dialog.
With the "chart-based insertion" option activated, an appropriate runtime group is
automatically created in the OB 100 when instantiating blocks with startup characteristics. All
block instances in a chart that have startup characteristics are integrated in the cyclic
runtime groups and in the runtime group assigned to this chart in OB 100.
With PCS 7 projects created from version V8.1 onwards, the "chart-based insertion" option is
activated automatically in the properties of the chart folder.
Starting with PCS 7 Version V8.2, the runtime groups are created automatically for each
chart for an upgraded project.

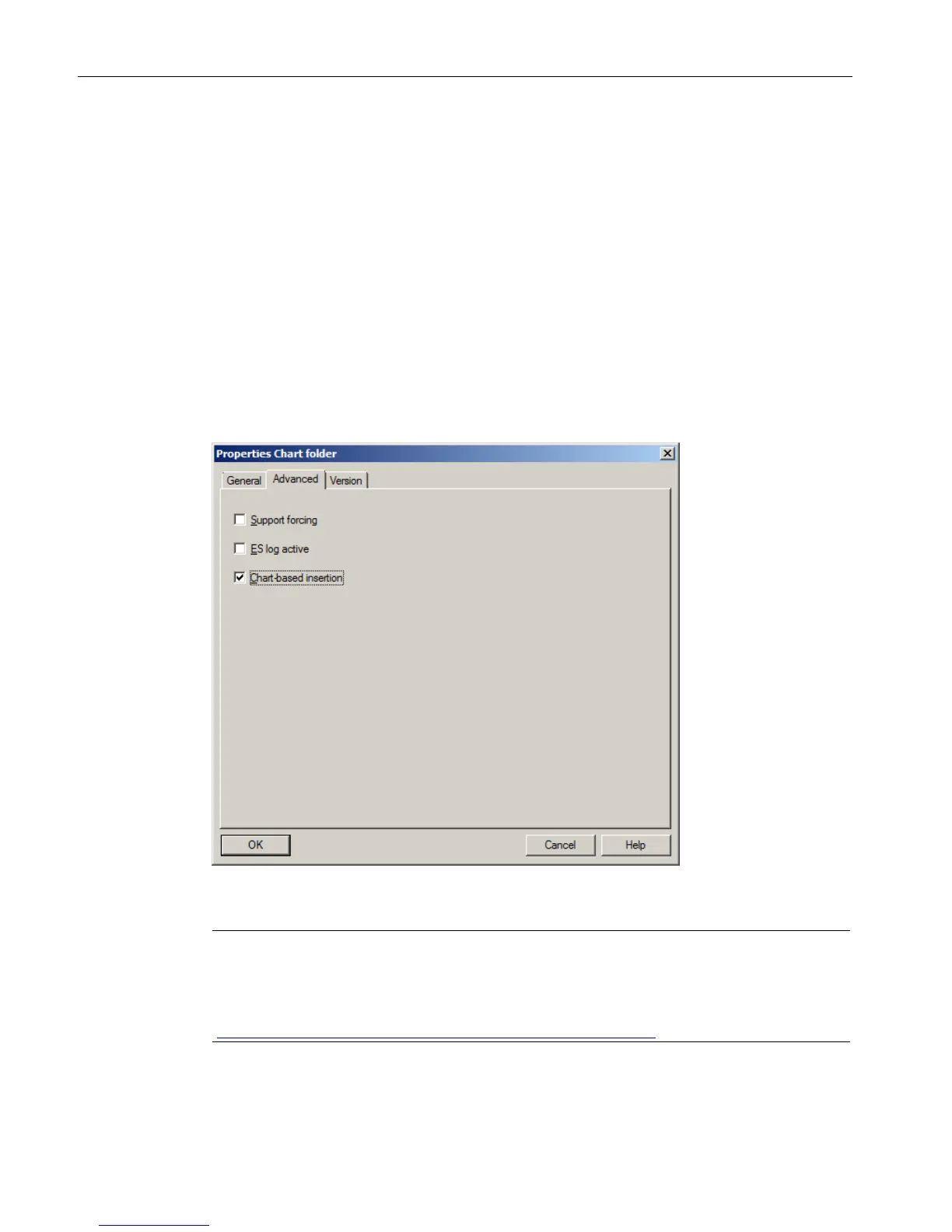

To activate this function select the relevant chart folder and select the "Object Properties >
Advanced" shortcut menu.
Inserting the new blocks of a chart in the runtime group of this chart reduces the number of
dependent charts, which would also need to be included in the selective download.
Note
You can find information about using the "Selective download" function and switching to the
imported sequence model in the FAQ "How do you use the "Selective Download" function in
migrated PCS 7 proje
