Readers
5.2 SIMATIC RF615R
SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
111
5.2.4 Configuration/integration
An Ethernet interface is available for integrating the device into system
environments/networks. RF615R can be configured via the Ethernet interface and with direct
connection to the PC. You can configure and program the reader using the following tools:
● using STEP 7 Basic/Professional (TIA Portal)
● using Web Based Management (WBM)
● using OPC UA or XML based user applications
Simple process controls (e.g. a traffic signal) can be implemented directly using the reader
via the digital input and output.

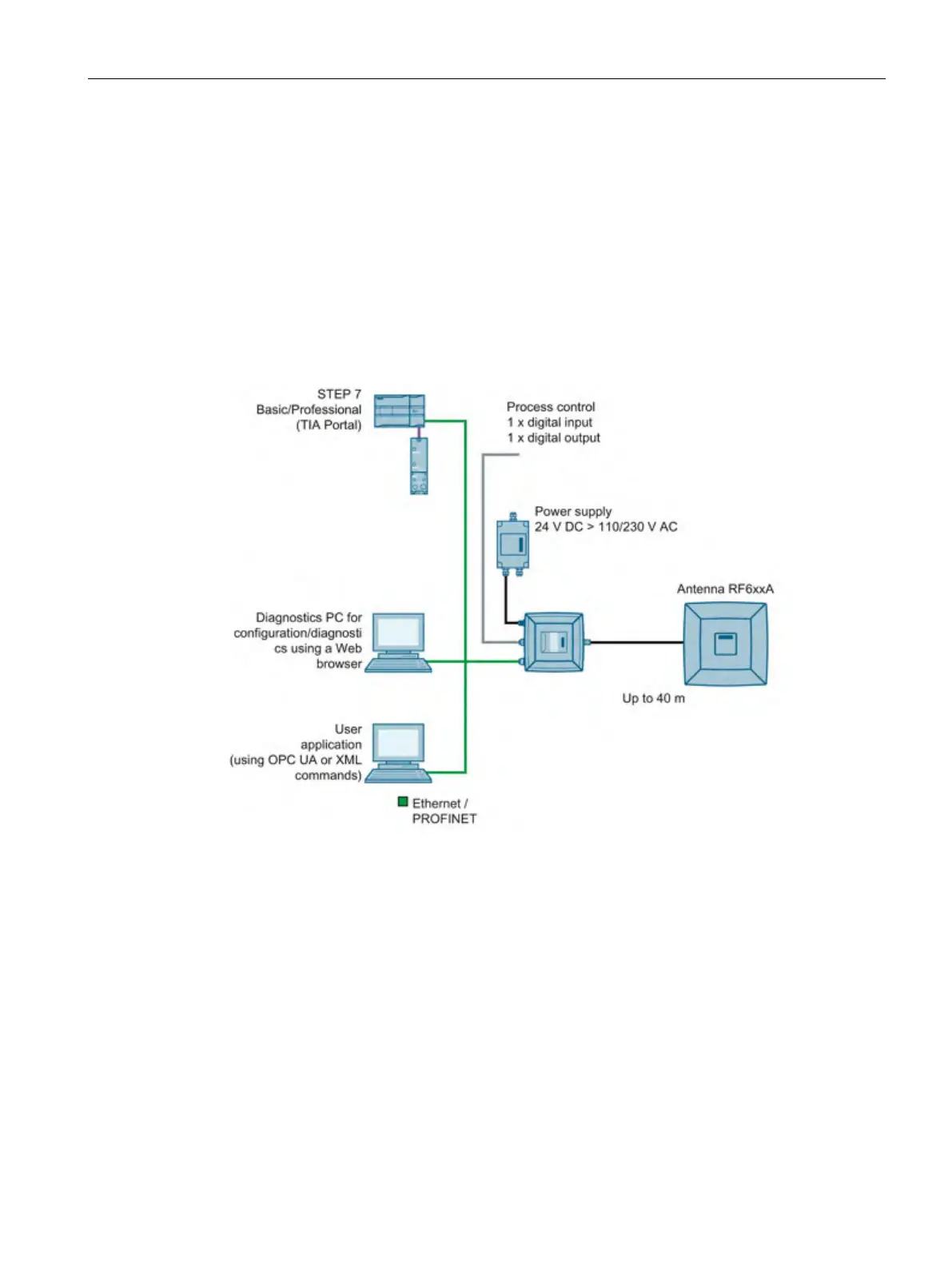

Figure 5-8 Overview of configuration of the RF615R reader
