Readers
5.3 SIMATIC RF650R
SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
135
5.3.4 Configuration/integration
An Ethernet interface is available for integrating the device into system
environments/networks. The RF650R can be configured via the Ethernet interface and with
direct connection to the PC. You can configure and program the reader using the following
tools:
● using Web Based Management (WBM)
● using OPC UA or XML based user applications
Simple process controls (e.g. a traffic signal) can be implemented directly using the reader
via four digital inputs and outputs.

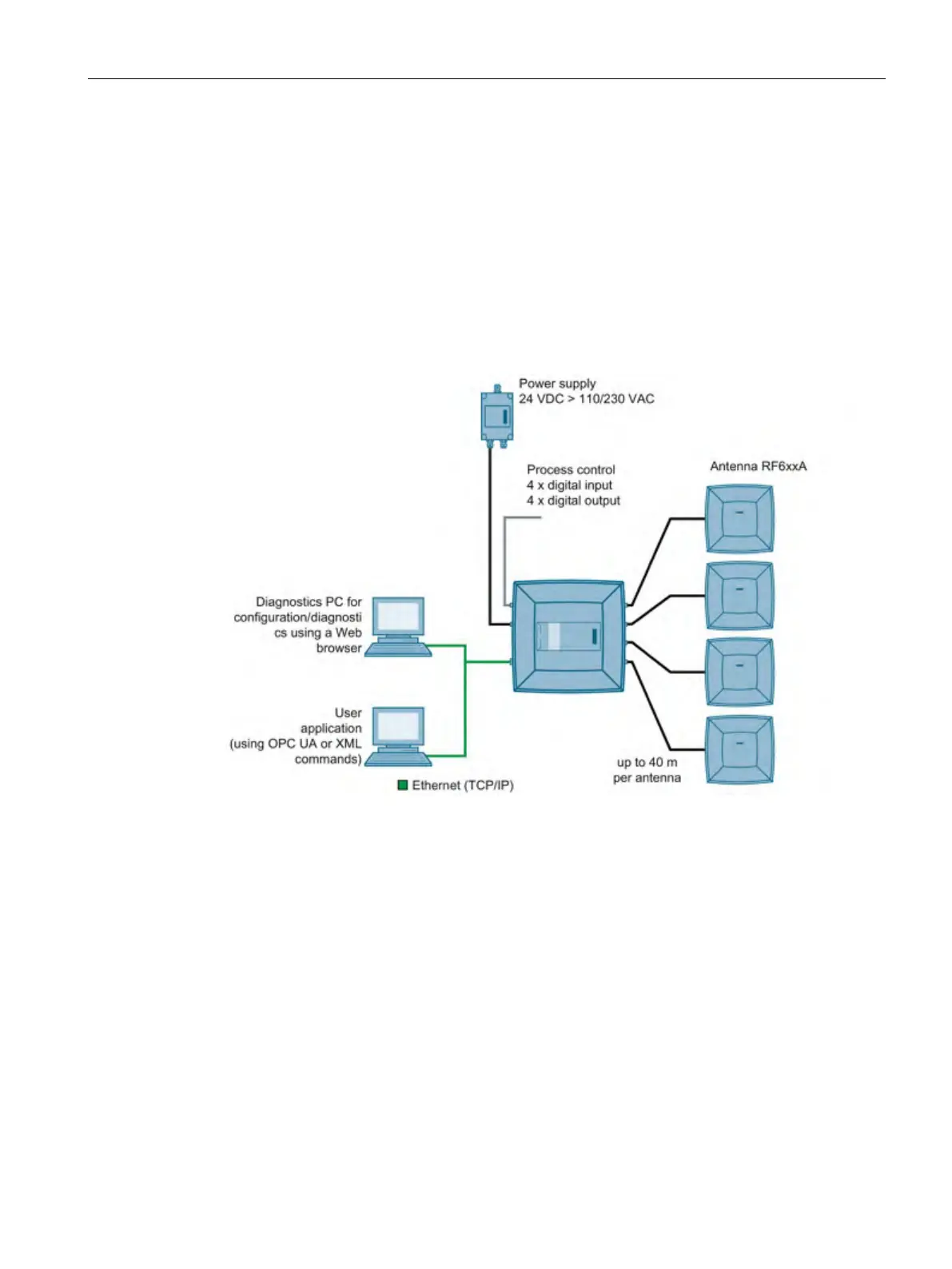

Figure 5-17 Overview of configuration of the RF650R reader
