Accessories
10.1 Wide-range power supply unit for SIMATIC RF systems
SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
469
Degree of protection
The wide-range power supply unit for SIMATIC RF systems meets degree of protection
IP67.
● Dust-tight: No ingress of dust
● Protected against harm from temporary submersion in water: Water must not enter in
amounts that can cause damage, if the housing is immersed in water 1 m deep for 30
minutes.
All information applies only when connected and locked. The assignment of degrees of
protection is subject to standardized test methods. If no secondary cables are connected,
close the secondary sockets with a protective cap.

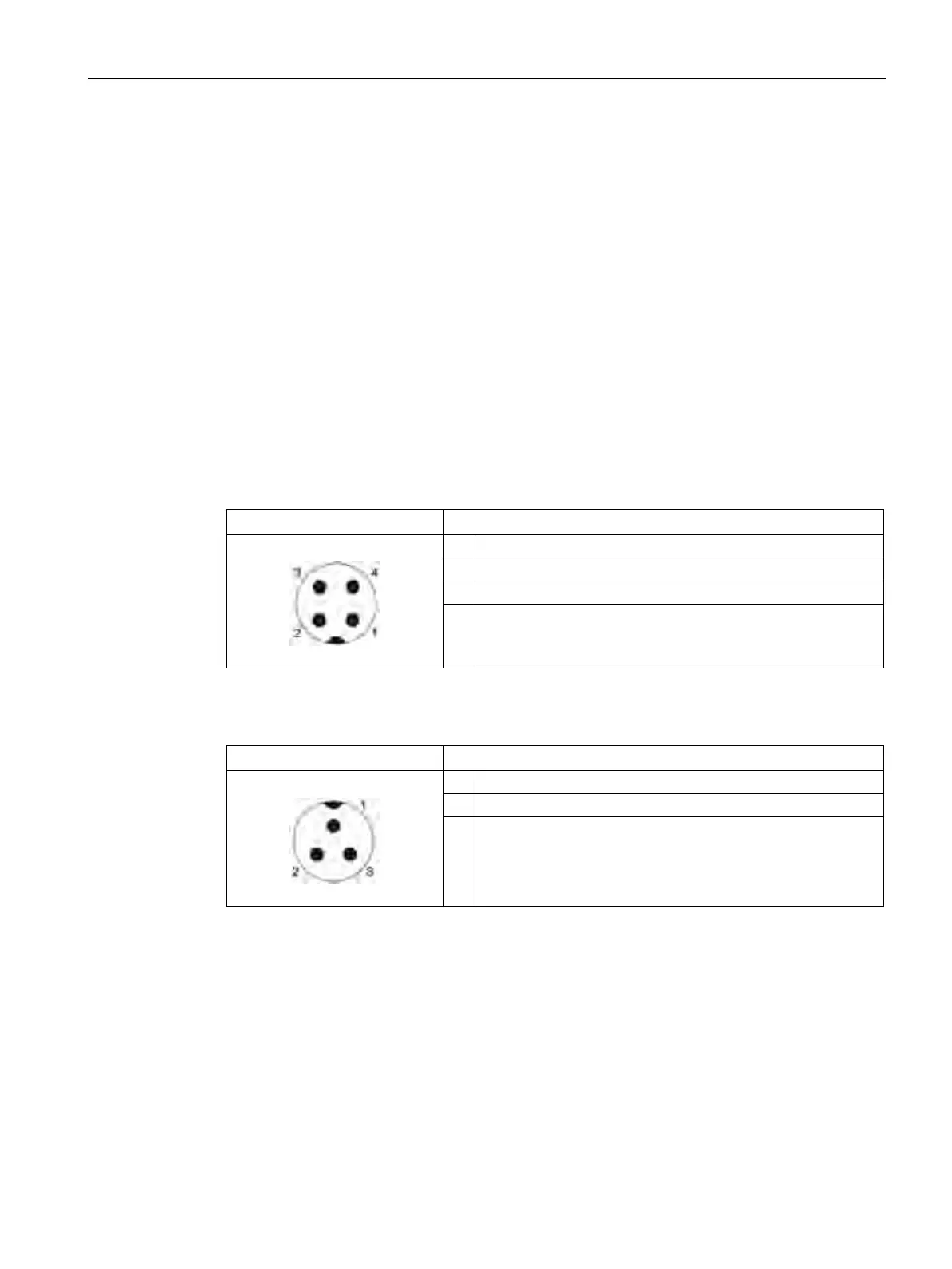

10.1.6 Pin assignment of DC outputs and mains connection
Table 10- 4 Pin assignment of the DC outputs
2 +24 VDC
4 Ground (0 V)
Table 10- 5 Pin assignment of the mains connector
2 L (100 … 240 VAC)
3 N (100 … 240 VAC)
