Transponder
7.5 SIMATIC RF690L Smartlabel
SIMATIC RF600
364 System Manual, 11/2018, J31069-D0171-U001-A21-7618
7.5 SIMATIC RF690L Smartlabel
7.5.1 Characteristics
The SIMATIC RF690L High Temp Smartlabel is a passive and maintenance-free data
carrier. It operates based on the UHF Class 1 Gen 2 technology and is used to store the
"Electronic Product Code" (EPC). The transponder also has a user memory.
The SIMATIC RF690L can also be mounted on metal.

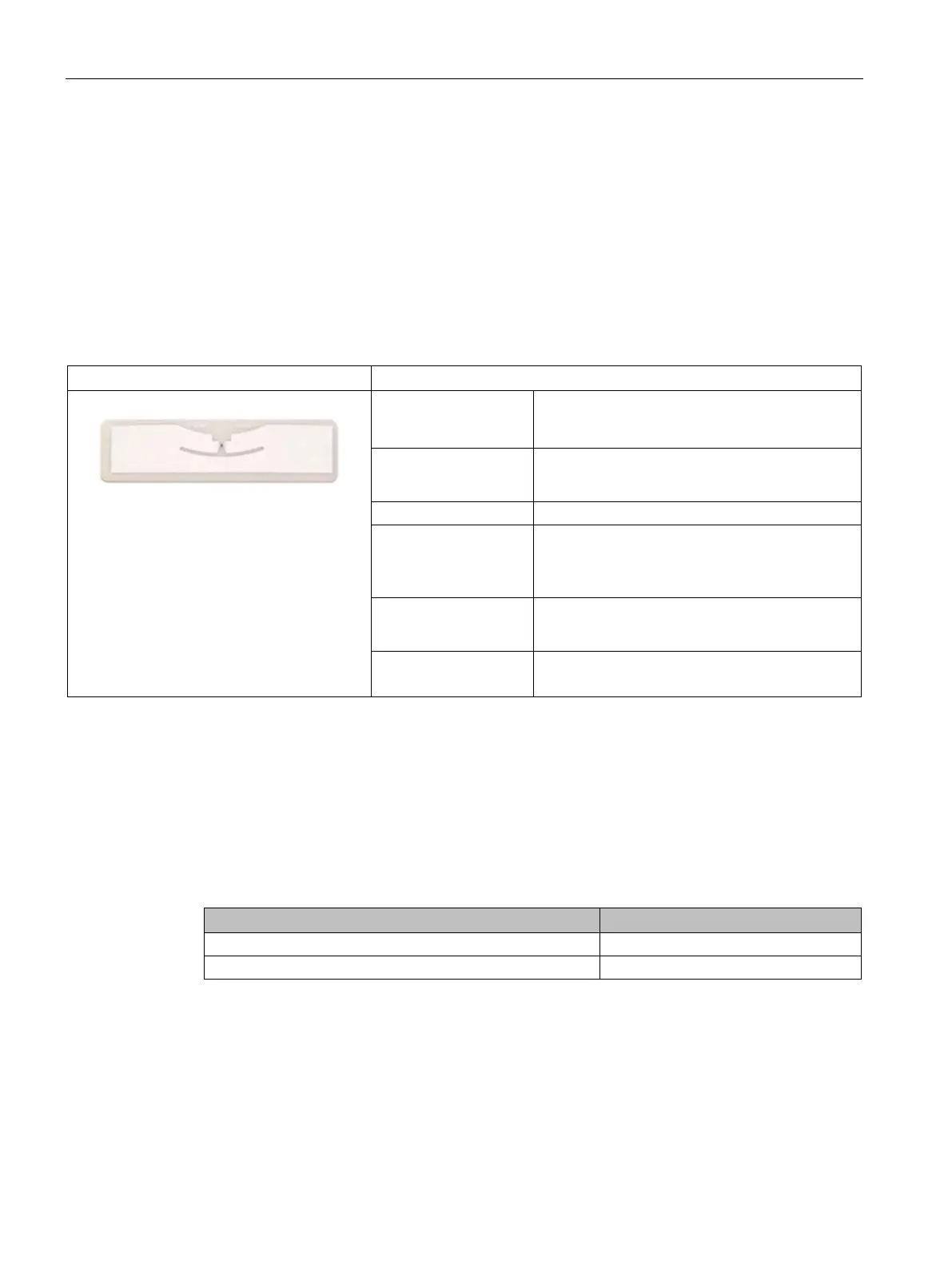

Smartlabel SIMATIC RF690L
Area of application
Heat-proof UHF label for a wide range of possible
applications, for example, on metal or with high
temperatures up to +160 °C
Frequency range
• ETSI: 865 to 868 MHz
• FCC: 902 to 928 MHz
According to ISO 18000-63
Memory
• EPC: 8 ... 60 bytes / 64 ... 480 bits
1)
• User memory: 16 ... 64 bytes / 128 ... 512 bits
1)
Read range
• Max. 5.0 m on non-metallic surface
2)
• Max. 2.4 m on metal
2)
Mounting Self-adhesive
Suitable for mounting directly on metal.
The EPC memory has a default size of 96 bits. When necessary, the EPC memory size can be expanded to 480 bits in
steps of 16 bits at the cost of the user memory.
2)
Depending on the environment, the employed reader/the antennas and the set power
7.5.2 Ordering data
Table 7- 16 Ordering data RF690L
Delivery format
SIMATIC RF690L smart label is supplied in the following form:
● 400 smart labels per packaging unit: 400 labels on one roll
Minimum order quantity: 1 packaging unit (400 units)
