Transponder
7.10 SIMATIC RF625T
SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
393
7.10.2 Ordering data
Table 7- 34 Ordering data RF625T
SIMATIC RF625T (FCC) 6GT2810-2EE01
Delivery format
SIMATIC RF625T is supplied in the following form:
● 10 transponders per packaging unit
Minimum order quantity: 1 packaging unit (10 units)
7.10.3 Planning the use
7.10.3.1 Optimum antenna/transponder positioning with planar mounting of the transponder on
metal

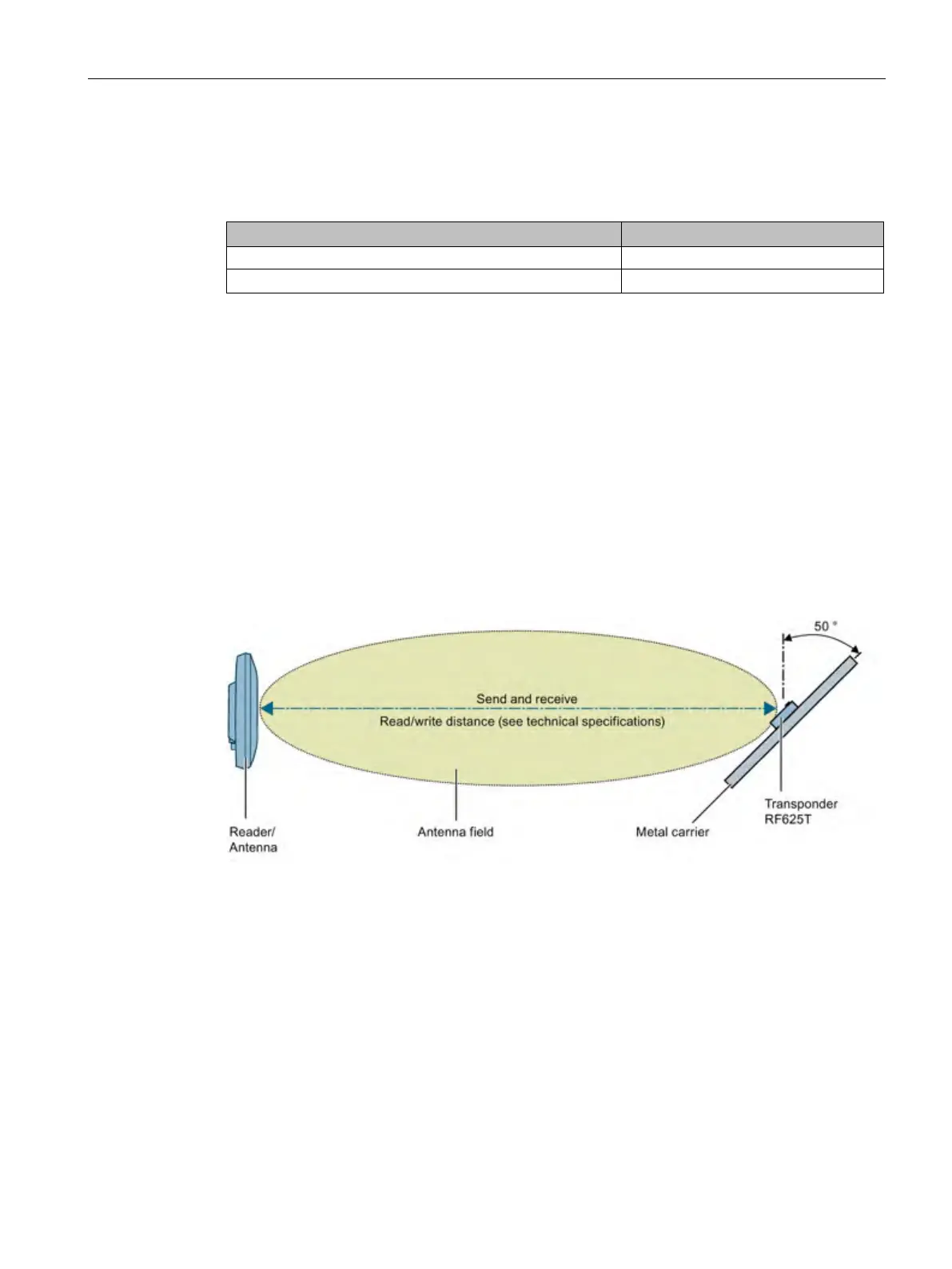

Figure 7-22 Example of optimum reader/antenna transponder positioning
The graphic shows an example of optimum positioning of the transponder relative to the
reader or the antenna. This positioning is regardless of whether you are working with the
internal reader antenna or with one of the external RF600 antennas.
