Antennas
6.3 SIMATIC RF620A
SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
227
6.3.4 Connecting the antenna
The SIMATIC RF620A antenna must be connected to the reader using an antenna cable.
Preassembled standard cables in lengths of 1 m, 3 m, 5 m, 10 m, 15 m, 20 m and 40 m are
available to connect the antenna.
The range of the antenna is limited by the cable loss. The maximum range can be achieved
with the cable 6GT2815-0BH10 (length 1 m), since this cable has the lowest cable loss.
Requirement
Note
Use of Siemens antenna cable
To ensure optimum functioning of the antenna, it is recommended that a Siemens antenna
cable is used in accordance with t
he list of accessories.

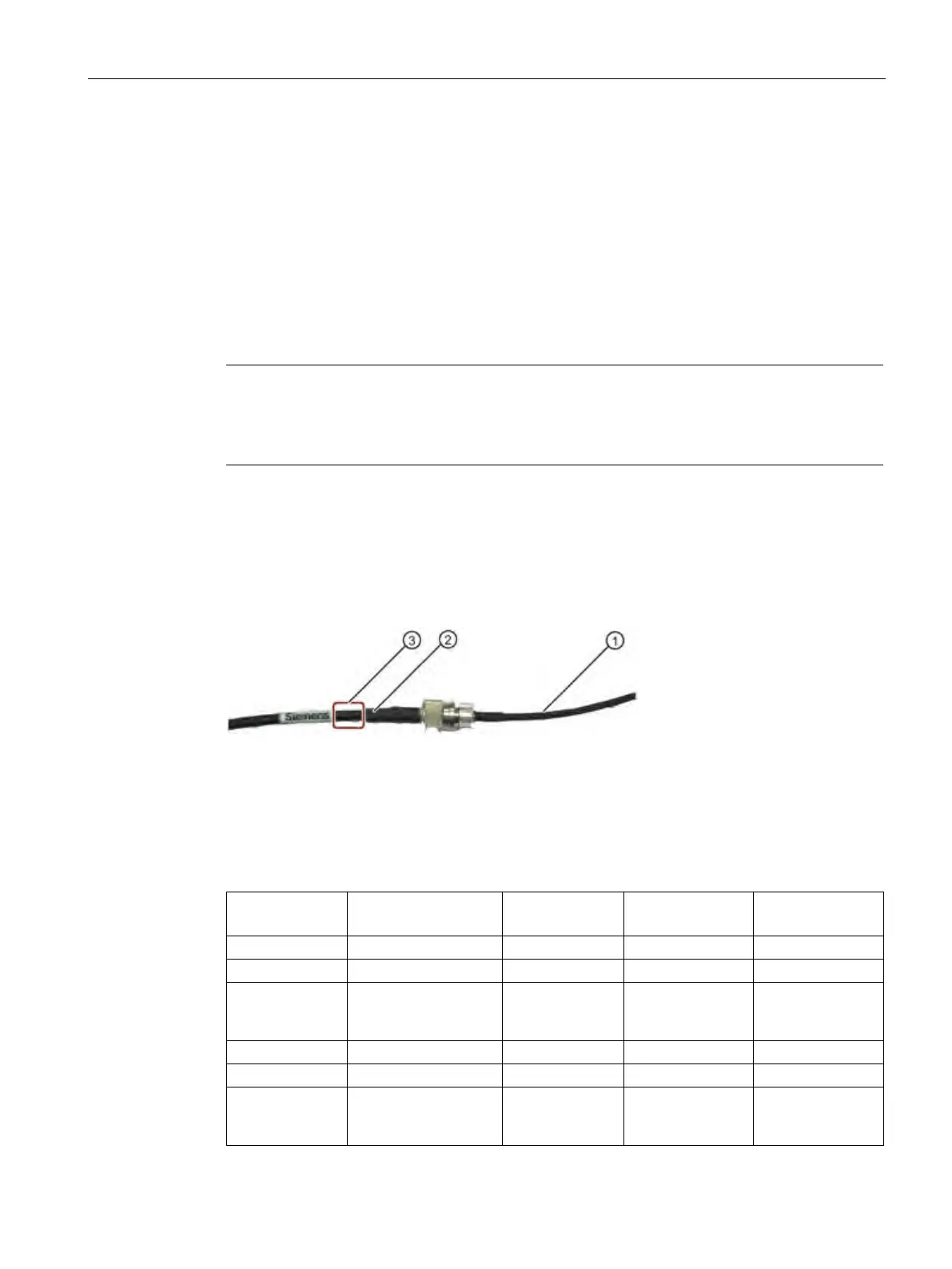

Strain relief
To protect the antenna connecting cable from strain, you can attach strain relief, e.g. in the
form of a strain relief clamp. The following graphic shows the optimum mounting point for
attaching strain relief.
①
RF620A antenna connecting cable
②
RF600 antenna cable
③
Mounting point for strain relief
Figure 6-12 Strain relief
Table 6- 12 Bending radii and bending cycles of the antenna cable
Cable designa-
tion
Article number
Length [m]
Cable loss [dB]
Bending radius
[mm]
1)
Antenna cable
6GT2815-0BH10
1
0.5
51
Antenna cable
6GT2815-0BH30
3
1
51
Antenna cable
(suitable for drag
chains)
6GT2815-2BH50 5 1.5 44
2)
Antenna cable
6GT2815-1BN10
10
2
77
Antenna cable
6GT2815-0BN10
10
4
51
Antenna cable
(suitable for drag
chains)
6GT2815-2BN15 15 4 44
2)
