10.3 Reader and antenna holders
SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
479
10.2.5 Dimension drawing

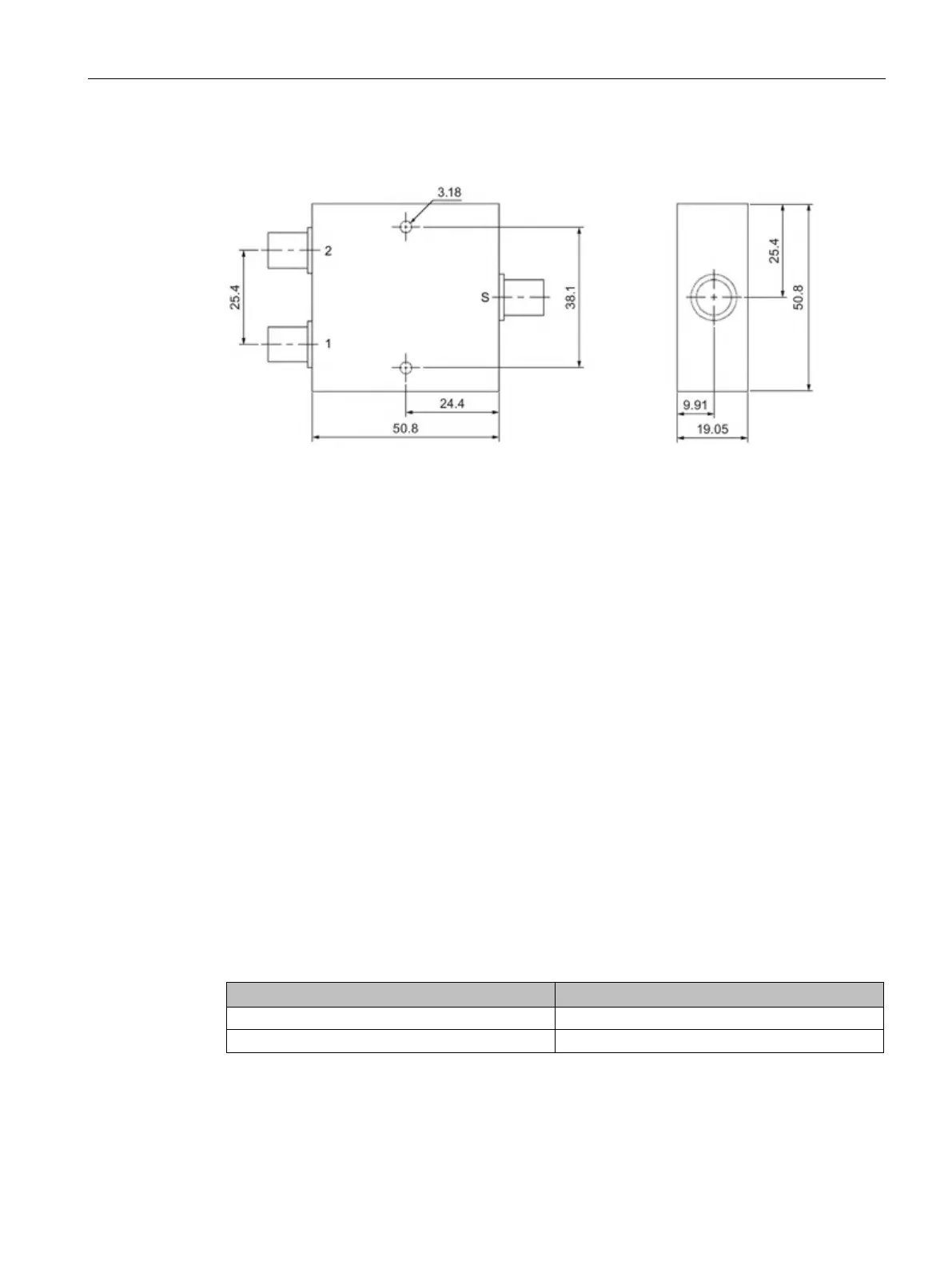

Figure 10-3 Power splitter dimension drawing
All dimensions in mm
10.3 Reader and antenna holders
10.3.1 Overview
The following read points (readers and antennas) have a standardized VESA 100 mounting
system (4 x M4) and can be secured with a holder:
● SIMATIC RF615R, RF650R, RF680R, RF685R
● SIMATIC RF640A, RF642A, RF650A, RF660A, RF680A
The following holders are available for mounting the read points:
● Antenna mounting kit
● SIMATIC antenna holder for RF600 devices
10.3.2 Ordering data
SIMATIC antenna holder for RF600 devices
