Antennas
6.6 SIMATIC RF650A
SIMATIC RF600
290 System Manual, 11/2018, J31069-D0171-U001-A21-7618
6.6.6.1 Antenna patterns in the ETSI frequency band
Directional radiation pattern
Directional radiation pattern ETSI
The directional radiation pattern is shown for nominal alignment and a center frequency of
866.3 MHz. The nominal antenna alignment is given when the antenna elevation is provided
as shown in the following figure.

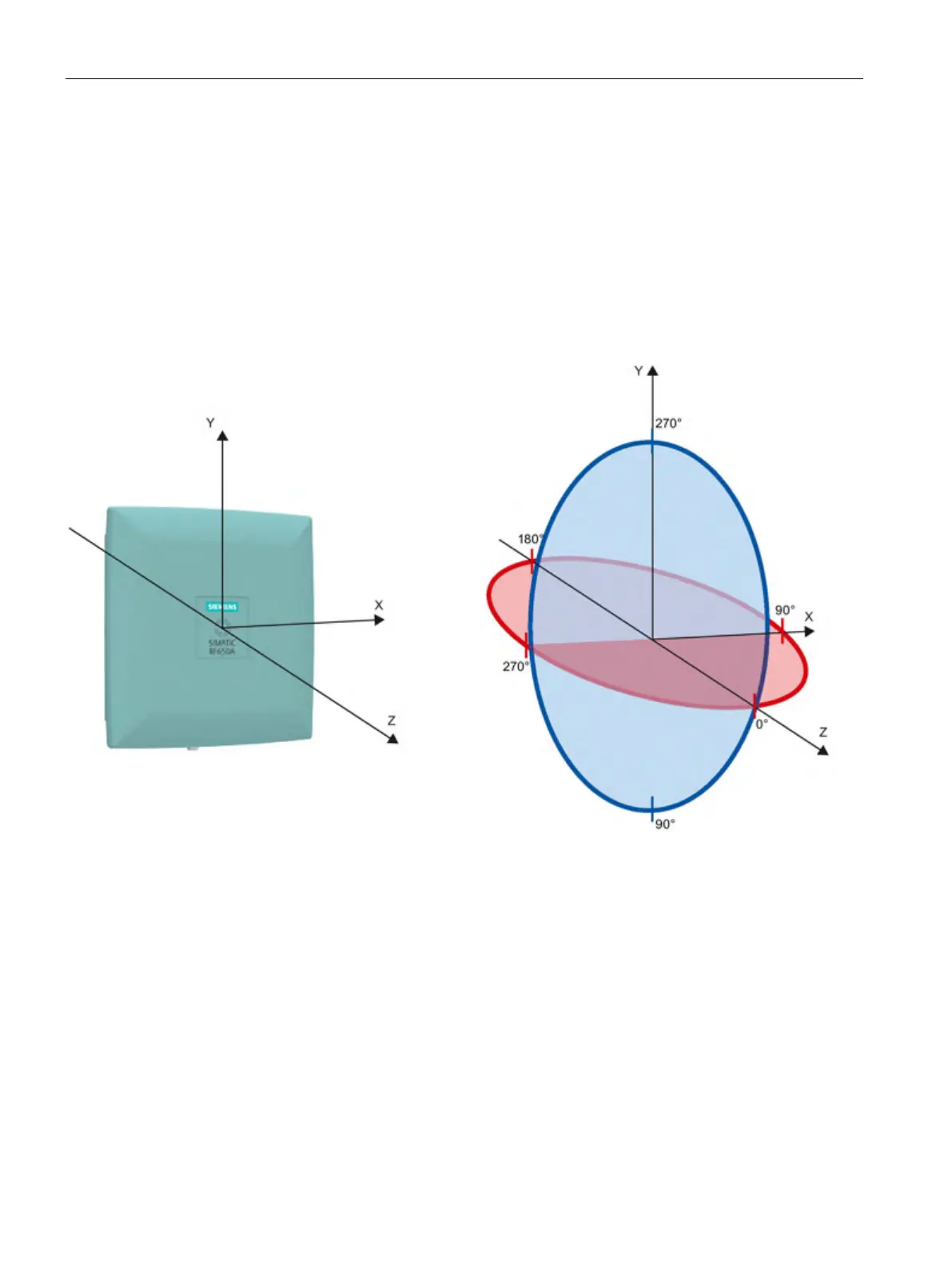

Figure 6-42 Reference system
The half-power beam width of the antenna is defined by the angle between the two -3 dB
points. Which range (in %) corresponds to the dB values in the patterns can be obtained
from this table (Page 294).
Note that the measurements presented graphically below were carried out in a low-reflection
environment. Deviations can therefore occur in a normally reflecting environment.
