Siemens Simatic S7-1500 CPU 1512C-1 PN User Manual

Interrupts/diagnostics alarms
6.1 Status and error displays
CPU 1512C-1 PN (6ES7512-1CK01-0AB0)
128 Manual, 12/2017, A5E40898741-AA
Meaning of the RUN/STOP, ERROR and MAINT LEDs
The CPU has three LEDs for displaying the current operating mode and diagnostics status.
The following table shows the meaning of the various combinations of colors for the
RUN/STOP, ERROR and MAINT LEDs.

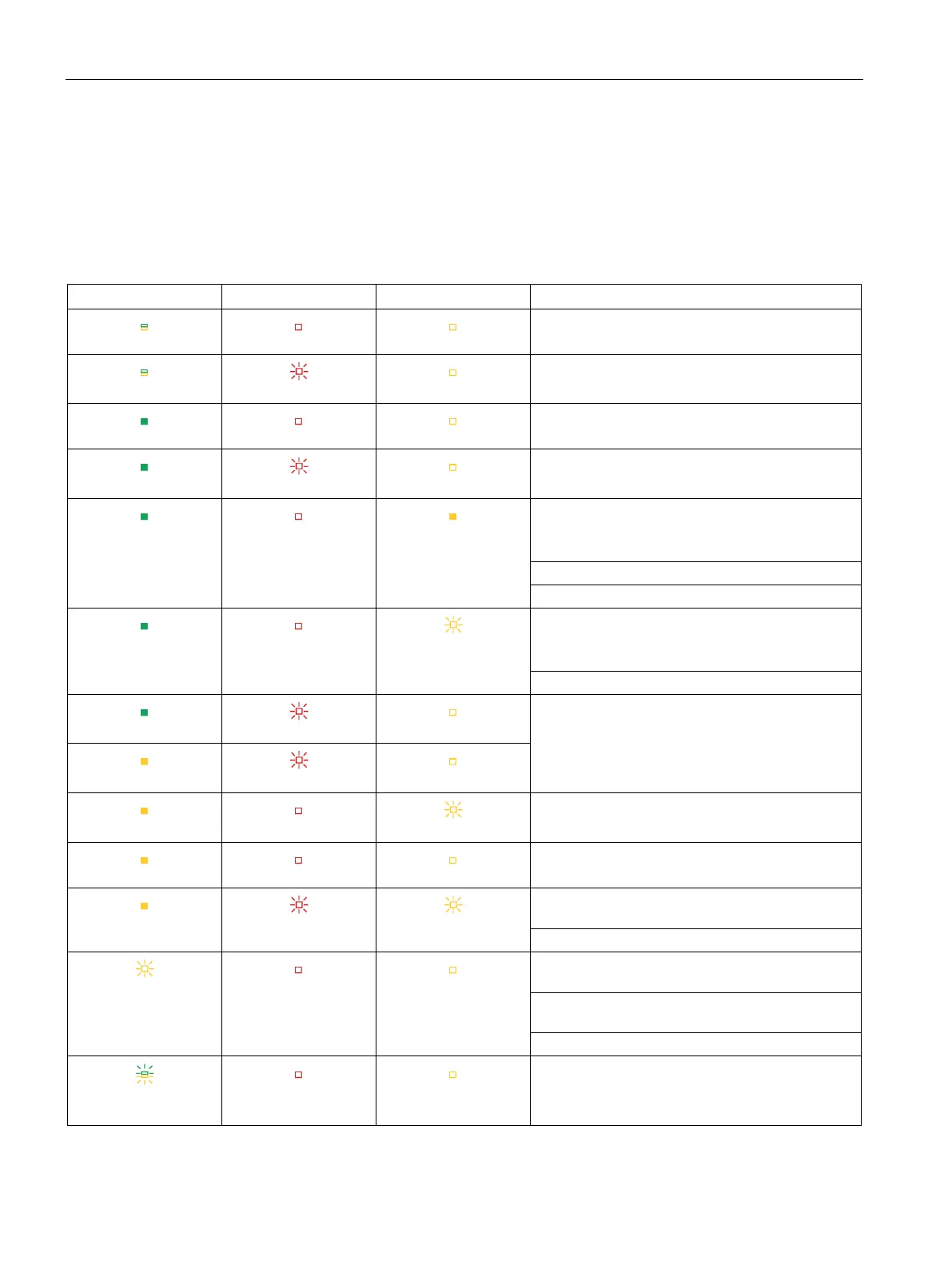

Table 6- 1 Meaning of the LEDs
RUN/STOP LED
ERROR LED
MAINT LED
Meaning
LED off
LED off
LED off
Missing or insufficient supply voltage on the CPU.
LED off
LED flashes red
LED off
An error has occurred.
LED lit green
LED off
LED off
CPU is in RUN mode.
LED lit green
LED flashes red
LED off
A diagnostics event is pending.
LED lit green LED off LED lit yellow
Maintenance demanded for the plant.
The affected hardware must be checked/replaced
within a short period of time.
Active Force job
PROFIenergy pause
LED lit green LED off
LED flashes yellow
Maintenance required for the plant.
The affected hardware must be checked/replaced
within a foreseeable period of time.
Bad configuration
LED lit green
LED flashes red
LED off
An error has occurred.
LED lit yellow
LED flashes red
LED off
LED lit yellow LED off
LED flashes yellow
Firmware update successfully completed.
LED lit yellow
LED off
LED off
CPU is in STOP mode.
LED lit yellow
LED flashes red LED flashes yellow
The program on the SIMATIC memory card is
causing an error.
CPU defective
LED flashes yellow
LED off LED off
CPU is performing internal activities during STOP,
e.g. ramp-up after STOP.
Download of the user program from the SIMATIC
memory card
CPU carries out a program with active breakpoint.
LED flashes
yellow/green
LED off LED off
Startup (transition from RUN → STOP)

Siemens Simatic S7-1500 CPU 1512C-1 PN Specifications

General

Integrated Interfaces	PROFINET
Data Memory	1 MB
Number of Signal Boards	1
Firmware Version	V2.8
Rated Value (DC)	24 V
Number of PROFINET Ports	2
Number of PROFINET Ports with Switch	2
Integrated Web Server	Yes
Number of Digital Inputs	16
Number of Digital Outputs	16
Number of Analog Outputs	2
Number of High-speed Counters	6
Program Memory	300 KB
Number of Signal Modules	32
Engineering with	STEP 7 Professional V13
Interface Type	Ethernet
Data Storage	Yes
Operating Temperature	0 to 60 °C
Dimensions	147 mm x 129 mm
