Parameter data records
B.3 Structure of a data record for output channels of the analog on-board I/O
CPU 1512C-1 PN (6ES7512-1CK01-0AB0)
Manual, 12/2017, A5E40898741-AA
173

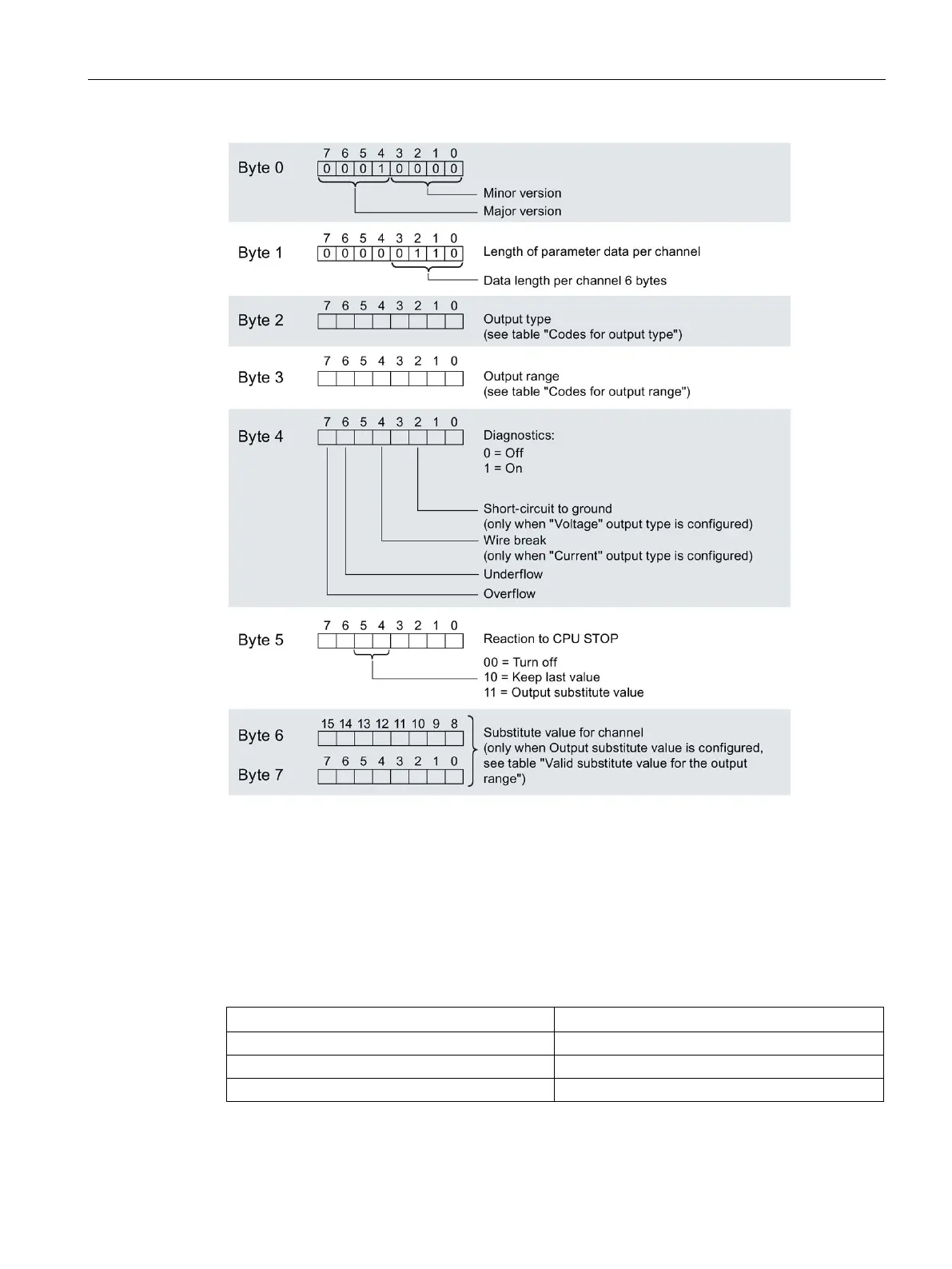

Figure B-3 Structure of data record 64: Bytes 0 to 7
Codes for output type
The following table contains all output types of the outputs of the analog on-board I/O with
the corresponding codes. You must enter these codes in each case in byte 2 of the data
record for the corresponding channel (see the previous figure).
Table B- 8 Codes for the output type
Output type
Code
Disabled
0000 0000
Voltage
0000 0001
Current
0000 0010
