Analog value processing
C.1 Conversion method
CPU 1512C-1 PN (6ES7512-1CK01-0AB0)
190 Manual, 12/2017, A5E40898741-AA
The following figure shows how this works using a 400 Hz interference frequency
suppression as an example. A 400 Hz interference frequency suppression corresponds to an
integration time of 2.5 ms. The analog on-board I/O supplies a measured value to the CPU
every 1.25 milliseconds within the integration time.

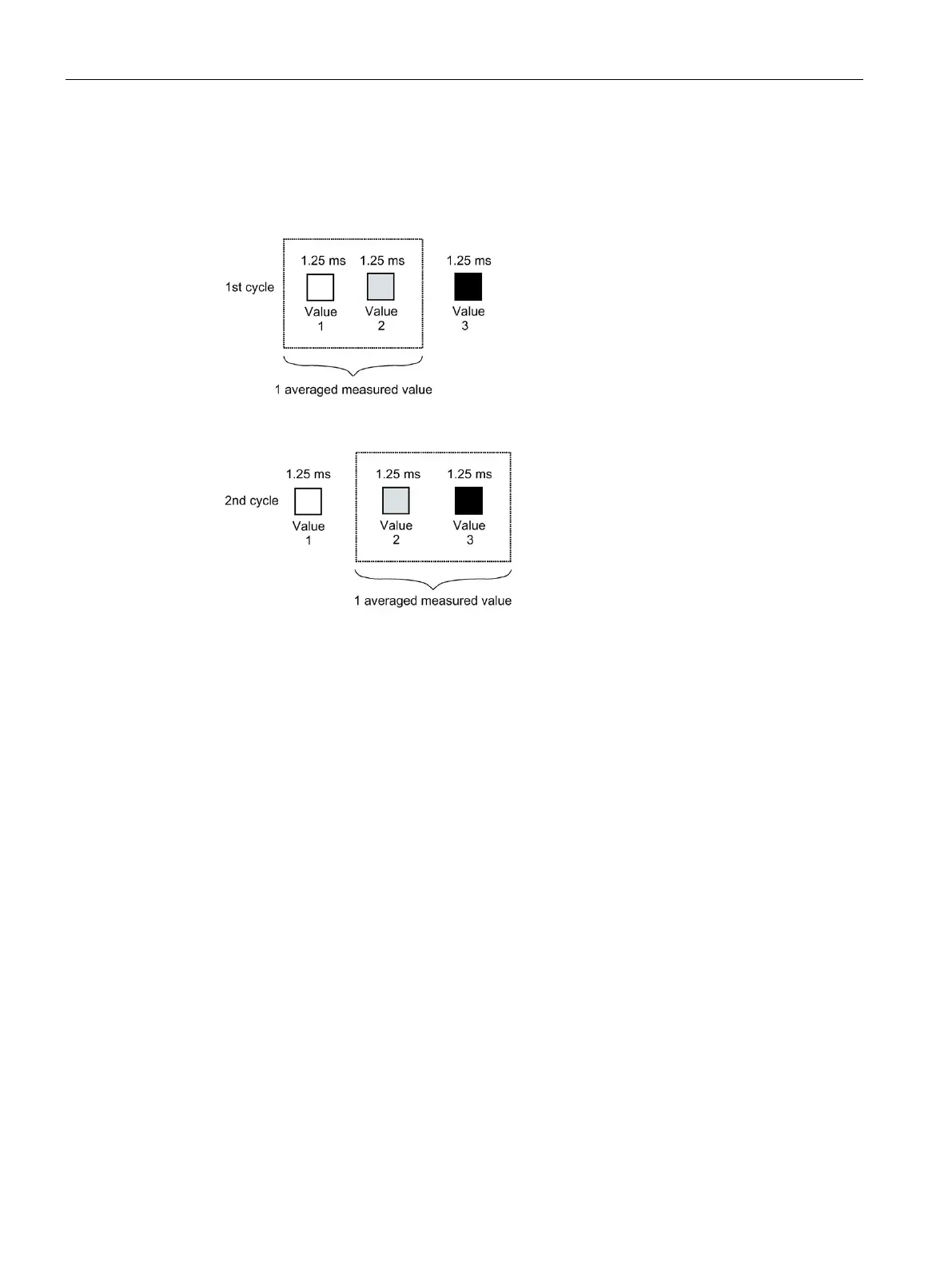

Figure C-1 Interference frequency suppression 400 Hz

Siemens Simatic S7-1500 CPU 1512C-1 PN Specifications

General

Integrated Interfaces	PROFINET
Data Memory	1 MB
Number of Signal Boards	1
Firmware Version	V2.8
Rated Value (DC)	24 V
Number of PROFINET Ports	2
Number of PROFINET Ports with Switch	2
Integrated Web Server	Yes
Number of Digital Inputs	16
Number of Digital Outputs	16
Number of Analog Outputs	2
Number of High-speed Counters	6
Program Memory	300 KB
Number of Signal Modules	32
Engineering with	STEP 7 Professional V13
Interface Type	Ethernet
Data Storage	Yes
Operating Temperature	0 to 60 °C
Dimensions	147 mm x 129 mm
