Siemens Simatic S7-1500 CPU 1512C-1 PN - Page 191

Analog value processing
C.1 Conversion method
CPU 1512C-1 PN (6ES7512-1CK01-0AB0)
Manual, 12/2017, A5E40898741-AA
191
The following figure shows how this works using a 60 Hz interference frequency suppression
as an example. A 60 Hz interference frequency suppression corresponds to an integration
time of 16.6 ms. The analog on-board I/O supplies a measured value to the CPU every 1.04
milliseconds within the integration time.

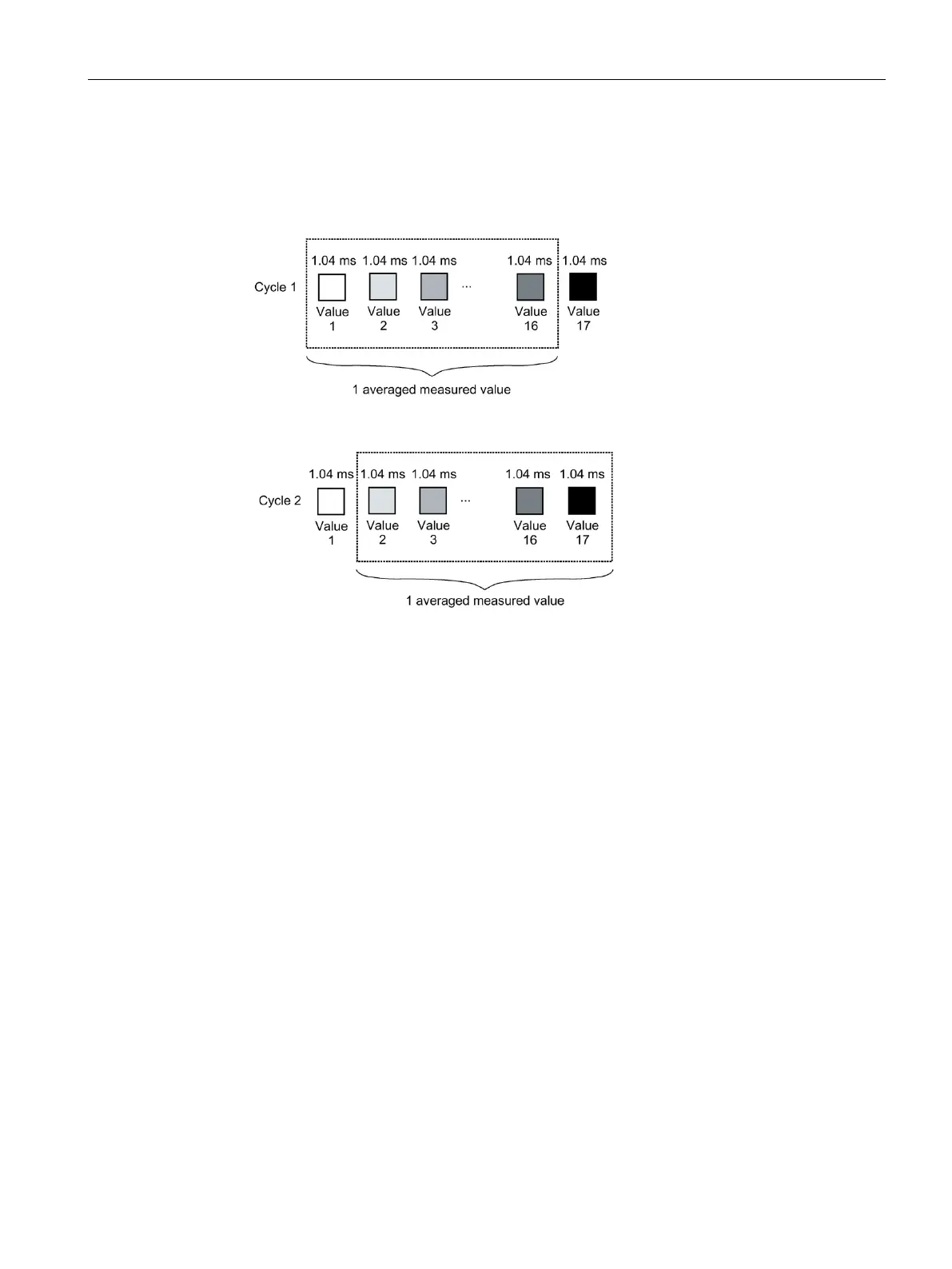

Figure C-2 Interference frequency suppression 60 Hz
