Wiring
4.3 Terminal and block diagrams
CPU 1512C-1 PN (6ES7512-1CK01-0AB0)
82 Manual, 12/2017, A5E40898741-AA
Wiring: Voltage measurement

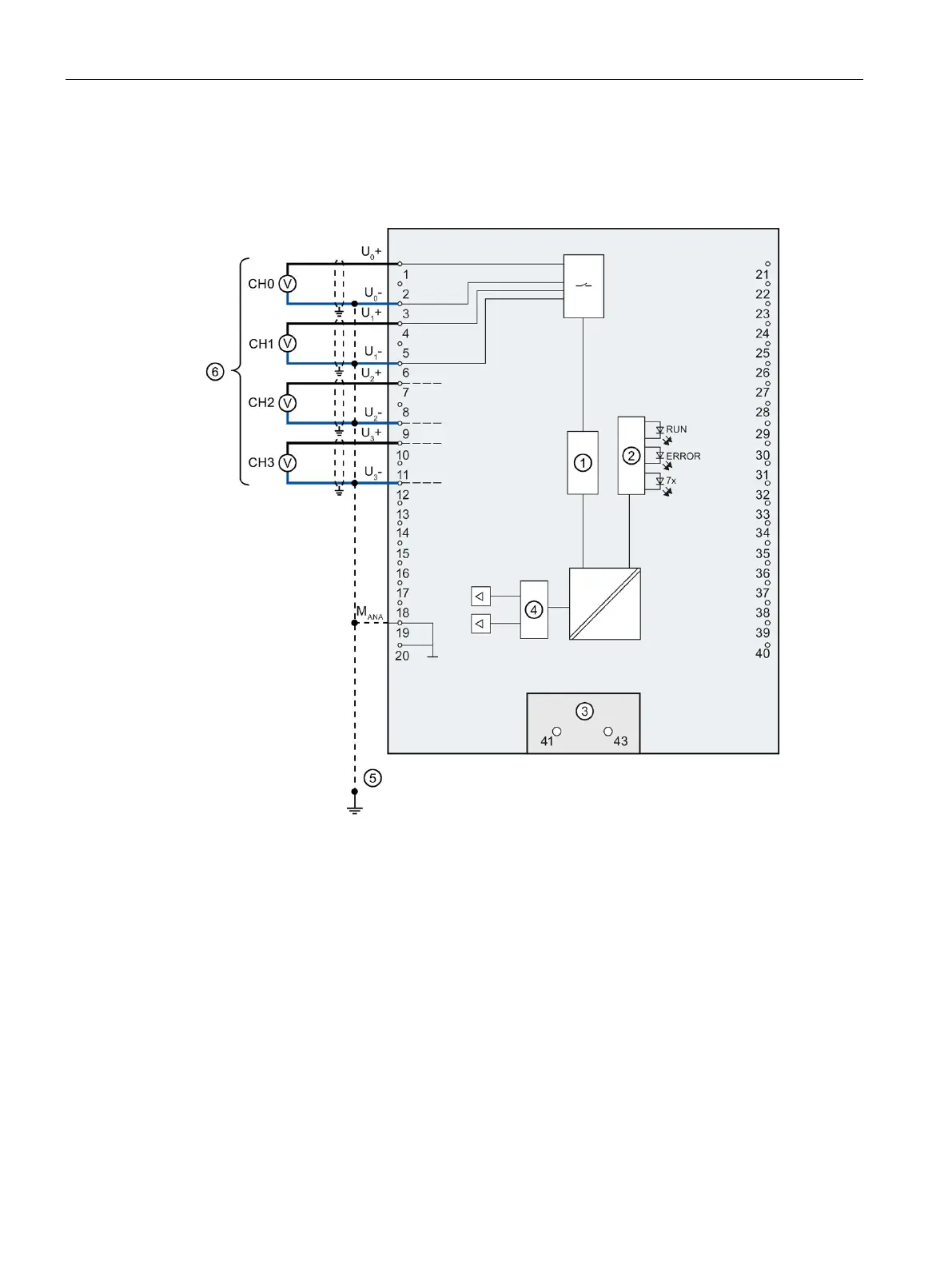

The following figure shows the terminal assignment for voltage measurement at the channels
available for this measurement type (channels 0 to 3).
Analog-to-digital converter (ADC)
Infeed element (for shielding only)
Digital-to-analog converter (DAC)
Equipotential bonding cable (optional)
Figure 4-4 Block diagram and terminal assignment for voltage measurement
