Siemens Simatic S7-1500 CPU 1512C-1 PN User Manual

Wiring
4.3 Terminal and block diagrams
CPU 1512C-1 PN (6ES7512-1CK01-0AB0)
Manual, 12/2017, A5E40898741-AA
83
Wiring: 4-wire measuring transducer for current measurement
The following figure shows the terminal assignment for current measurement with 4-wire
measuring transducer at the channels available for this measurement type (channels 0 to 3).
①
Analog-to-digital converter (ADC)
②
LED interface
③
Infeed element (for shielding only)
④
Digital-to-analog converter (DAC)
⑤
Equipotential bonding cable (optional)
⑥
Connector 4-wire measuring transducer

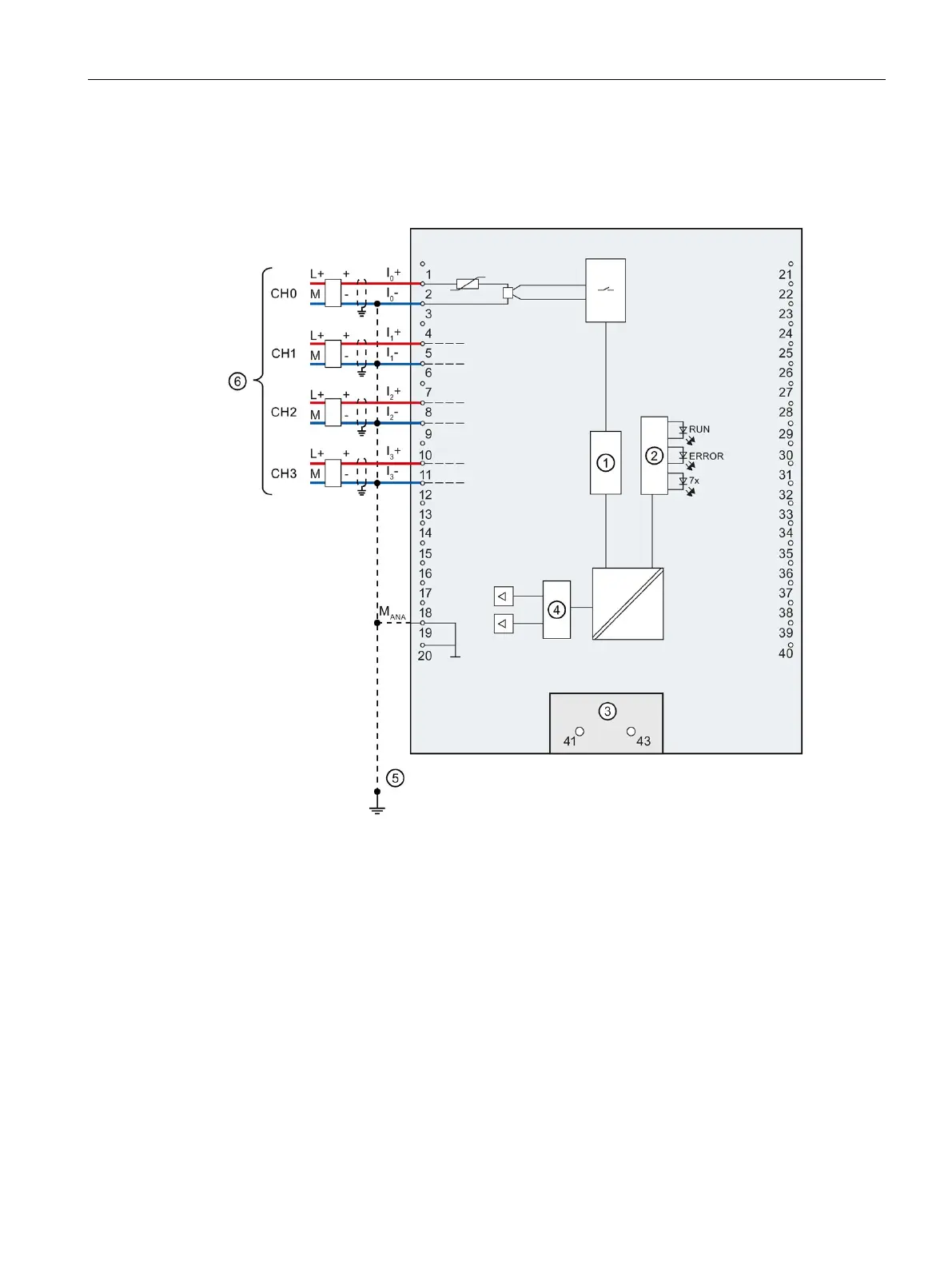

Figure 4-5 Block diagram and terminal assignment for current measurement with 4-wire measuring
transducer

Siemens Simatic S7-1500 CPU 1512C-1 PN Specifications

General

Integrated Interfaces	PROFINET
Data Memory	1 MB
Number of Signal Boards	1
Firmware Version	V2.8
Rated Value (DC)	24 V
Number of PROFINET Ports	2
Number of PROFINET Ports with Switch	2
Integrated Web Server	Yes
Number of Digital Inputs	16
Number of Digital Outputs	16
Number of Analog Outputs	2
Number of High-speed Counters	6
Program Memory	300 KB
Number of Signal Modules	32
Engineering with	STEP 7 Professional V13
Interface Type	Ethernet
Data Storage	Yes
Operating Temperature	0 to 60 °C
Dimensions	147 mm x 129 mm
