Wiring
4.3 Terminal and block diagrams
CPU 1512C-1 PN (6ES7512-1CK01-0AB0)
88 Manual, 12/2017, A5E40898741-AA
The figure below shows the terminal assignment for the wiring of the voltage outputs with:
● 2-wire connection, no compensation for line resistances.
Analog-to-digital converter (ADC)
Infeed element (for shielding only)
Digital-to-analog converter (DAC)
2-wire connection CH0 and CH1

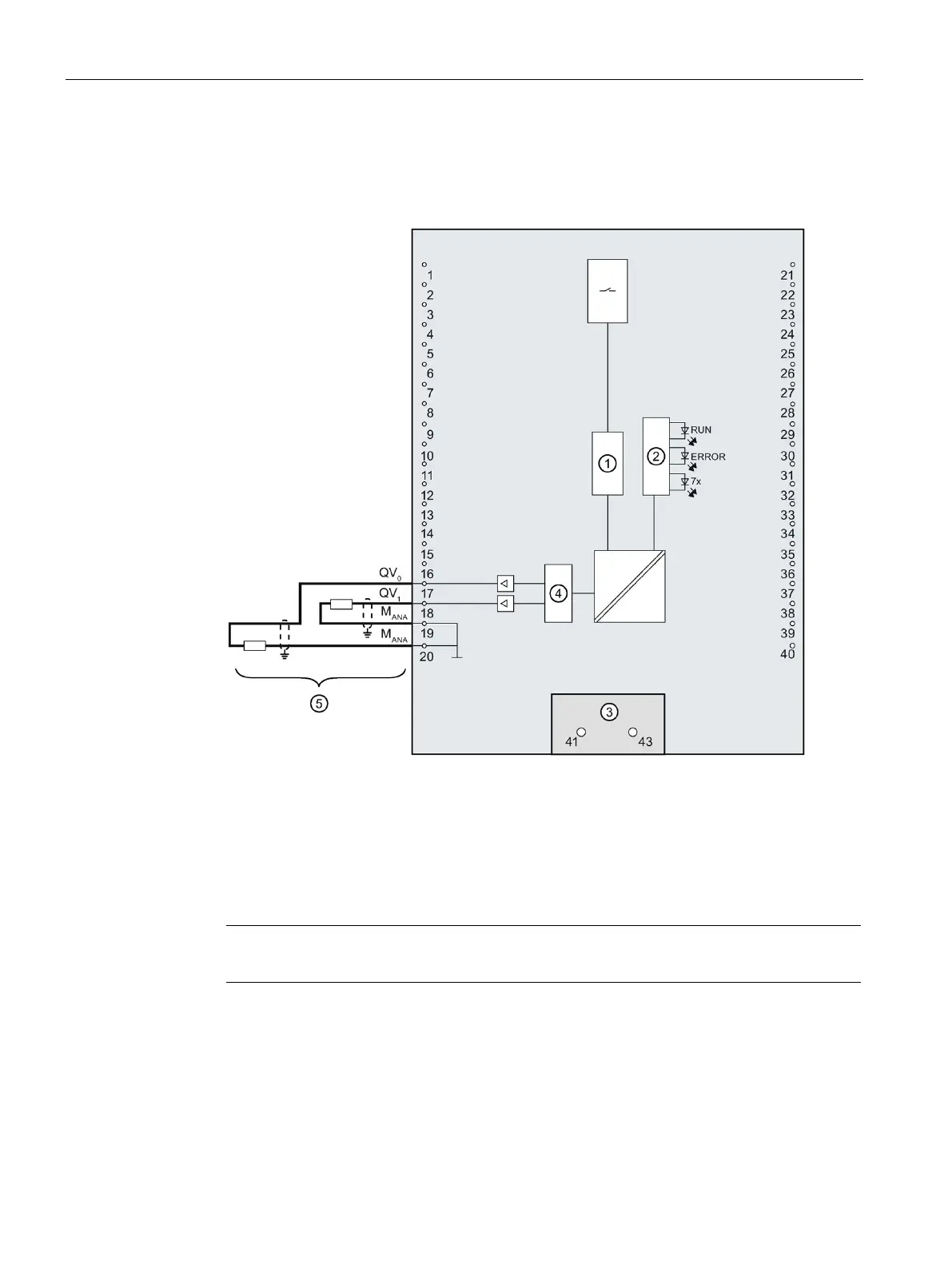

Figure 4-10 Block diagram and terminal assignment for voltage output
ANA
on terminals 19 and 20 is equivalent.
