Siemens SIMATIC S7-300 Module data Product Information

Expert Functions
5.6 Measuring Function
Connection of the SINAMICS S120 to the Technology CPU
158 Product Information, 09/2011, A5E00480378-04

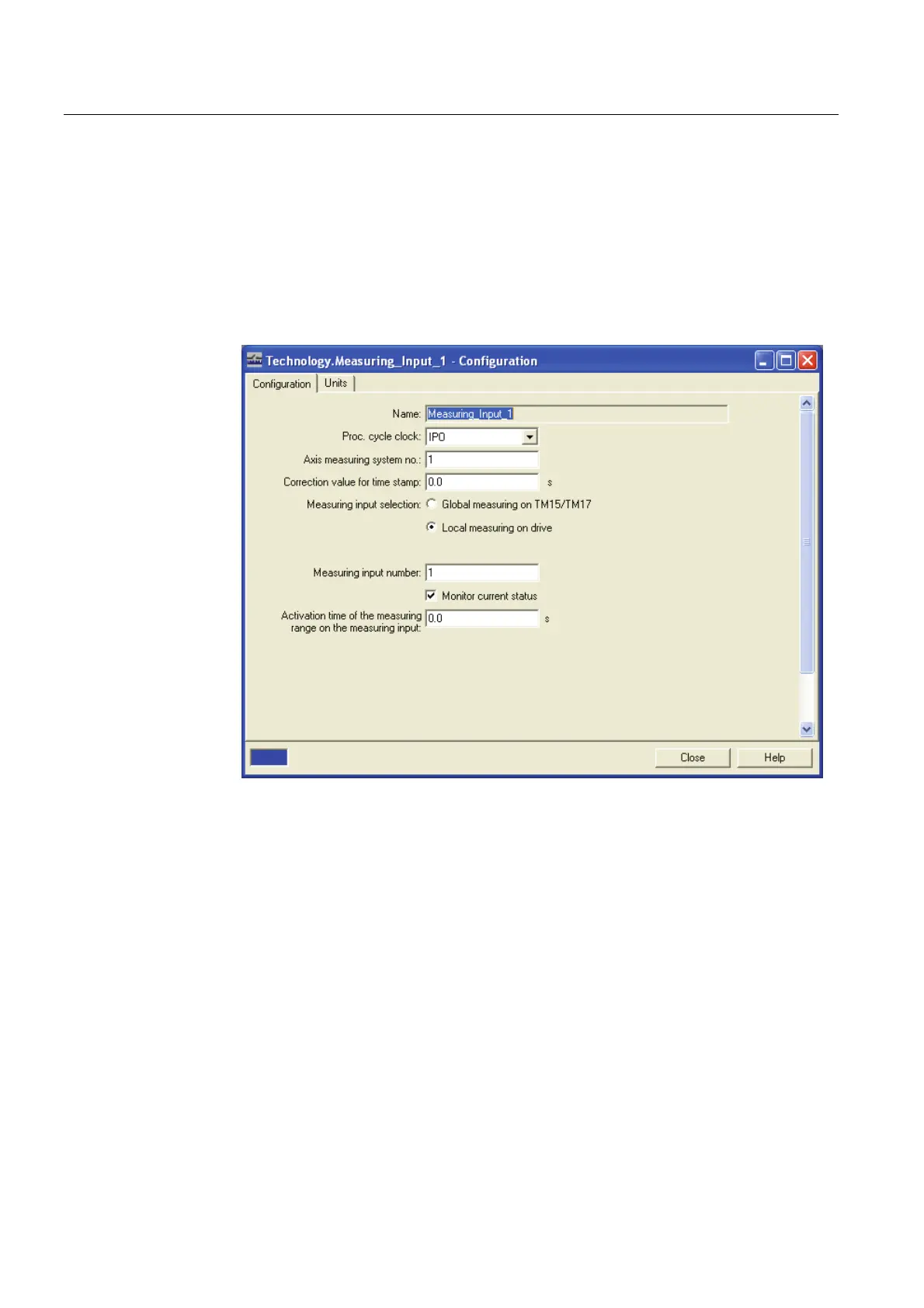

5. To configure the measuring input, click "\Technology\Axes\Axis_1\Measuring
inputs\Measuring_input_1\Configuration" in the project navigator of S7T Config.
6. Select the following functions and settings for the example:
– Local measurement on the drive
– Measuring input number "1"
The first measuring input corresponds to the configuration at drive_1 "parameter
p488".
This completes the configuring in S7T Config and the measuring input can be used in the
user program.

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
