Connection of the SINAMICS S120 to the Technology CPU

Product Information, 09/2011, A5E00480378-04

Commissioning

3.1 Commissioning procedure

Operational sequence

The commissioning procedure is divided into two parts:

1. Create a STEP 7 project and make the settings of the technology CPU for the connected

hardware using the HW Config and S7T Config programs. Special attention is placed on

the parameterizations that must be performed both in the technology CPU and in the

SINAMICS S120.

2. Parameterize SINAMICS S120, create drives and axes. The base device commissioning

required for the connection to the technology CPU is also described here.

The following sections describe these settings in detail, both for the technology CPU as well

as the SINAMICS S120.

3.2 Connecting hardware components

3.2.1 PROFIBUS interconnection

Introduction

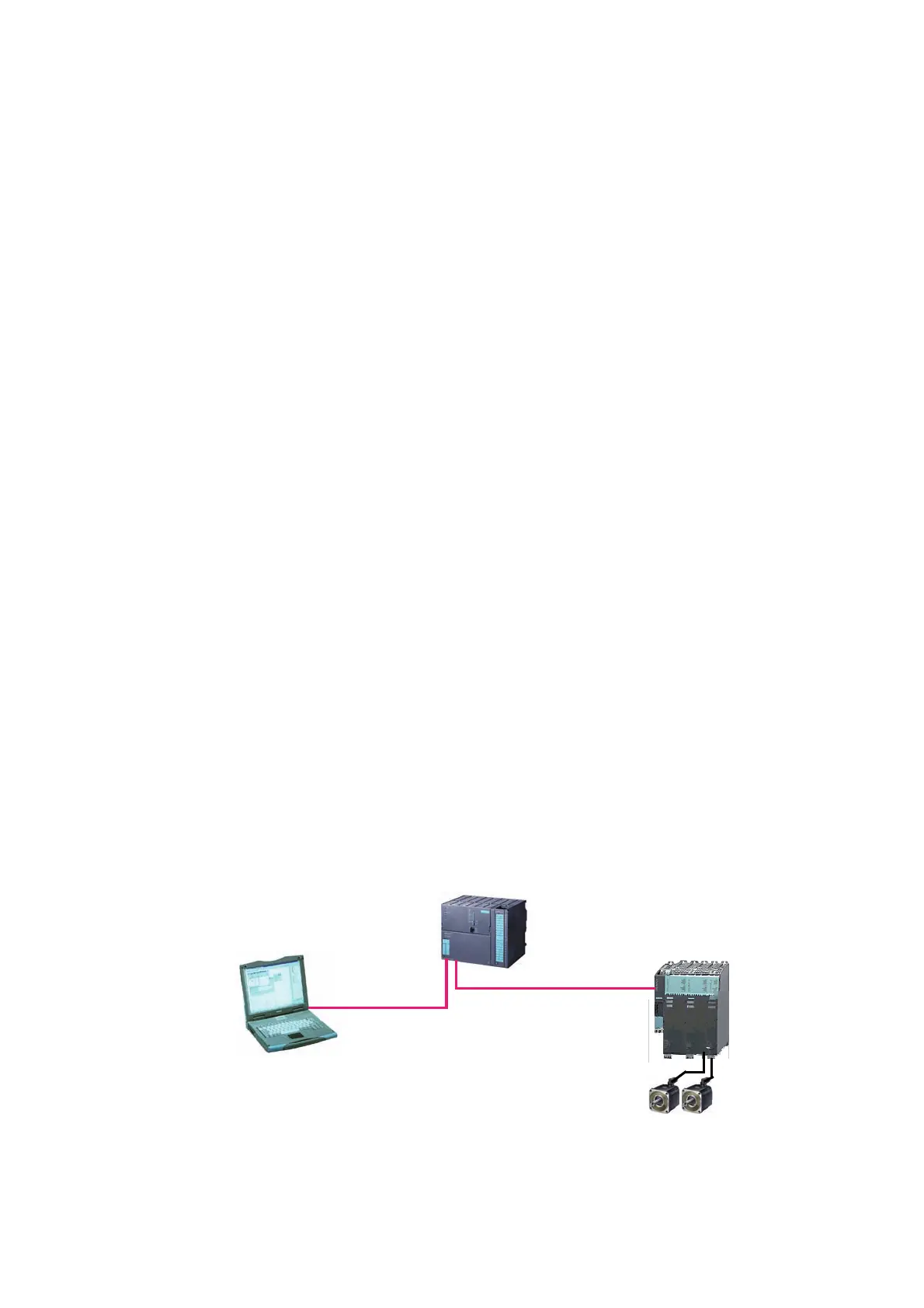

Connect the programming device to the PROFIBUS X1 terminal and the

SINAMICS S120 drive system to the PROFIBUS DP (DRIVE) X3 terminal

of the Technology CPU.

352),%86

'3'5,9(

6,1$0,&66

; ;

3URJUDPPLQJGHYLFH

7HFKQRORJ\&38
