3.7 Diagnosing the technology configuration
Connection of the SINAMICS S120 to the Technology CPU
Product Information, 09/2011, A5E00480378-04
89
3.7.3 Axis test using the technology axis control panel
Procedure
Once the drive infeed is active, the axis control panel can be used to operate the axes.

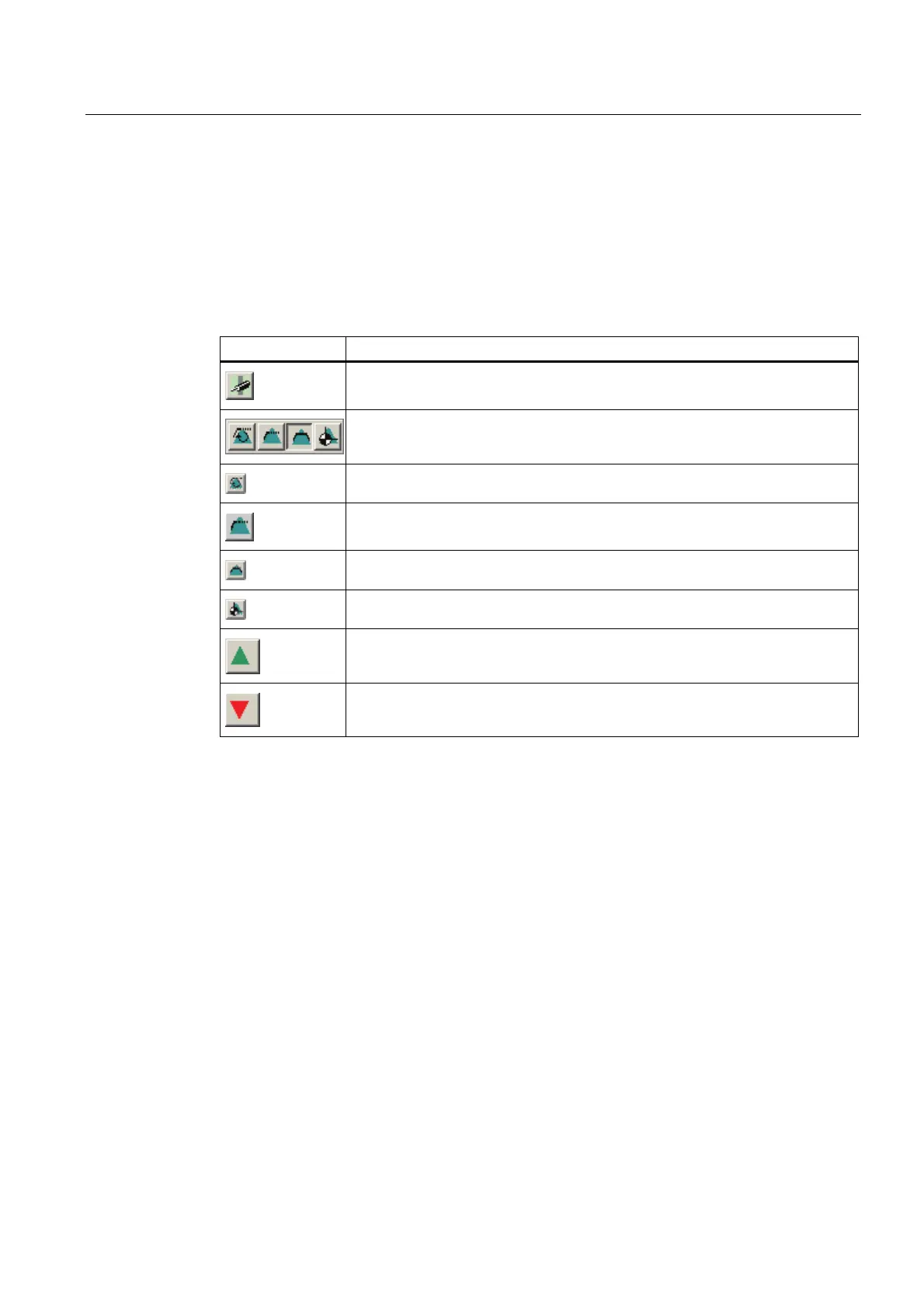

The axis control panel buttons can be used to invoke the following functions:
Button Function
Set axis enable.
Select the operating mode of the axis:
Speed-controlled operation
Position-controlled operation
Absolute or relative positioning
Homing
Start from the control panel the motion set for the axis.
Stop the set axis motion.
