Siemens SIMATIC S7-300 Module data Product Information

Commissioning
3.6 Creating technology objects
Connection of the SINAMICS S120 to the Technology CPU
86 Product Information, 09/2011, A5E00480378-04

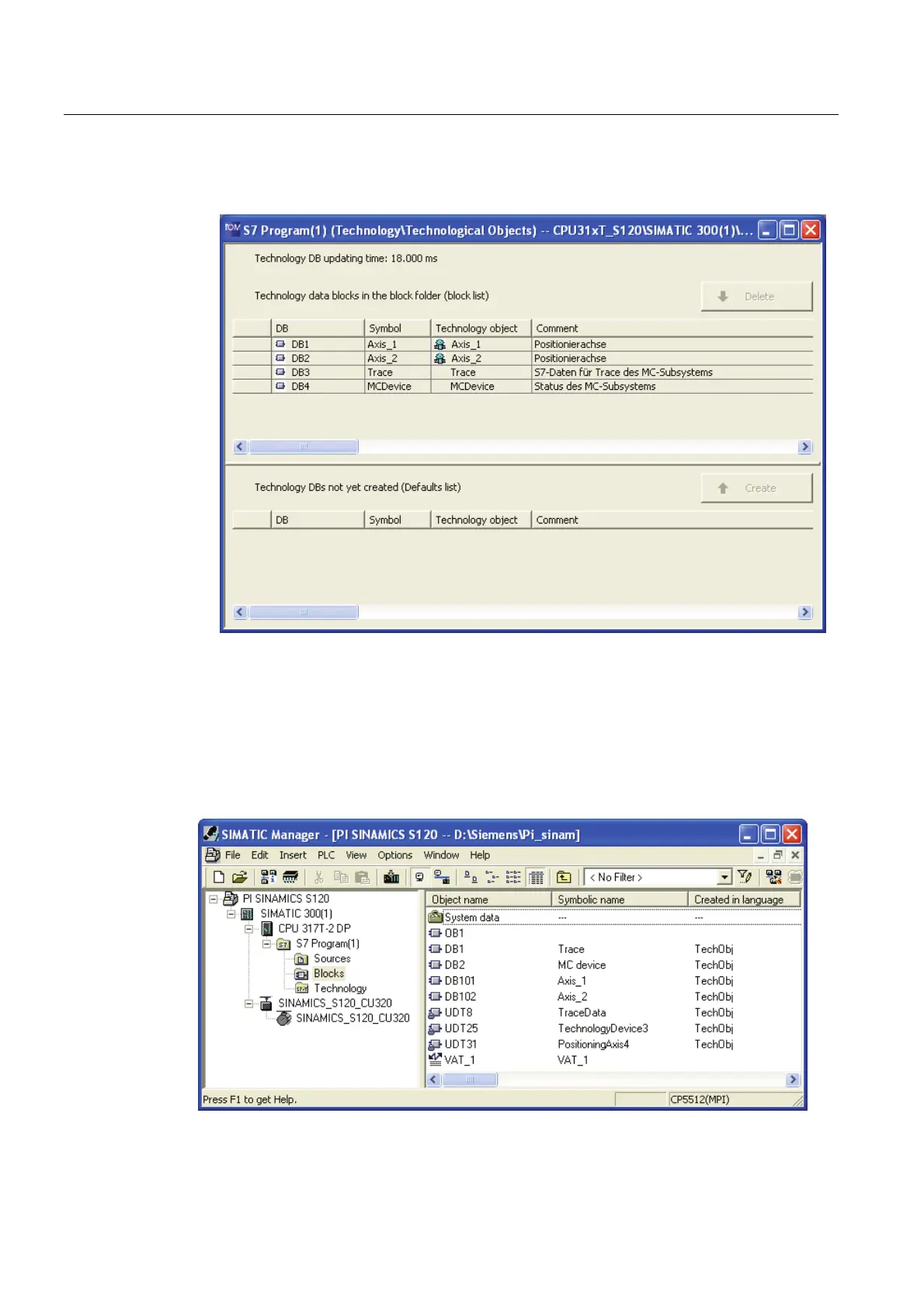

The created technology data blocks are displayed in the list of the technology data blocks
in the module folder. The Technology Objects Management program can then be closed.
Result
The created technology data blocks are now also in the SIMATIC Manager in the "Blocks"
folder of the SIMATIC 300 station. The icons of the data blocks are derived from the
designations of the technology objects in S7T Config.
In addition to technology data blocks, a number of User Defined Datatypes (UDT)
that from the basis for the technology data blocks will also be created.

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
