Siemens SIMATIC S7-300 Module data Product Information

Basic functions
4.1 Encoder settings
Connection of the SINAMICS S120 to the Technology CPU
96 Product Information, 09/2011, A5E00480378-04
Multiturn information (parameter 421 in the drive)
The multiturn information contains the number of full encoder revolutions.
With each complete revolution of the encoder, the multiturn information is incremented by
one. If the maximum data width of the multiturn information is achieved, the encoder actual
value is reset to zero.
Encoder pulses per revolution (parameter 408 in the drive)
The encoder pulses per revolution is the characteristic parameter of the encoder. It defines
the number of encoder tallies per revolution. For analog encoders, it specifies the number of
sine / cosine oscillations per revolution. Optical encoders have tallies which are etched on a
sheet of glass. The greater the number of encoder pulses per revolution, the higher the
resolution of the encoder.
Sometimes the encoder data gives the encoder resolution (e.g. 12-bit resolution),
rather than the number of tallies. The encoder pulses per revolution are calculated
as follows:
Encoder pulses per revolution = 2
resolution

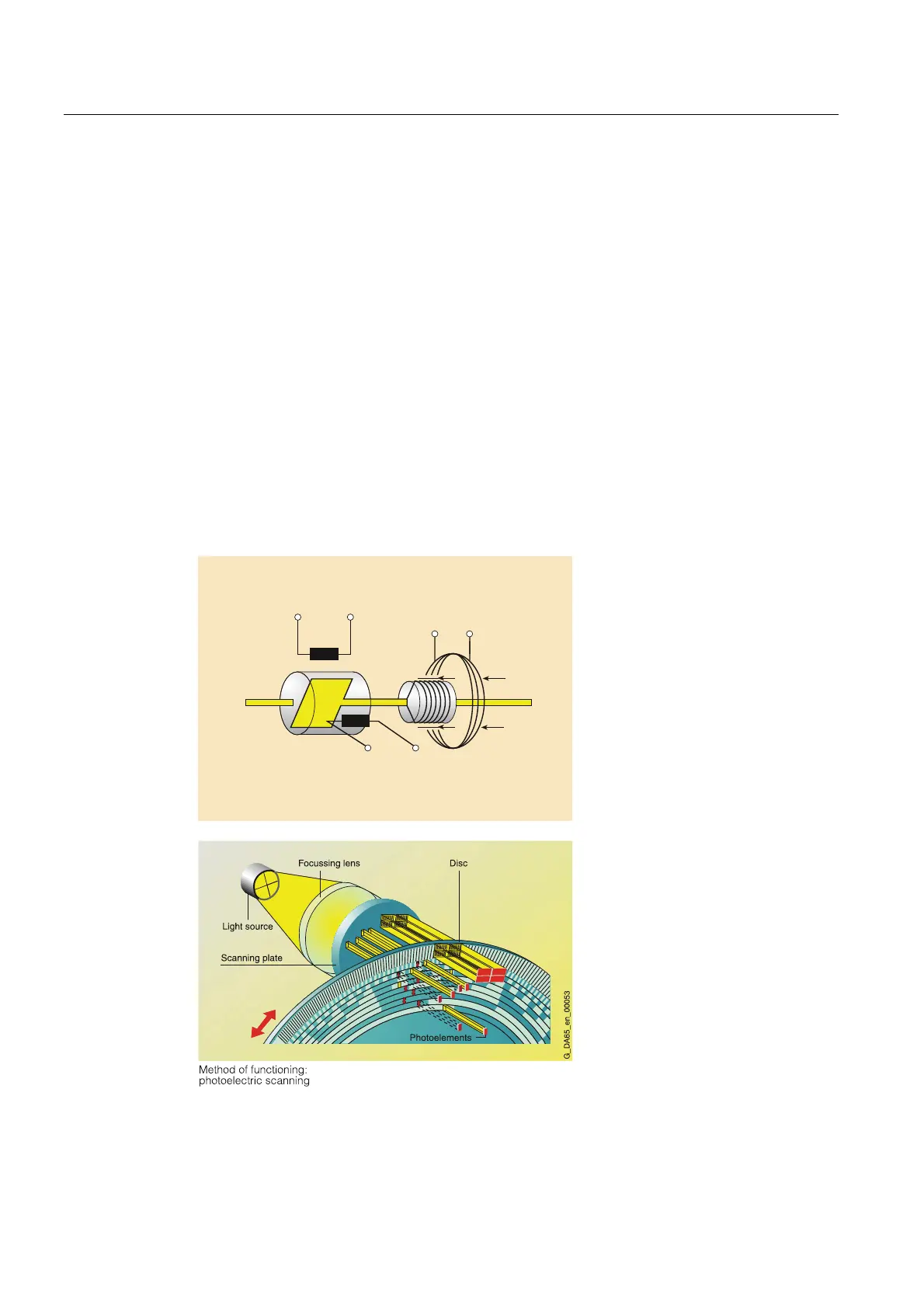

G_DA65_en_00048
Sine pick-off
U
Sine track
Excitation: 2 to 10 kHz
Rotary
transformer
Cosine pick-off
U
Cosine track

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
