Basic functions
4.1 Encoder settings
Connection of the SINAMICS S120 to the Technology CPU
98 Product Information, 09/2011, A5E00480378-04
Number of data bits
When you configure an axis in S7T Config, you must specify the "number of data bits" for the
encoder.

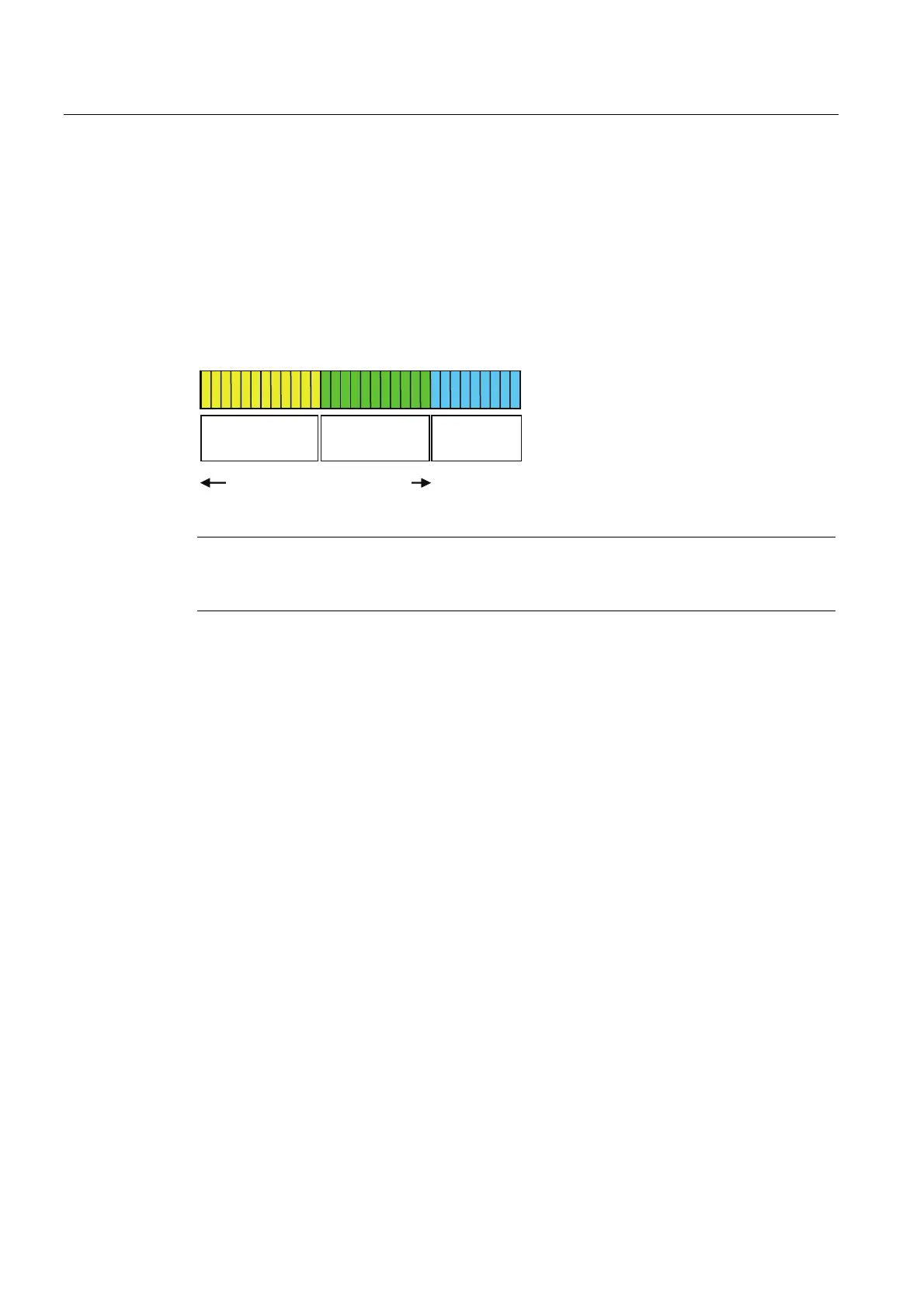

The "number of data bits" corresponds to the proportion of user data of the 32-bit wide
encoder actual value, and is calculated from the sum of the data bits for the encoder and
multiturn resolutions.
To display the position correctly, the values set in S7T Config must agree with the values
configured in the drive.
0XOWLWXUQ
LQIRUPDWLRQ
(QFRGHU
SXOVHFRXQW
)LQH
UHVROXWLRQ
Number of data bits
Note
In firmware version 4.1 or later, the values from the drive can be transferred to the axis
configuration at the press of a button in S7T Config.

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
