2.3 Segmented CR
Properties
The “segmented” characteristic relates to the configuration of the CR. In the
(non-segmented) CR the I/O bus is continuous and interconnects all 18 or 9 slots;
in the segmented CR, however, the I/O bus consists of two I/O bus segments.
A segmented CR has the following important characteristics:
The communication bus is continuous (global), whilst the I/O bus is divided into
two I/O bus segments of 10 and 8 slots respectively.
One CPU can be inserted per local bus segment.
The two CPUs in a segmented CR may be in different operating states.
The two CPUs can communicate with each other via the communication bus.
All the modules inserted in a segmented CR are powered by the power supply
module at slot 1.
Both segments have a common backup battery.

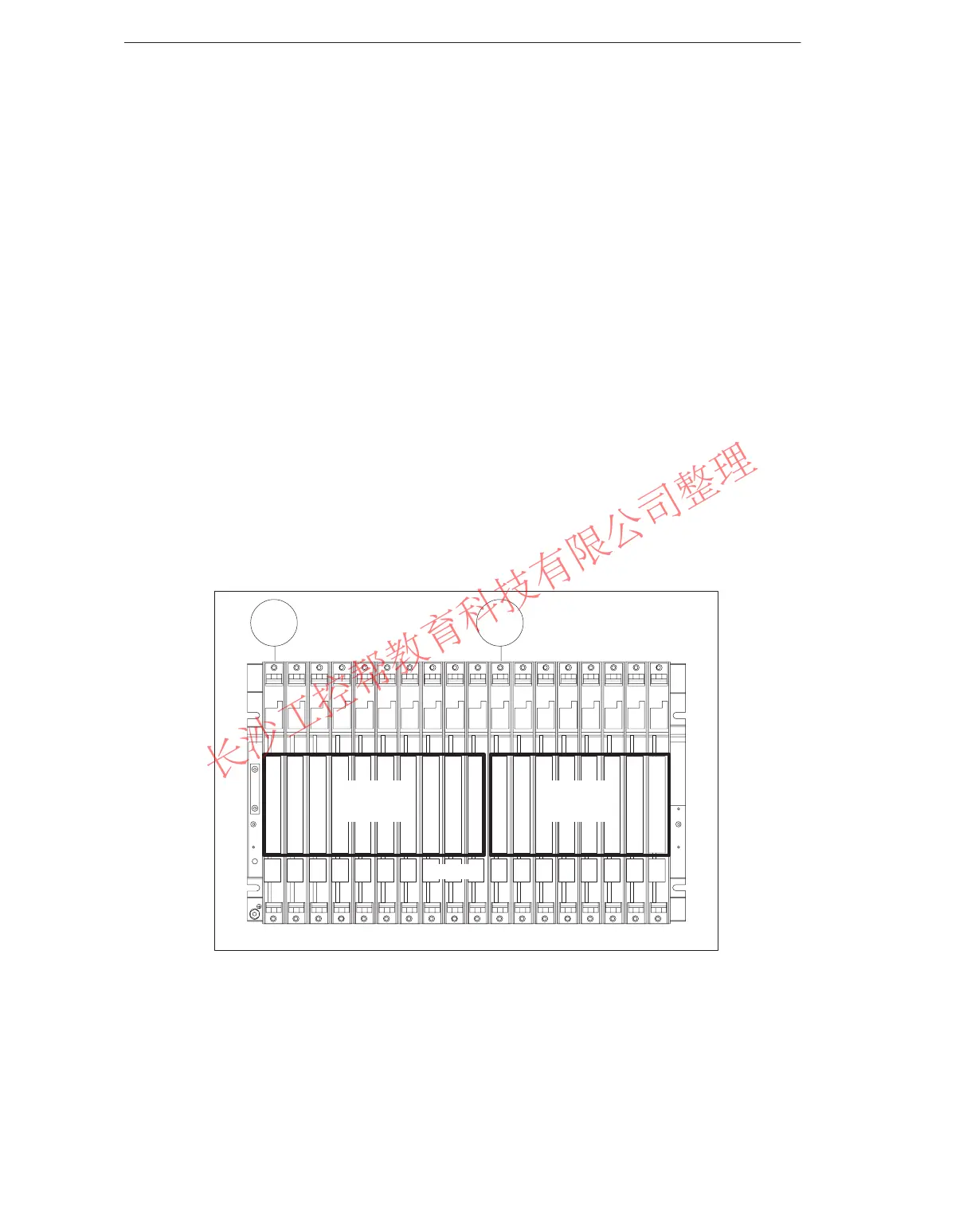

The following figure shows a segmented CR with divided I/O bus and continuous
communication bus.
I/O bus
Segment 1
I/O bus
Segment 2
Communication bus
