Wiring the S7-400
4-34
S7-400 and M7-400 Programmable Controllers, Installation Manual
C79000-G7076-C424-01
4.18 Wiring the Front Connector, Crimp Snap-On Terminals
Procedure
To wire the prepared front connector, follow the steps outlined below:
1. Strip the conductors over approx. 5 mm.
2. Crimp the contacts onto the conductors. You can use a crimping tool which can
be ordered as an accessory for your signal modules.
3. Insert the crimp contacts into the cutouts in the front connector. Start at the
bottom of the front connector.
The order number for crimp contacts can be found in the
Reference Manual
.

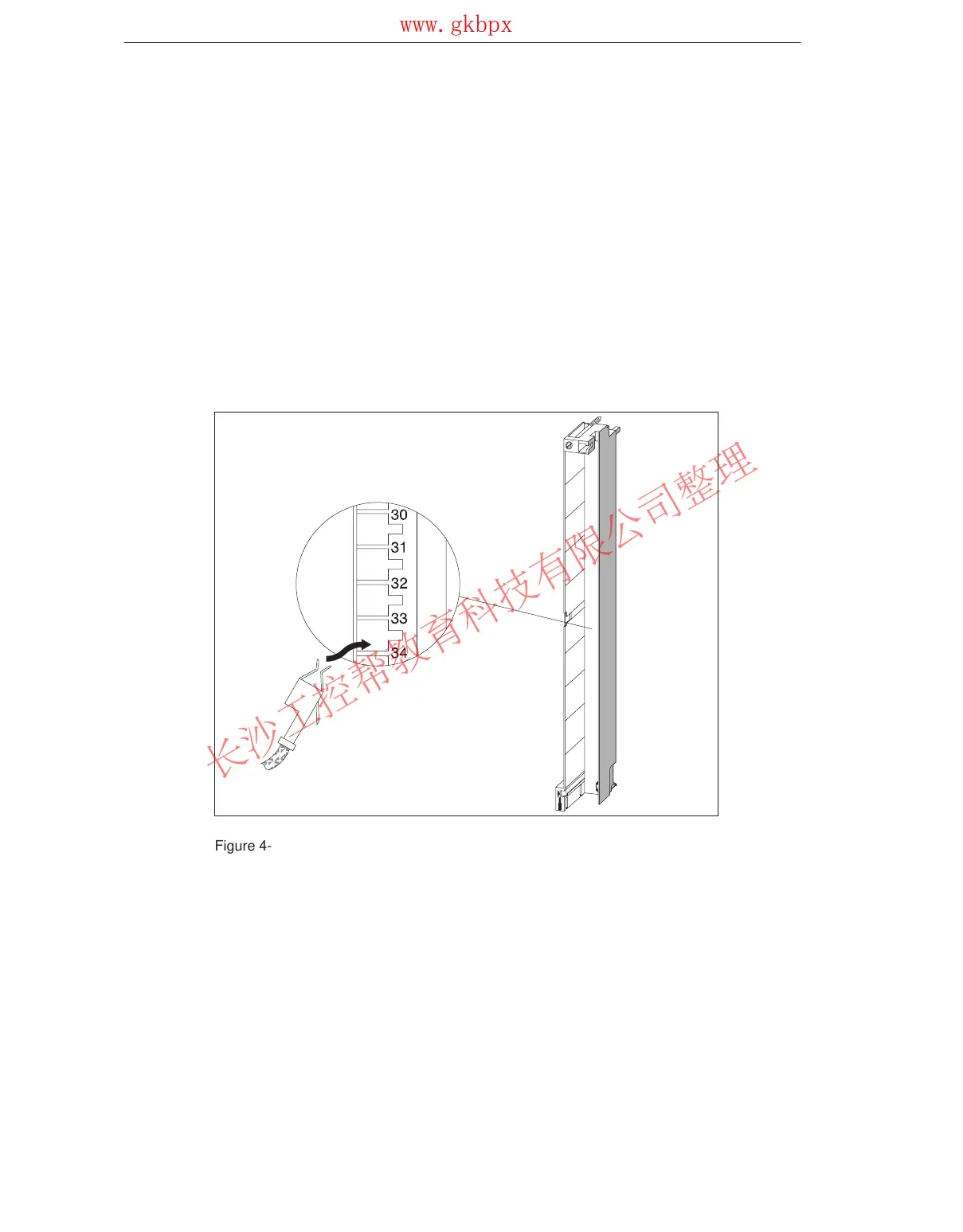

Figure 4-10 Wiring a Front Connector with Crimp Snap-On Terminals
