Wiring the S7-400
4-24
S7-400 and M7-400 Programmable Controllers, Installation Manual
C79000-G7076-C424-01
CR ER
Send IM
Receive IM
Shield/protective
ground bar
< 7 V

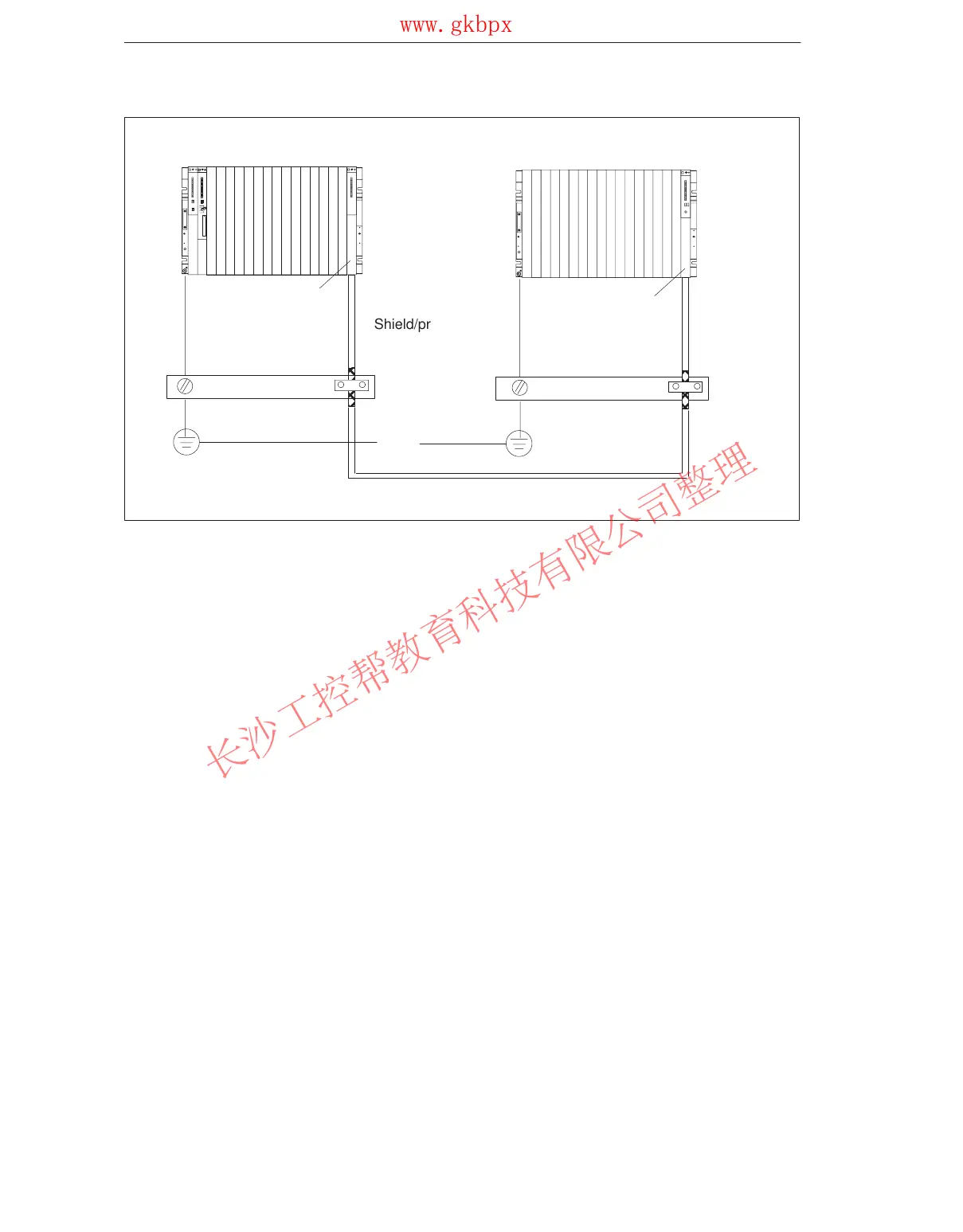

Figure 4-9 Shielding and Grounding the Connecting Cable for a Remote Connection
Special Cases
For remote connections, you must use precut/preassembled connecting cables of
fixed length. When the connecting cables are laid, therefore, there may be excess
lengths. These must be coiled with a bifilar winding and deposited.
