SINUMERIK 840C (IA)
5.3 PLC configuration and PLC machine data (as from SW 3)
5.3.1 PLC configuration
Selection
Diagnosis
Machine
data
Start-up
PLC MD
The PLC configuration display appears on the screen when you press the Dia-
gnosis, Start-up, Machine data and PLC MD softkeys.
Note A brief description of the PLC configuration and PLC machine data appears on
the screen when you press the info key.

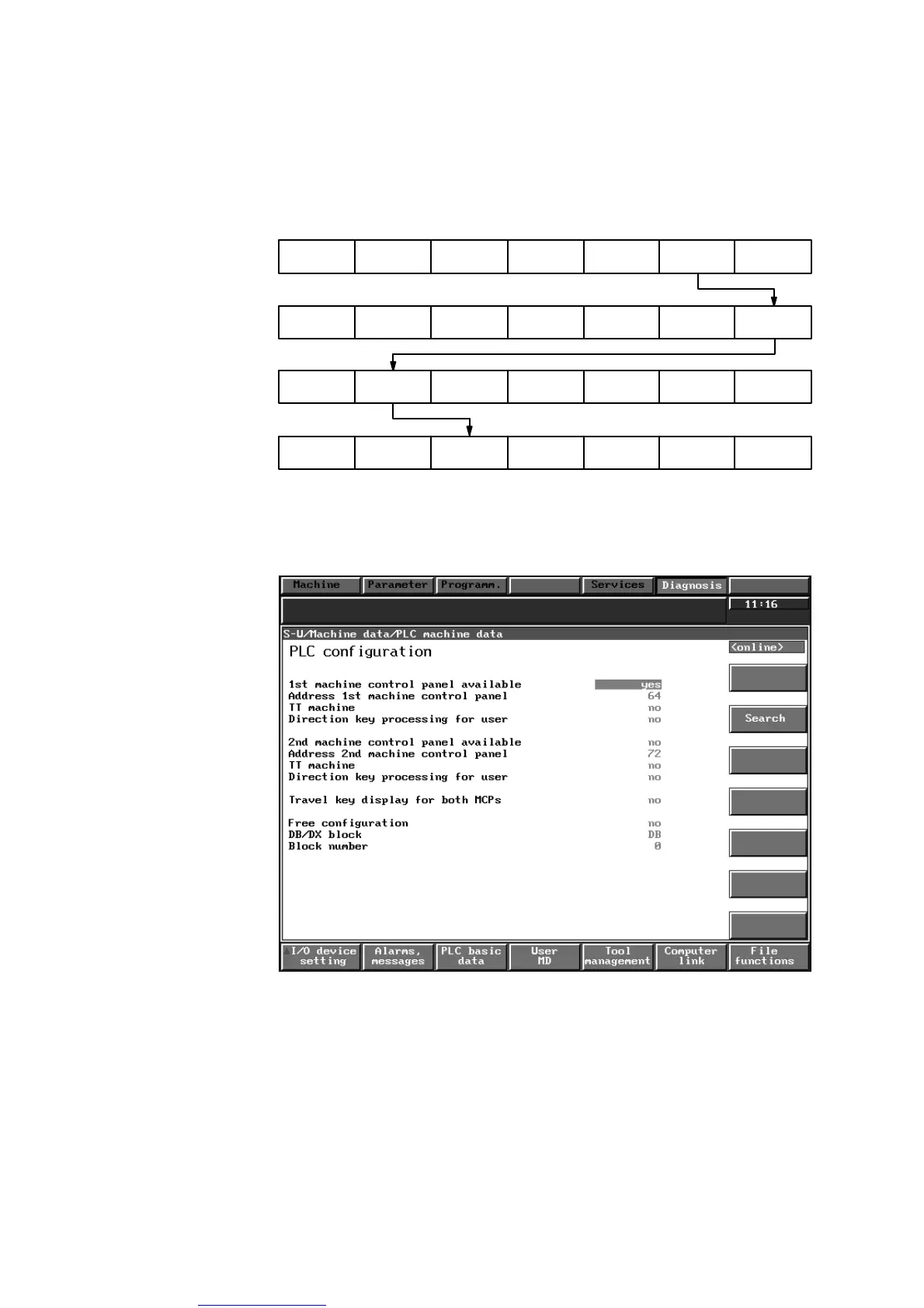

Fig. 5.6
Explanation In this display you configure the current assignments (control panel available,
address, TT machine, etc.) for the 1st and 2nd machine control panel. The con-
tents of the display fields show the settings in the following machine data.
1st machine control panel (MCP)
S Available:
The 1st machine control panel is displayed as available when PLC MD 6066.0
(machine control panel available) is set.
5 Machine Data Dialog (MDD – as from SW 3)
5.3 PLC configuration and PLC machine data (as from SW 3)
