09.95
ï›™
Siemens AG 2001 All Rights Reserved 6FC5197–jAA50
5–50
SINUMERIK 840C (IA)

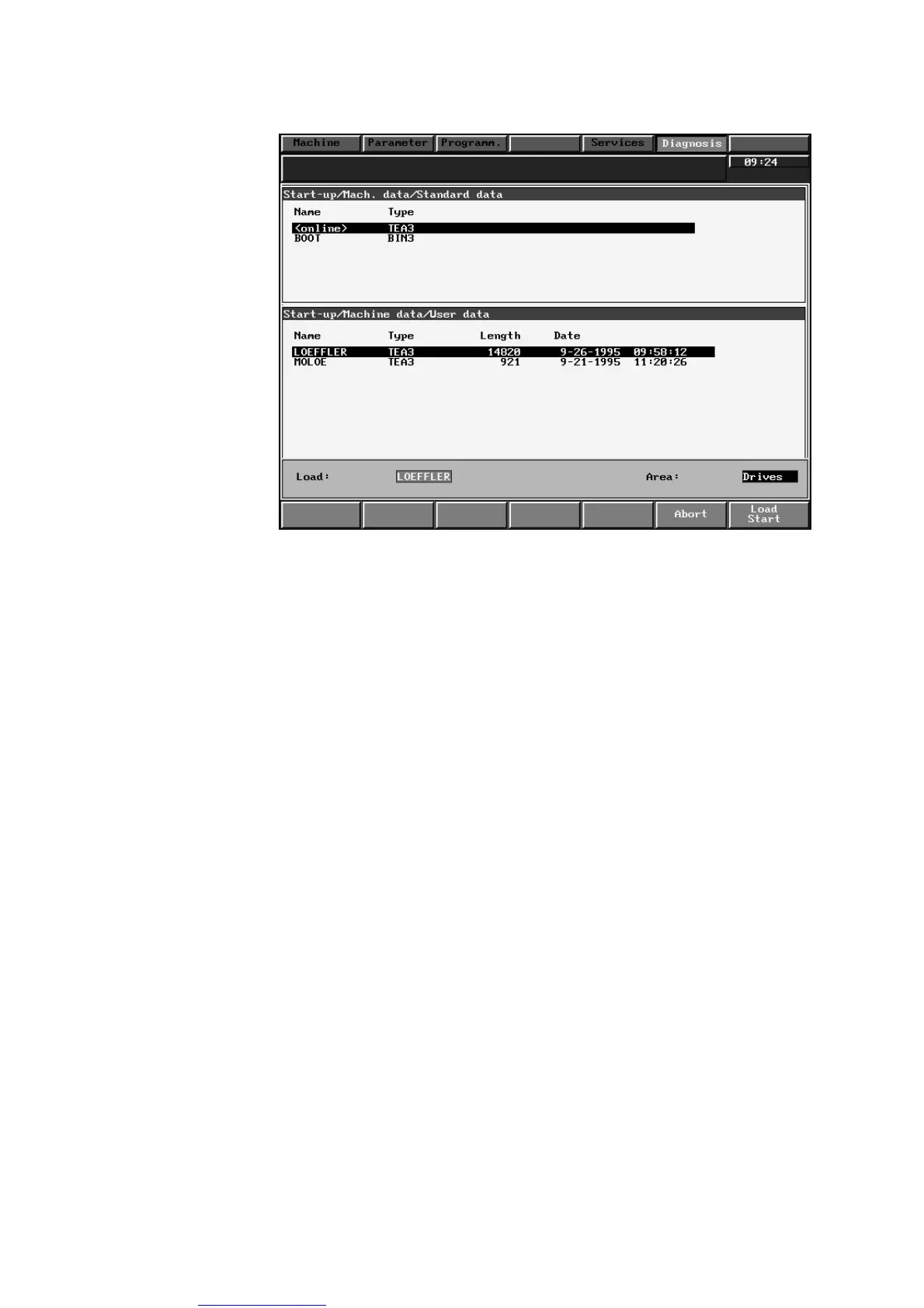

Fig. 5.24
Procedure 2 Select the File functions softkey in the machine configuration display and
operate the Load from disk softkey. A menu bar appears into which you enter
the required TEA3 file together with file name and select the All MD area with the
toggle key. Press the Load start softkey. The data are loaded into the BOOT file.
Confirm these settings with the Accept all + NCKP0 softkey.
Note Please make sure that you correctly enter (assign) the NC MD
S MD 3840, MD 2000 (VSA)
S MD 4600, MD 4000 (HSA)
5.9.8 Additional information when altering the configuration (as from
SW 3)
Notes If one of the 1-axis modules in the grouping is faulty and is to be replaced by a
2-axis module, it is possible that a display line for the 2nd axis does not exist in
the drive configuration display. You must therefore move the following modules
on by 1 slot. However, it is important that you keep the drive number. The advan-
tage of this is that you will not have to reload the motors. Confirm these settings
with the Accept conf + NCKP0 softkey.
It is very easy to remove a module from the grouping temporarily. Enter the num-
ber 0 for the drive number, i.e. the data for the deselected module are retained in
the boot file. Confirm this setting with the Accept conf + NCKP0 softkey.
5 Machine Data Dialog (MDD – as from SW 3)
5.9.7 Reinstallation of existing and new drive components using the existing drive files (TEA3)
