SINUMERIK 840C (IA)
5.5 Cycles machine data (as from SW 3)
Selection
Diagnosis
Machine
data
Start-up
Cycles MD
Press the Diagnosis, Start-up, Machine data and Cycle MD softkeys to call up the
cycles machine data display.

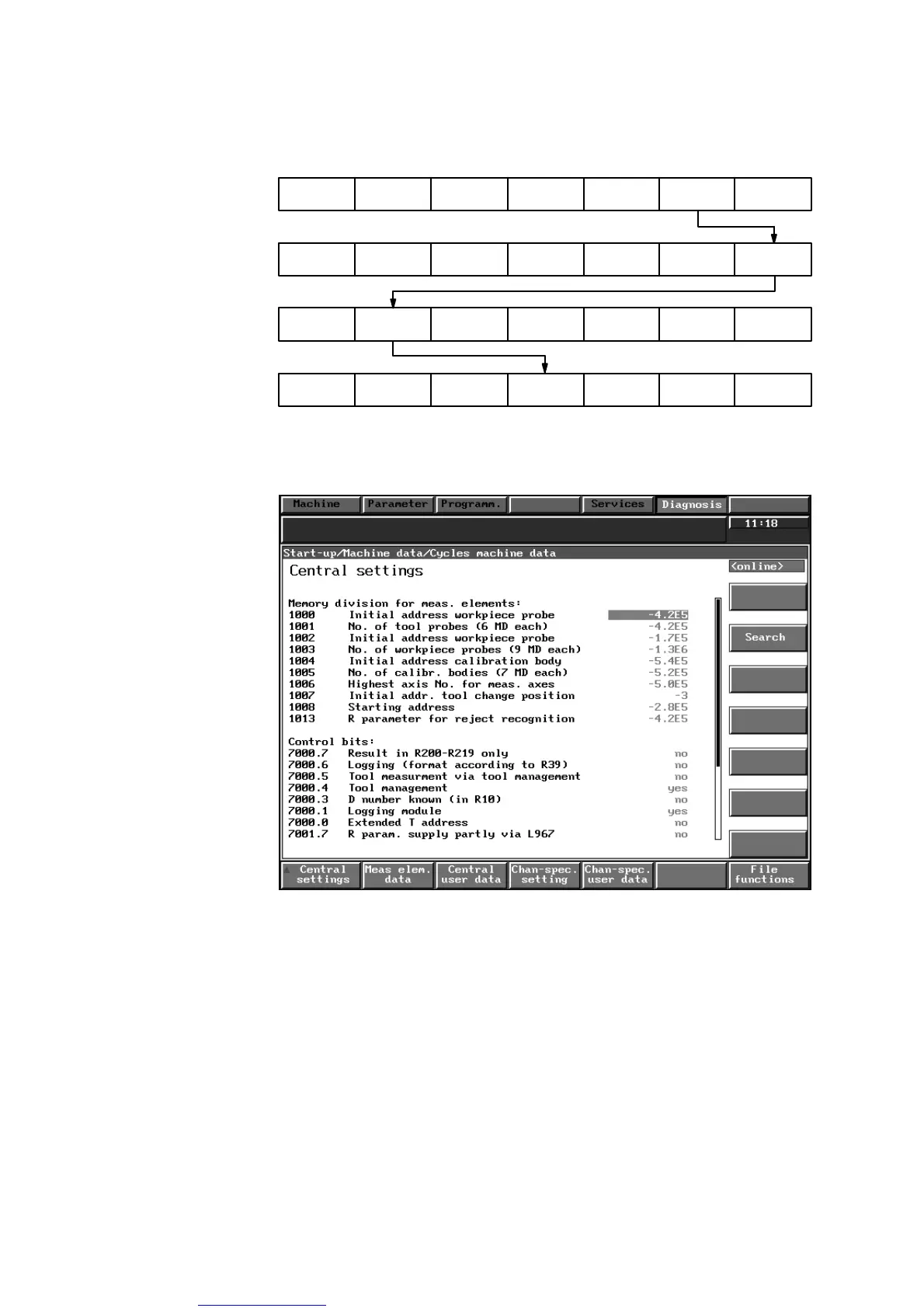

Fig. 5.8
Explanation Measuring cycles and machining cycles are available for standard machining
routines that are repeated several times. The cycles can be assigned the
required machine data via the Cycles MD softkey. In this area you will find
central and channel-dependent cycle machine data. The Central cycles MD are
divided up into memory groups for measuring elements, measuring element data,
control bit, user data and user bits. The Channel-dependent cycles MD are
divided into values for measuring cycles, control bits for measuring cycles, user
data and user bits.
Note The functions of the individual machine data are described in the Installation
Guide, User Guide and Programming Guide for cycles.
5 Machine Data Dialog (MDD – as from SW 3)
5.5 Cycles machine data (as from SW 3)
