Siemens SIMODRIVE 611-D - Procedure for Altering Configurations; Standard Installation of Digital Drives (as from SW 3)

More user manuals on ManualsBase.com
09.95

Siemens AG 2001 All Rights Reserved 6FC5197–jAA50
5–42
SINUMERIK 840C (IA)
5.9 Procedure for altering configurations
5.9.1 Standard installation of digital drives (as from SW 3)
Specifications (Example) Drive modules 1 double axis FDD module
2 single axis FDD module
1 MSD module
Module slots: Slot 1: MSD module
(Installation location) Slot 2: free
Slot 3: free
Slot 4: 2 axis FDD module
Slot 6: 1 axis FDD module

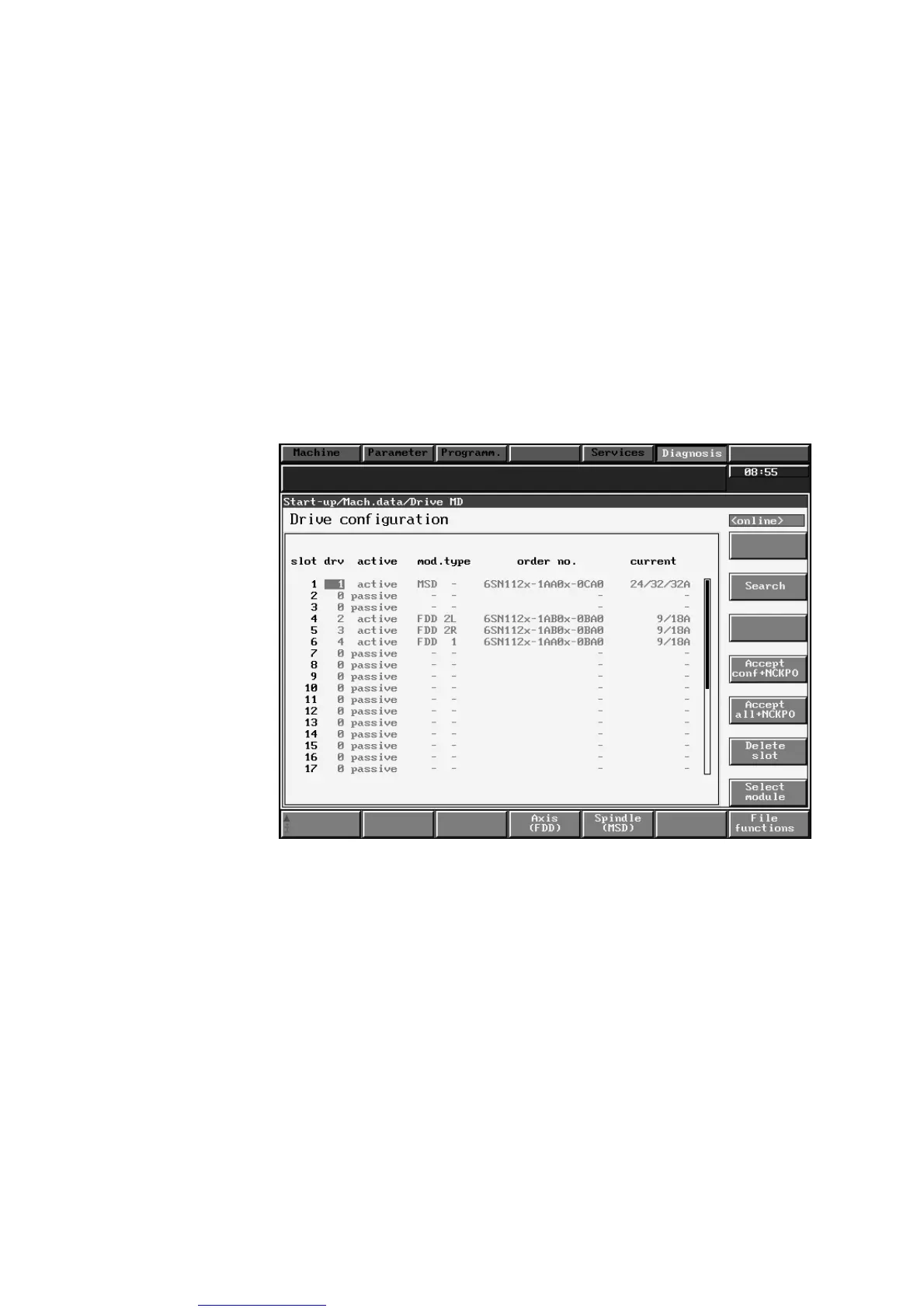

Entering the Set the configuration from the specified values in the configuration display. Select
drive configuration the actual module type using the Select module softkey. Confirm these settings
with the Accept Conf + NCKP0 softkey.
Fig. 5.16
5 Machine Data Dialog (MDD – as from SW 3)
5.9 Procedure for altering configurations
