Copy to
clipboard
Paste from
clipboard
09.95
Siemens AG 2001 All Rights Reserved 6FC5197–jAA50
9–7
SINUMERIK 840C (IA)
D Copying / pasting measuring parameter files into / from the clipboard
With these softkeys you can re-use measuring parameter files that have been stored
for the axis X, for example, for other axes as well (e.g. for axis Y). The same function
can also be used for spindles.
Note:
S It is not possible to copy measuring parameter files from axes to spindles and vice
versa.
S Measuring parameter files that have been backed up to measure in a current con-
trol loop, for example, cannot be copied to other measuring functions such as mea-
suring in a speed control loop.
S A copy of a measuring parameter file in the clipboard is invalid as soon as the cor-
responding display is exited.

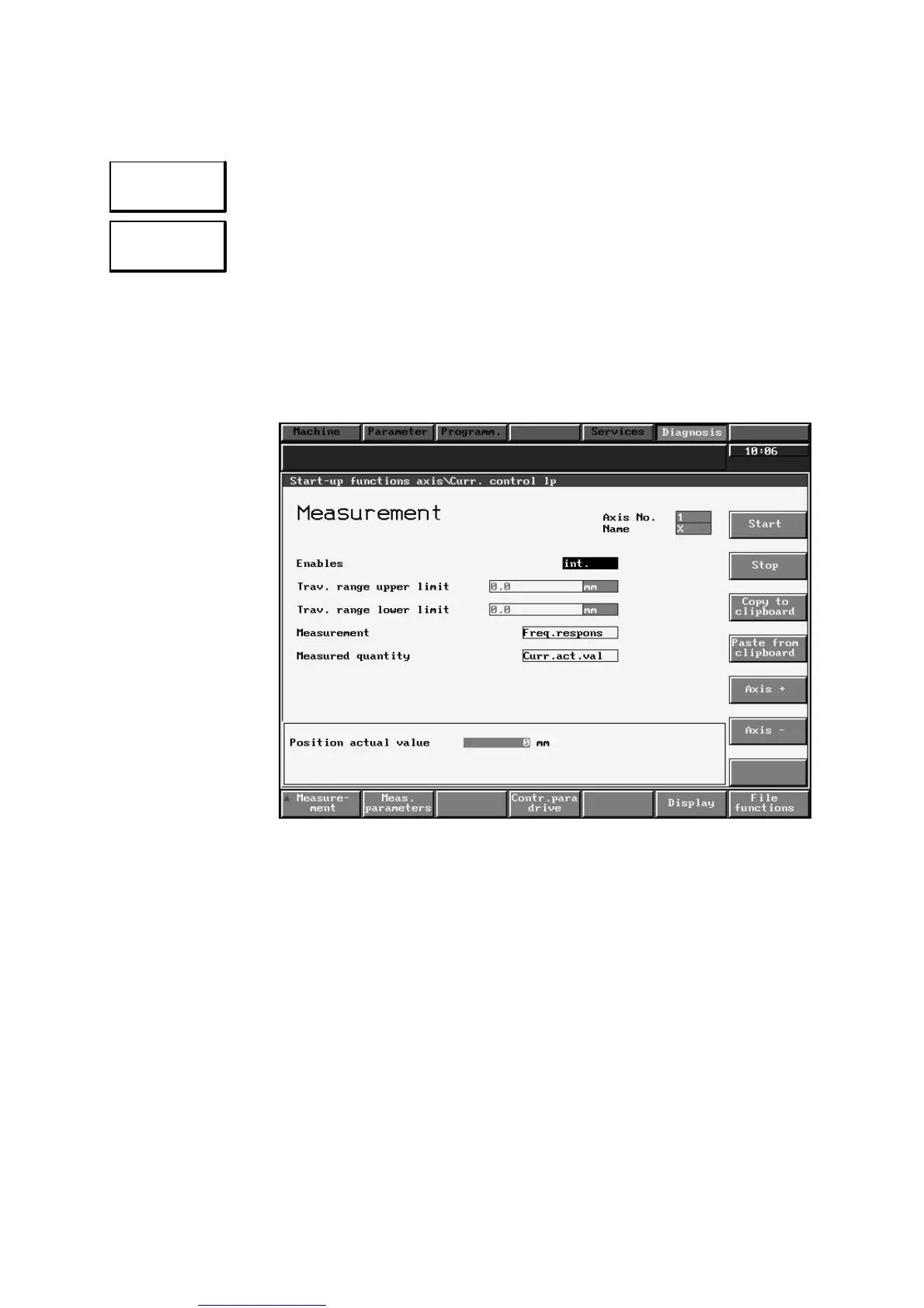

Fig. 9.2 Measuring in a current control loop for axes
Note The File functions softkey can be used to read in a measuring parameter file with the
softkey “Load from disk”. In the basic display assigned to the measuring function in
question and under the softkey “Measuring parameters” it is possible to change values
before accepting them for another axis. With the softkey “Copy to clipboard”, the mea-
suring parameters are copied into the clipboard for the currently selected axis. To ac-
cept the values for another axis, you can select another axis with the softkeys “Axis+”
and “Axis–”. The softkey “Paste from clipboard” is used to insert the measuring param-
eters of the old axis from the clipboard for the newly selected axis.
The procedure is the same for the measuring functions for spindles except that the
softkeys “Spindle+” and “Spindle–” are used in the initial display.
Explanation The results of the drive servo start-up functions: Measurement current control loop,
Measurement speed control loop and Measurement position control loop are
displayed.
Note The value specification e.g. –2.08 e+02 is equivalent to :
–2.08 x 10
2
= –208
9 Drive Servo Start-Up Application (as from SW 3)
9.1.2 Softkeys
