09.95
ï›™
Siemens AG 2001 All Rights Reserved 6FC5197–jAA50
9–32
SINUMERIK 840C (IA)

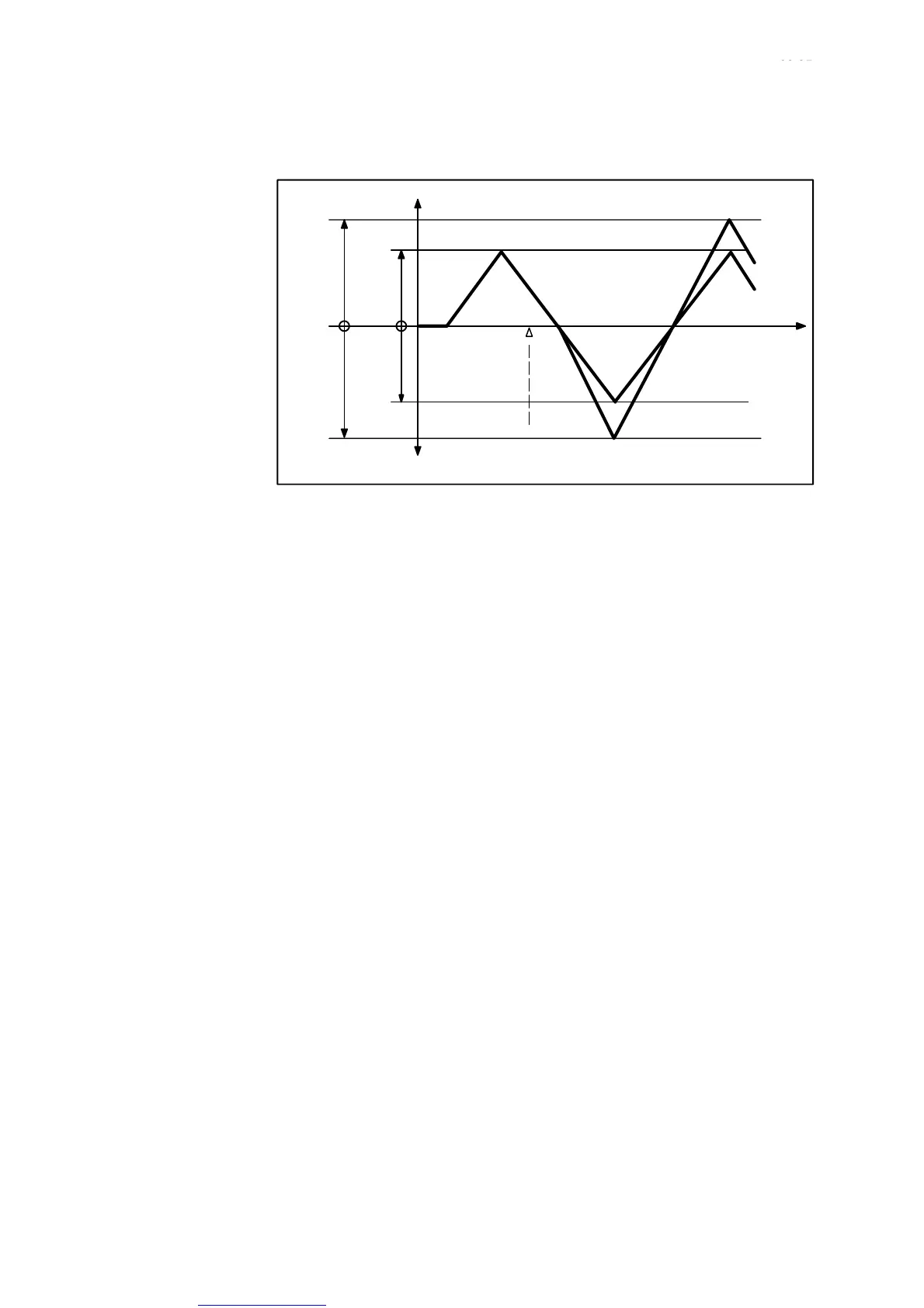

D Effect of scaling on the signal waveform
t
–A
+A
nset
E3
0.65 A
Fig. 9.13
Conditions Operating mode : Speed setpoint (position controller
cycle)
Signal type : Sawtooth
E3 : Change in scaling value by
user (e.g. from 65% to 100%)
A : Amplitude (+/–)
Explanation A new scaling value is input via the Start softkey at instant in time E3. The resul-
tant increase in amplitude is not input as a sudden step change, but is delayed
via a filter.
9 Drive Servo Start-Up Application (as from SW 3)
9.3.3 Signal waveforms of function generator (as from SW 3)
10.94
