SIEMENS
Service 3
09.95
Siemens AG 2001 All Rights Reserved 6FC5197–jAA50
9–67
SINUMERIK 840C (IA)
You can select the SIEMENS Service 3 function with this vertical softkey.
The displayed signals are not explained here.
The SIEMENS Service 3 softkey function is relevant only
for SIEMENS servicing procedures and should be used
only after consultation via the hotline.

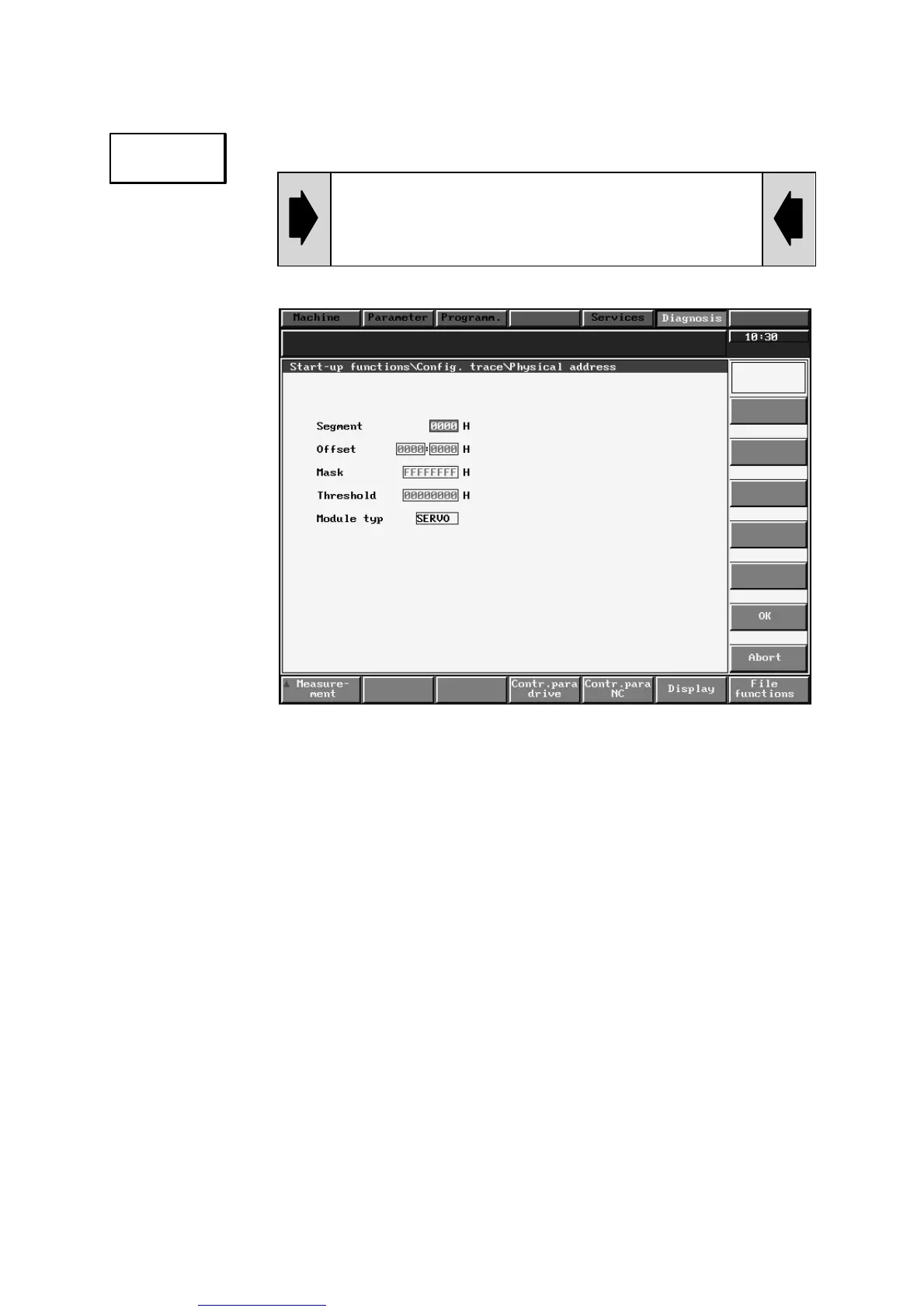

Fig. 9.36
Physical addresses can be defined in this display. The toggle field “Module type”
has been extended to include “NCK” (from SW 5).
9 Drive Servo Start-Up Application (as from SW 3)
9.6.1 Selection of measured signal
