4 Installing Router Kit components in the installation enclosure
4.2 Installing the Router Kit WLAN / LTE in the installation enclosure
Application example for SIMOTICS CONNECT 400 - Router KitInbetriebnahme- und Montagehandbuch 17

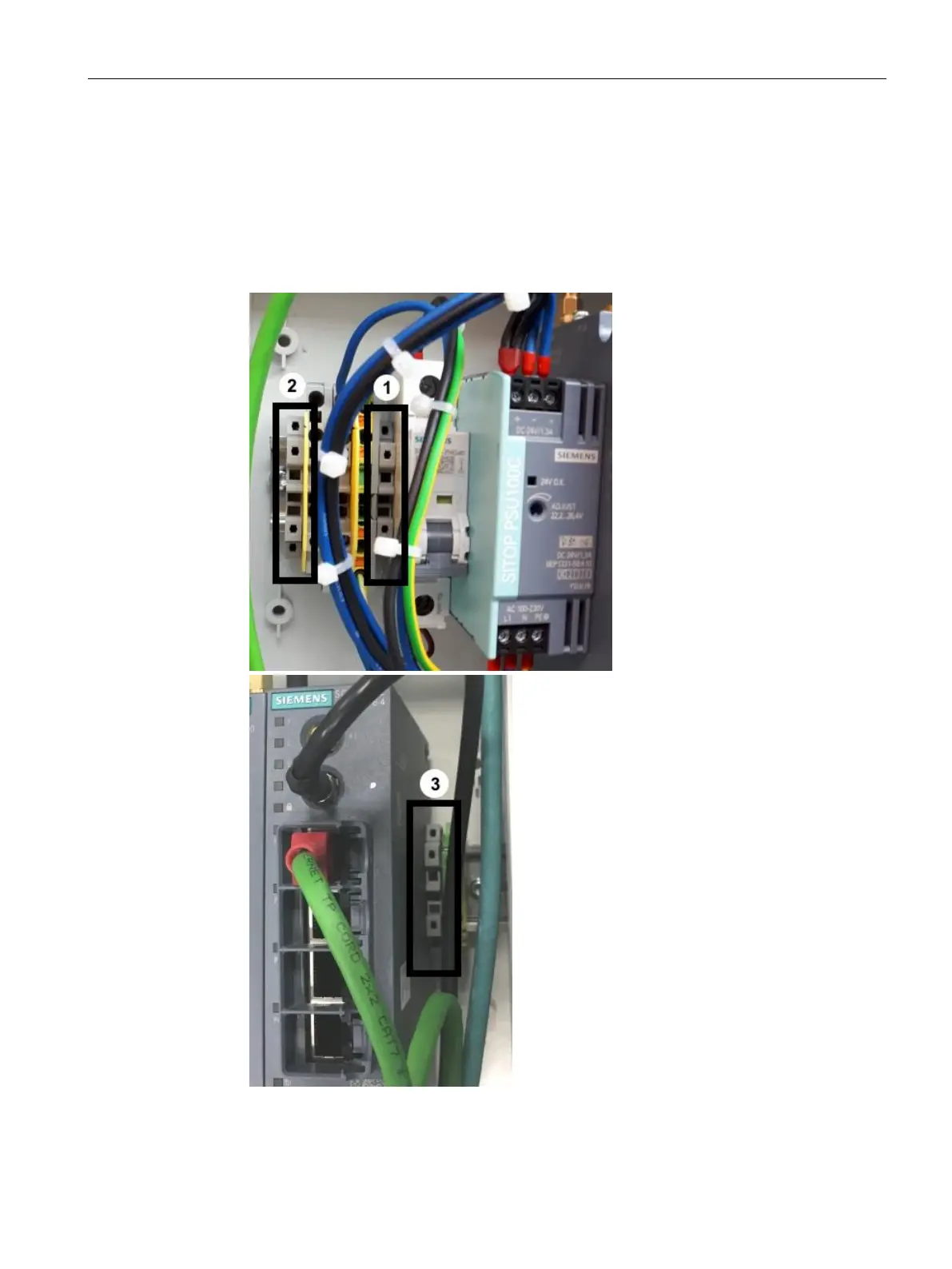

13. Mount the three end retainers on the DIN rail.
– Mount the first end retainer ① between SITOP compact and yellow/green universal
terminal with yellow intermediate plate.
– Mount the second end retainer ② to the left of the last gray universal terminal.
– Mount the third end retainer ③ between SCALANCE M876-4 and the protective
conductor terminal block.
