Siemens SIMOTICS CONNECT 400 Manual

4 Installing Router Kit components in the installation enclosure
4.2 Installing the Router Kit WLAN / LTE in the installation enclosure
Application example for SIMOTICS CONNECT 400 - Router KitInbetriebnahme- und Montagehandbuch 18
14. Pull the cables through the pre-drilled holes at the bottom and secure the cable glands
with the locknuts.

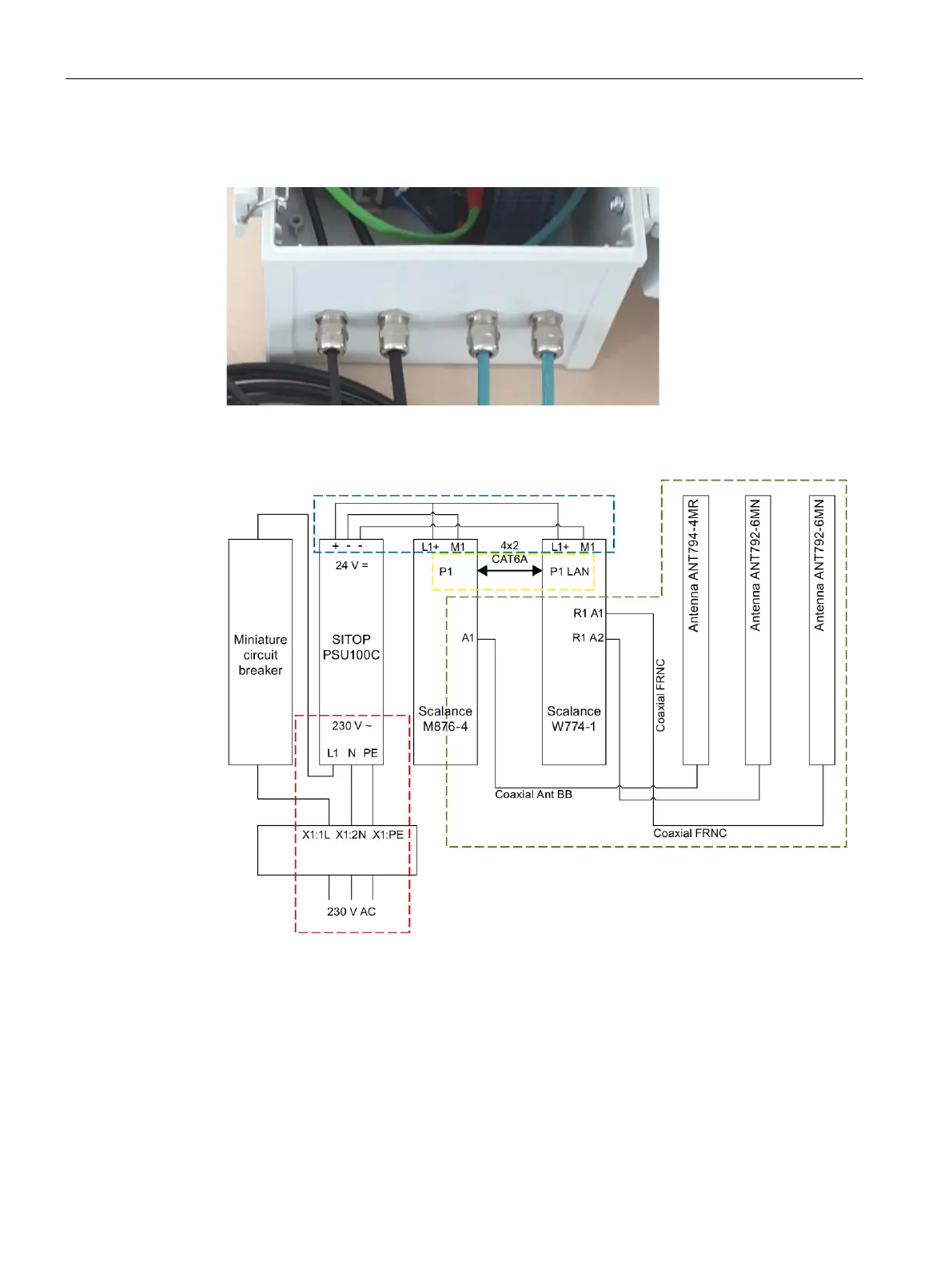

Figure 4-9 Attached cable glands
15. Wire the elements as shown in the terminal connection diagram.
Figure 4-10 Terminal connection diagram
