4 Installing Router Kit components in the installation enclosure
4.4 Installing the Router Kit WLAN / LAN in the installation enclosure
Application example for SIMOTICS CONNECT 400 - Router KitInbetriebnahme- und Montagehandbuch 25
18. Secure the DIN rail with two combi screws.
Screw in the combi screws with a washer, high-tension spring washer and hexagon nut
from the rear of the installation enclosure.

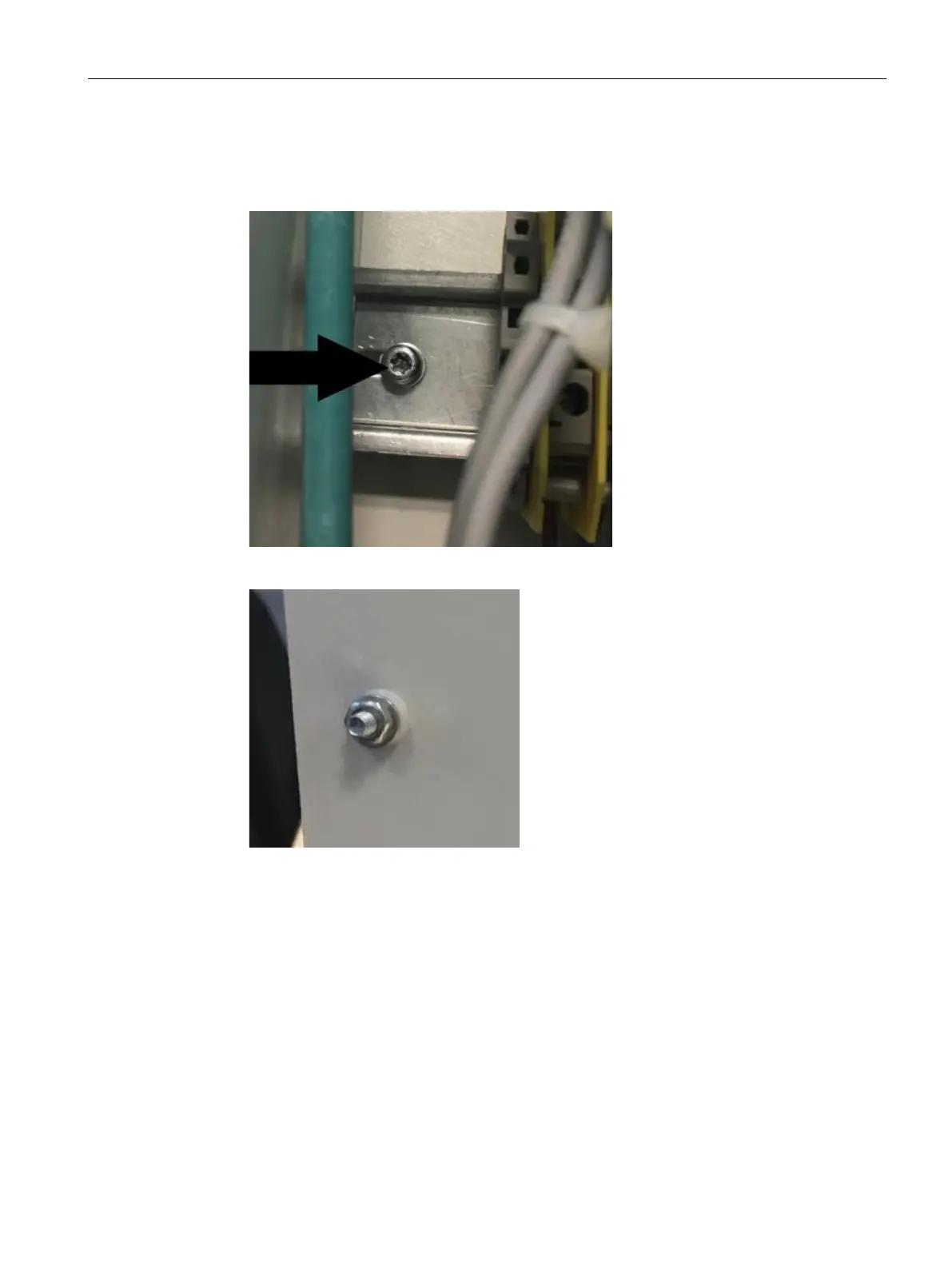

Figure 4-15 View of front, secured combi screw
Figure 4-16 View of rear, secured combi screw with washer, spring washer and nut
