4 Installing Router Kit components in the installation enclosure
4.4 Installing the Router Kit WLAN / LAN in the installation enclosure
Application example for SIMOTICS CONNECT 400 - Router KitInbetriebnahme- und Montagehandbuch 26
19. Attach the SITOP compact 24V/1.3A and the SCALANCE W774-1 to the DIN rail.

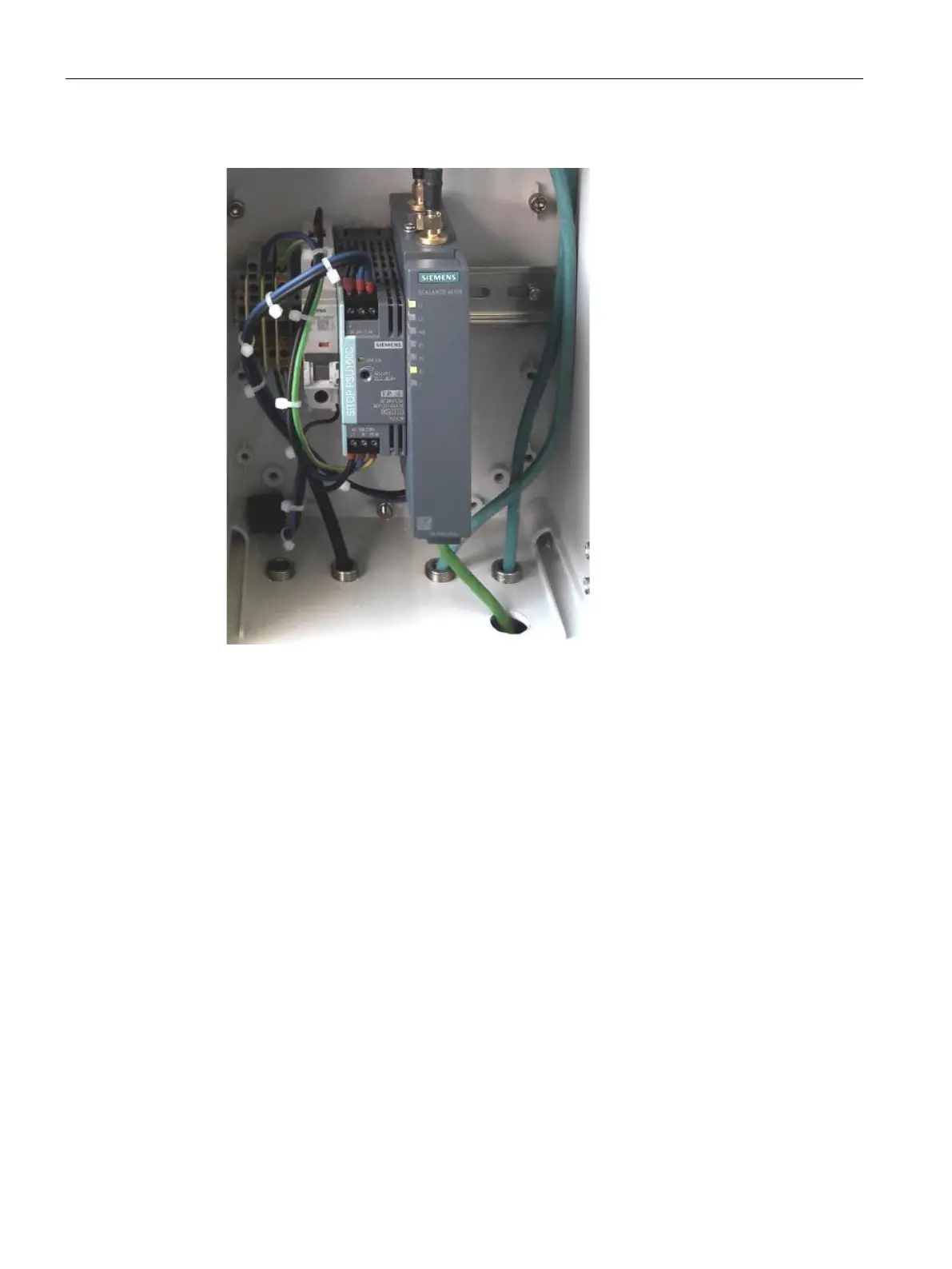

Figure 4-17 Fuse, SITOP compact 24V/1.3A, SCALANCE W774-1 to the right
