5 Commissioning the Router Kit WLAN / LTE
5.3 Setting the IP address of the SCALANCE W774-1
Application example for SIMOTICS CONNECT 400 - Router KitInbetriebnahme- und Montagehandbuch 49
47. Set the check mark for "Assign IP parameters" and set the following properties:
– IP address: 192.168.1.20
You can specify any IP address. It should be in the same address range as the IP
address of the LTE module.
Make sure that you do not assign the same IP address as for the PC (described under
"Setting up interfaces (page 43)").
– Important: Set the check mark for "Use router".
– As IP address, enter the IP address of the LTE module (here: 192.168.1.1).

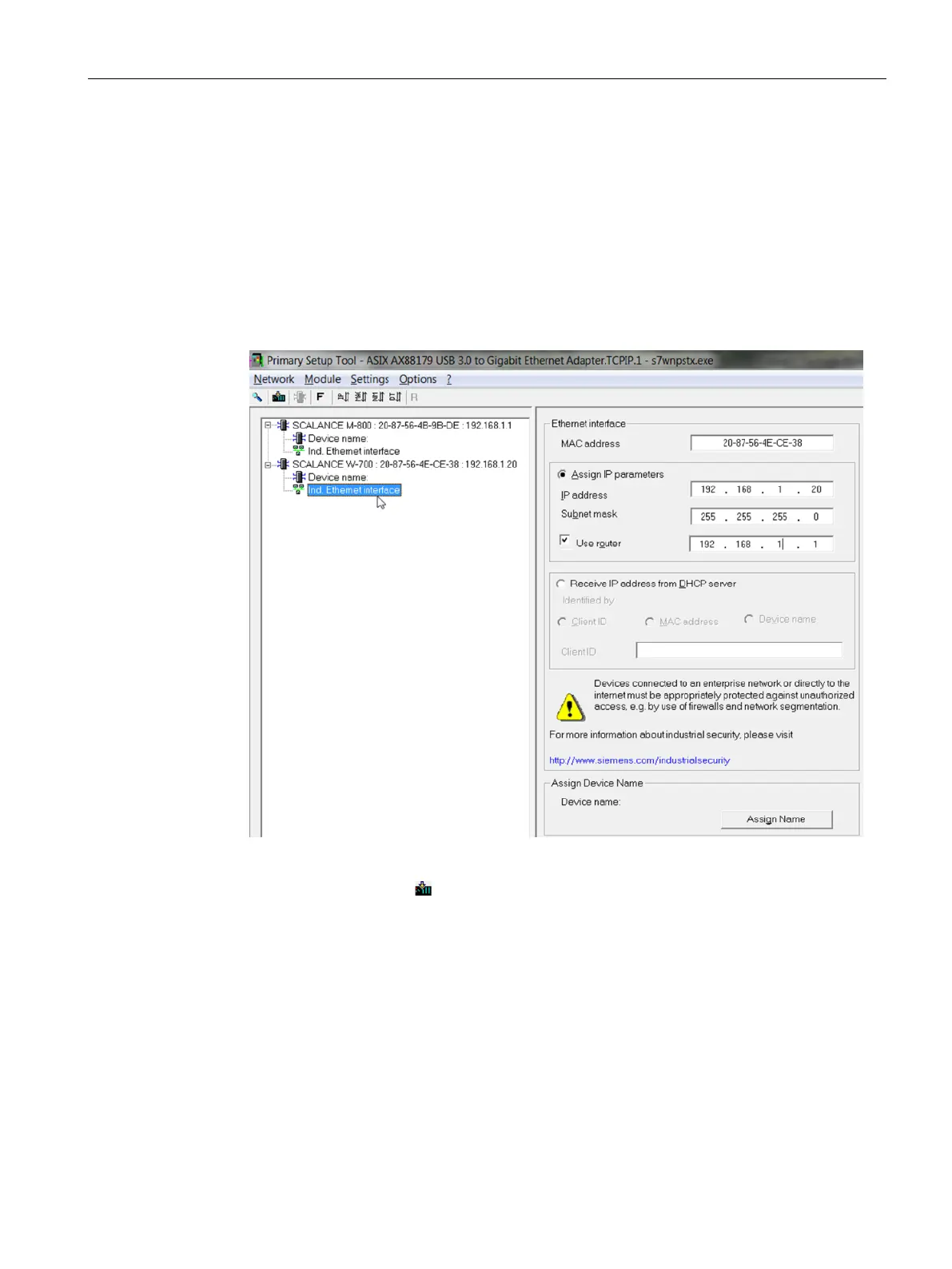

Figure 5-9 Entering the Ind. Ethernet interface field
48. Click the "Load" button and confirm the subsequent dialog
with "Yes".
49. Close the PST.
