Mechanical mounting
6.4 Installing the stator in the spindle housing
SIMOTICS M-1FE2 built-in motors
Hardware Installation Manual, 04/2020, A5E50074509B AA
121
All surfaces must be free from contamination, rust, sharp edges, shrink holes, damage
and machining marks, in particular:
– The ring slots for the O-ring seals
– The cooling thread on the cooling jacket (for the stator with cooling jacket variant)
– The spindle housing
– The cable duct in the spindle housing
– The drain holes
3. Apply a suitable anti-corrosion agent for steel to the stator and spindle housing surfaces
that do not come into contact with the cooling fluid.

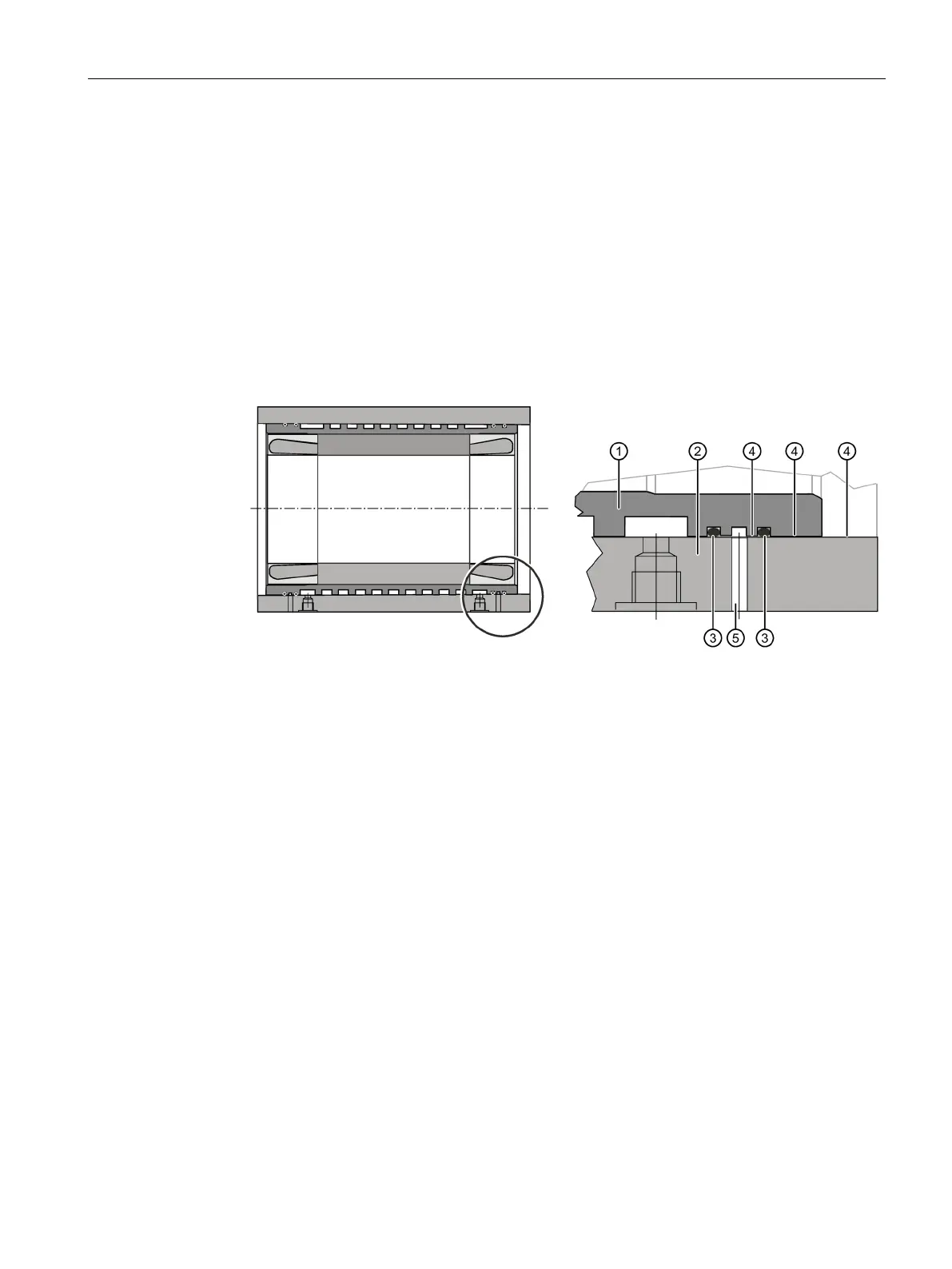

The diagram shows an example of a fully installed stator.
①
Stator core with cooling jacket
②
Spindle housing
③
O-ring seal
④
Surface coated with anti-corrosion agent
⑤
Drain hole
Figure 6-19 Applying the anti-corrosion agent
