Siemens SIMOTICS Series Hardware Installation Manual

Preparing for use
5.2 Shipping and packaging
SIMOTICS M-1FE2 built-in motors
Hardware Installation Manual, 04/2020, A5E50074509B AA
81
Scope of delivery of the synchronous version of the 1FE2
1
APM rotor core
2a
Stator with cooling jacket or
2b
optional stator without cooling jacket
3
Four O-ring seals (for version with standard cooling jacket)
4
Rating plate (type plate)
not illustrated
Balancing weights
not illustrated Safety information and instruction leaflet. The URL to download the installation
instructions is provided on the instruction leaflet
not illustrated
SINAMICS converter settings and circuit diagram as adhesive label

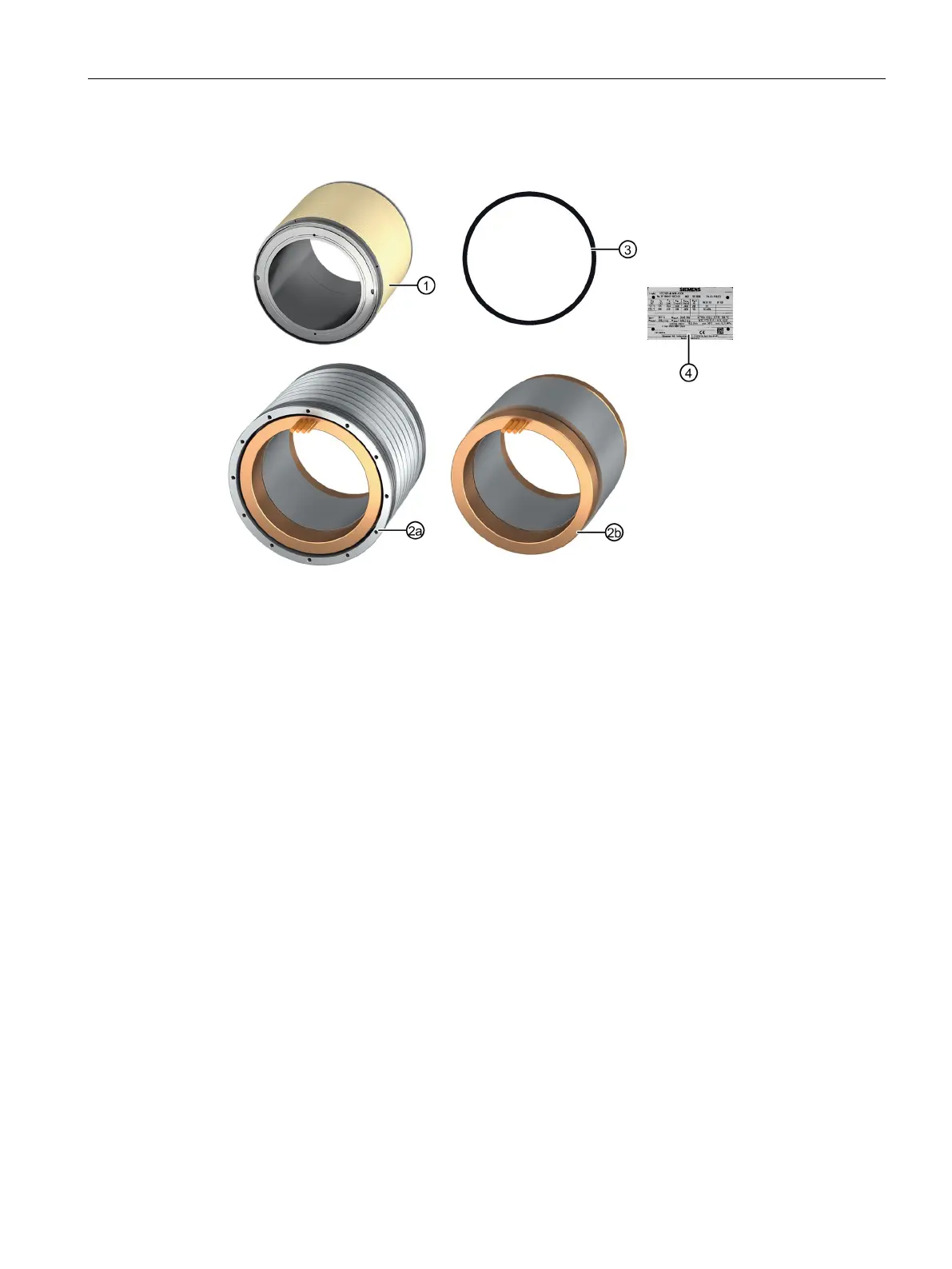

Figure 5-1 Scope of delivery of the synchronous version of the 1FE2
