Siemens SIMOTION D425 User Manual

Description
1.9 CompactFlash card
D4x5
Manual, 05/2009
27
1.9.2 CompactFlash card
Type plate information

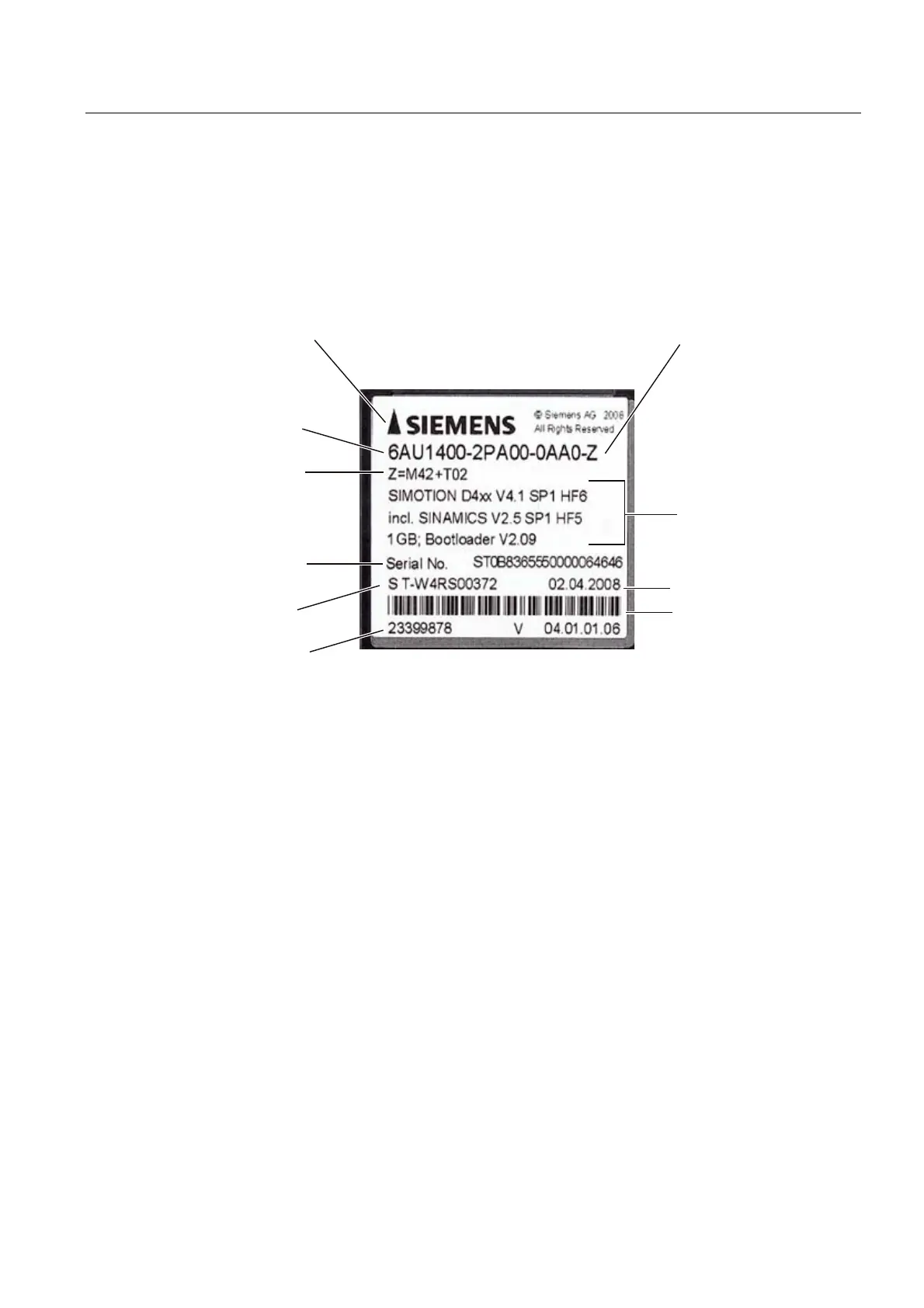

The following figure shows you all the information included on the type plate of the CF card.
0DUNLQGLFDWLQJ
&)FDUG
LQVHUWLRQ
GLUHFWLRQ
2UGHUQXPEHU
/LVWRI=RSWLRQV
OLFHQVHVRQ&)
FDUGDVGHOLYHUHG
+:VHULDO
QXPEHUVRI
&)FDUG
8QLTXHQXPEHU
&RGH
IRU&)FDUGZLWK
=RSWLRQ
3URGXFWDQG
YHUVLRQGHVLJQDWL
RQFDUGFDSDFLW\
ERRWORDGHUYHUVLRQ
'HOLYHU\QRWHQXPEHU
'DWHRI
PDQXIDFWXUH
%DUFRGHLQFO
RUGHUQXPEHU
Figure 1-8 CompactFlash card
Pre-installed runtime licenses
From V4.1 SP1 HF6, pre-installed licenses are printed on the type plate of the CF card as a
Z option on the label underneath the order number.
Example
Example with Z option for D425 MultiAxes Package + two TControl licenses:
6AU1400-2PA00-0AA0-Z
Z=M42+T02
A maximum of 7 different Z options are printed on the label of the CF card. When there are
more than 7 different Z options, the text "Z = see delivery order" is printed on the CF card in
place of the Z options.
