Technical Data
4.5 Input and output circuit
D4x5
Manual, 05/2009
61
4.5 Input and output circuit
Protective circuit

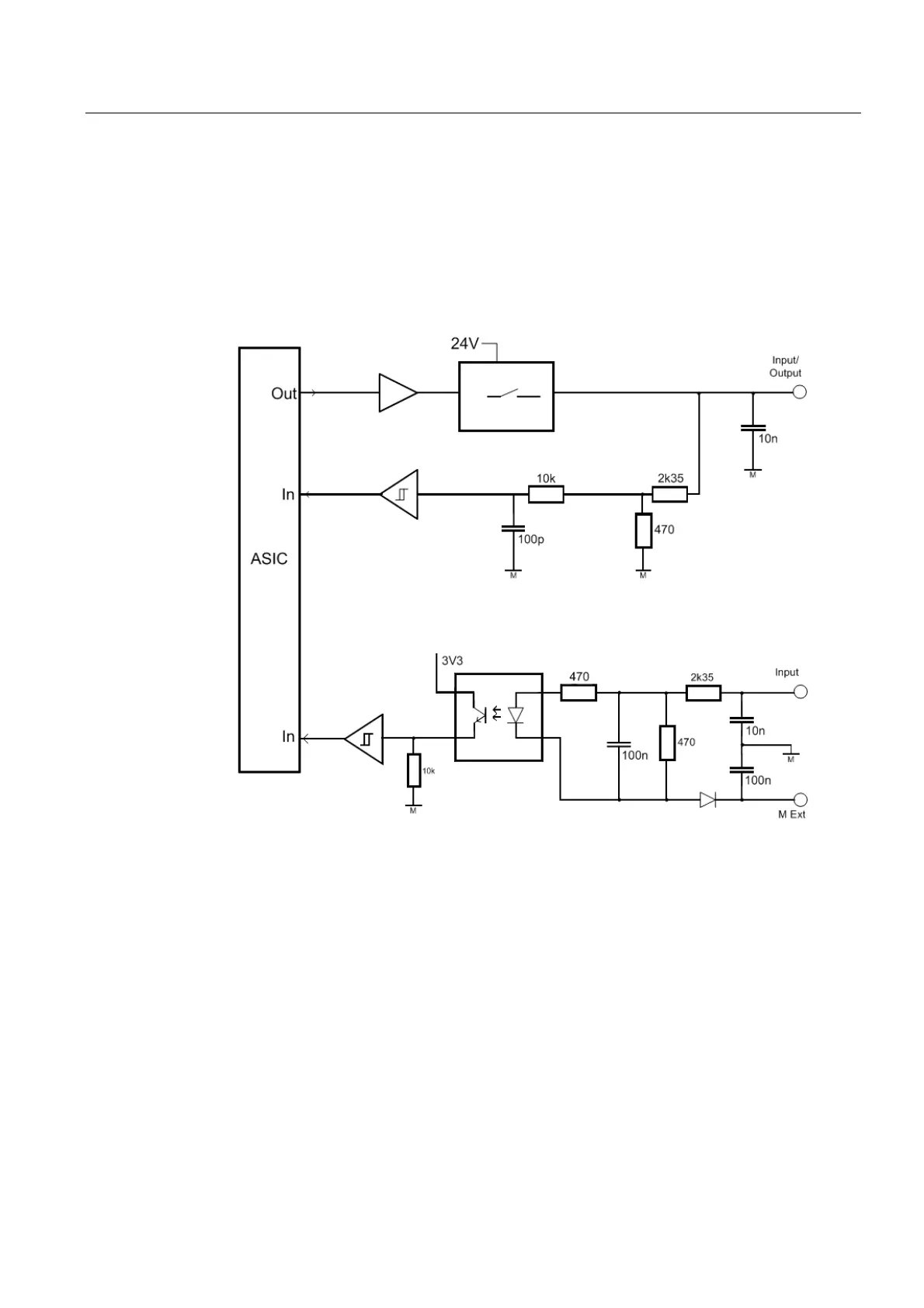

Figure 4-1 SIMOTION D4x5/CX32 input and output circuits
