Siemens SIMOTION D425

Interfaces
3.7 Slot for CompactFlash Card
D4x5
50 Manual, 05/2009
3.7 Slot for CompactFlash Card
Features
Type: 50-pin connector
This interface should only be used to insert a special SIMOTION CompactFlash Card
(CF card).
Consult the relevant references for detailed information about the SIMOTION CF card.
See also
SIMOTION CompactFlash Card (Page 27)
3.8 Measuring sockets
Application
The X131-X134 measuring sockets are used to output analog signals. Any interconnectable
signal can be output to any measuring socket on the control unit.
CAUTION
The measuring sockets should be used exclusively for servicing purposes.
The measurements may only be performed by appropriately trained specialists.
The measuring sockets are suited for multiple-spring wire connectors with a diameter of
2 mm.

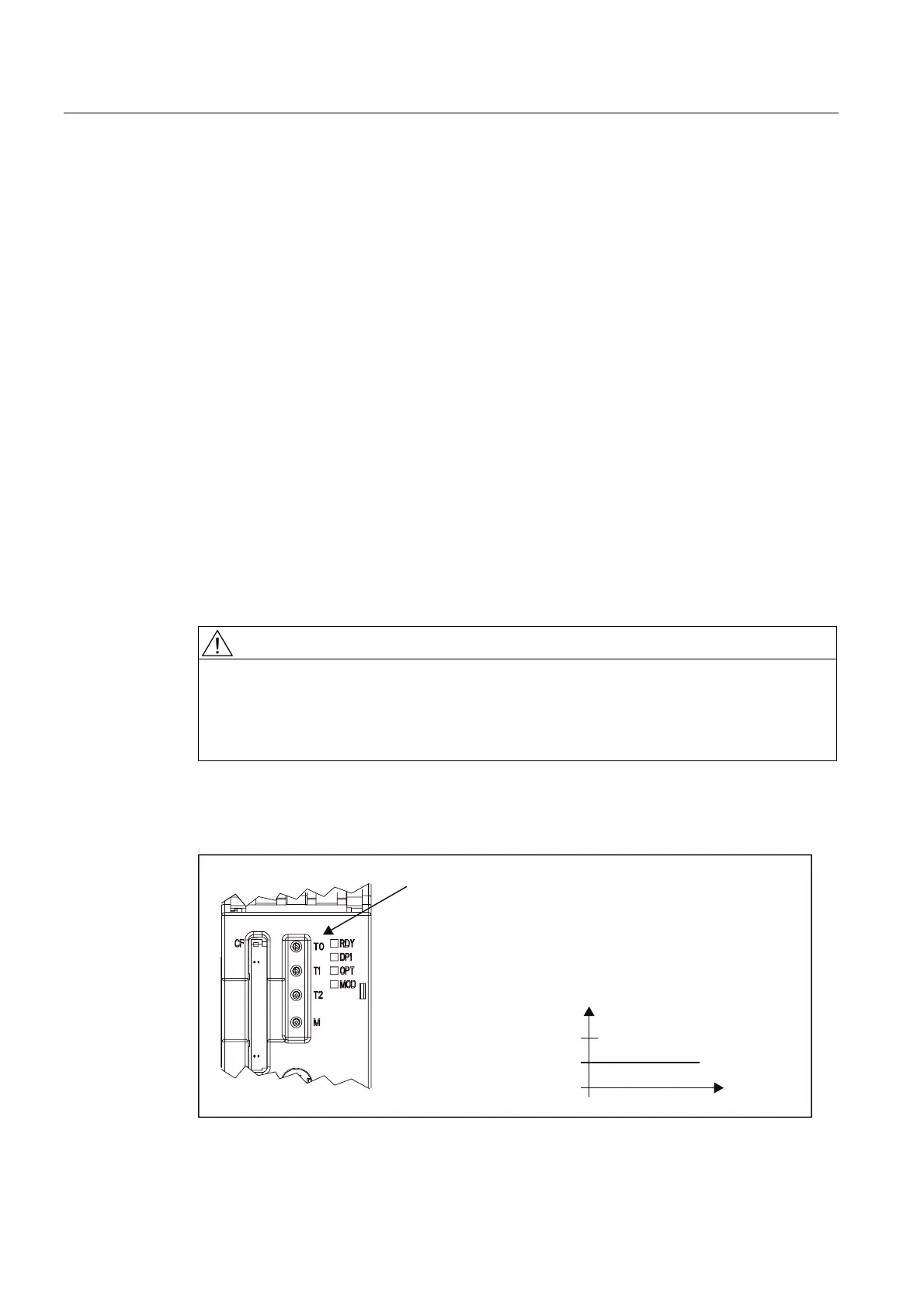

Measuring socket position
9
9
9
RIWKHPHDVXULQJVLJQDO
0HDVXULQJVLJQDO
IRUWKHGHIDXOWVFDOLQJVHWWLQJ

0HDVXULQJVRFNHWVPP
7 0HDVXUHPHQW VRFNHW 
7 0HDVXUHPHQW VRFNHW 
7 0HDVXUHPHQW VRFNHW 
0 5HIHUHQFH
Figure 3-7 Measuring socket arrangement
