7.3.4 Installing the terminating connector
Procedure
Note
If you never remove the HT8 from the connection module, it is not necessary to attach the
terminating connector.


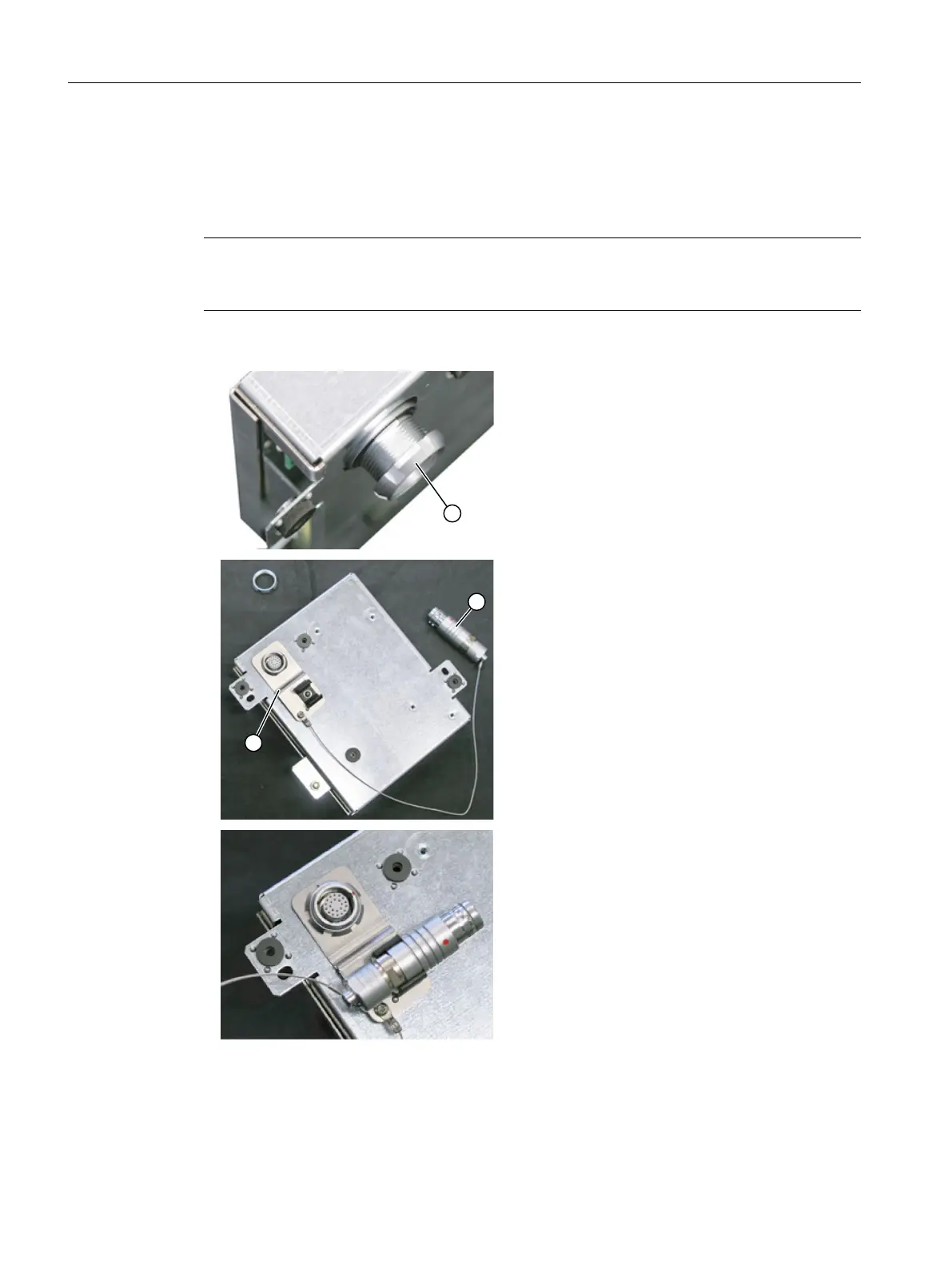

1. Unscrew the 󹪝xing nut ①.


2. Attach the bracket ① for the terminating
connector ②.
3. Tighten the retaining nut and insert the
terminating connector into the bracket.
Connecting
7.3PN Basic connection module
Handheld Terminal HT 8
