Assigning a name
If, as described above, the system automatically follows the "New" path, an additional message
will appear: "This operator panel (TCU) must be new, because there are no inactive panels." This
message will not appear if "New" is selected manually.

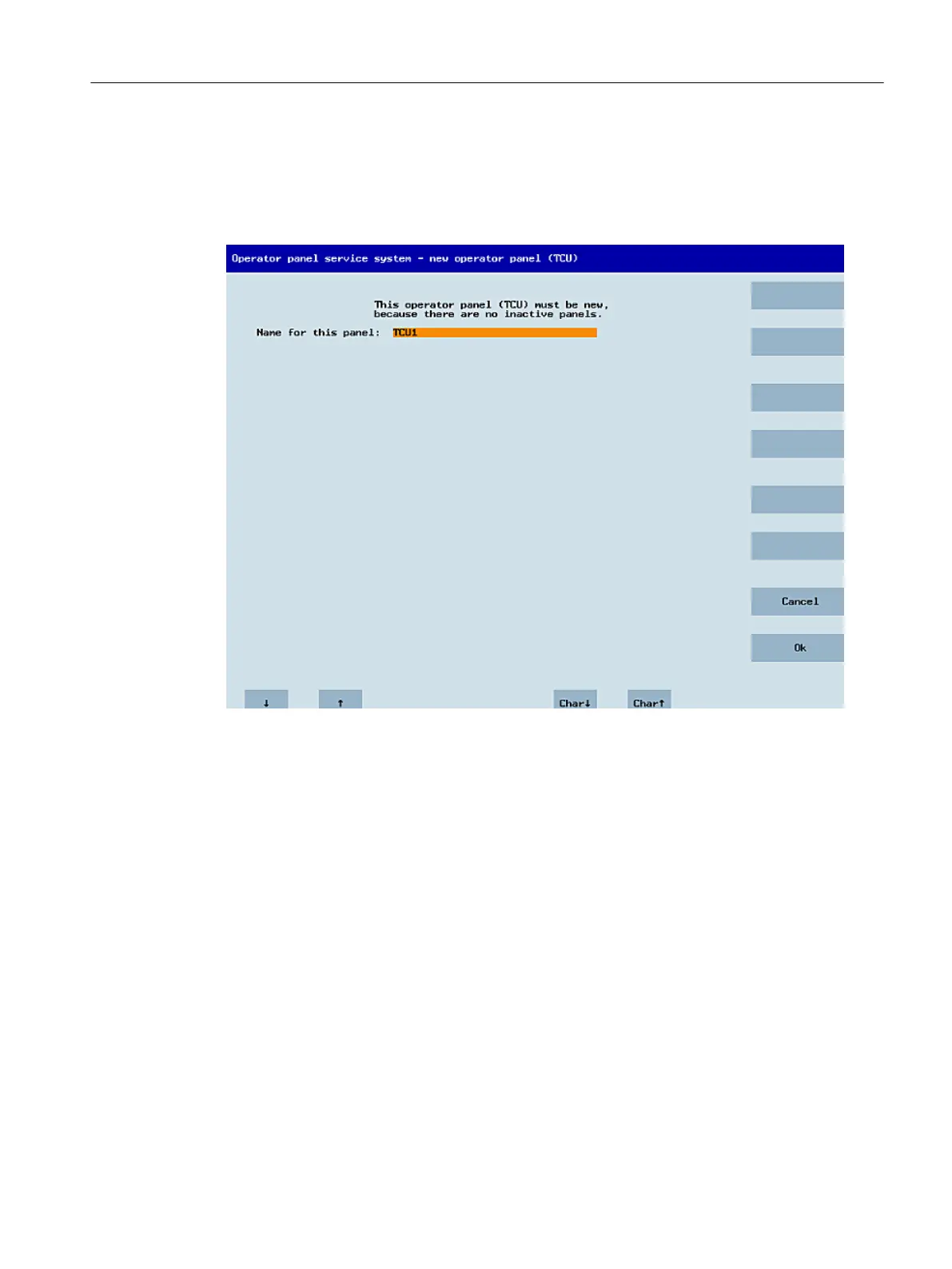

Figure4-16 TCU menu: Name of TCU
An available TCU name is suggested in the input eld, although the user is able to change
this. The default name is "TCU<N>", where <N> is the lowest number yet to be used. If,
however, the name is already allocated after the OK softkey has been pressed (which may
happen if a number of TCUs log on at the same time) and the suggestion has not changed, a
new and unused name will be specied.
If the name selected was still available, this will now be allocated, and the TCU settings can
still be adapted if required. To enable any changes to be made, a new dialog will appear
in which all the parameters have been pre-assigned their default values. You can make any
changes you like or just select "OK" to accept the existing values.
4.3.2.3 How to register a TCU on the system network
Preconditions
The boot server (NCU or PCU50) dened in the system network as a DHCP master, must be
switched on and be available in the network.
General information and networking
4.3Networking
Handheld Terminal HT 8
Equipment Manual, 02/2024, A5E52918633B AA 55
